FRONT MASTER CYLINDER

GS1100S 1983 (D) USA (E03)

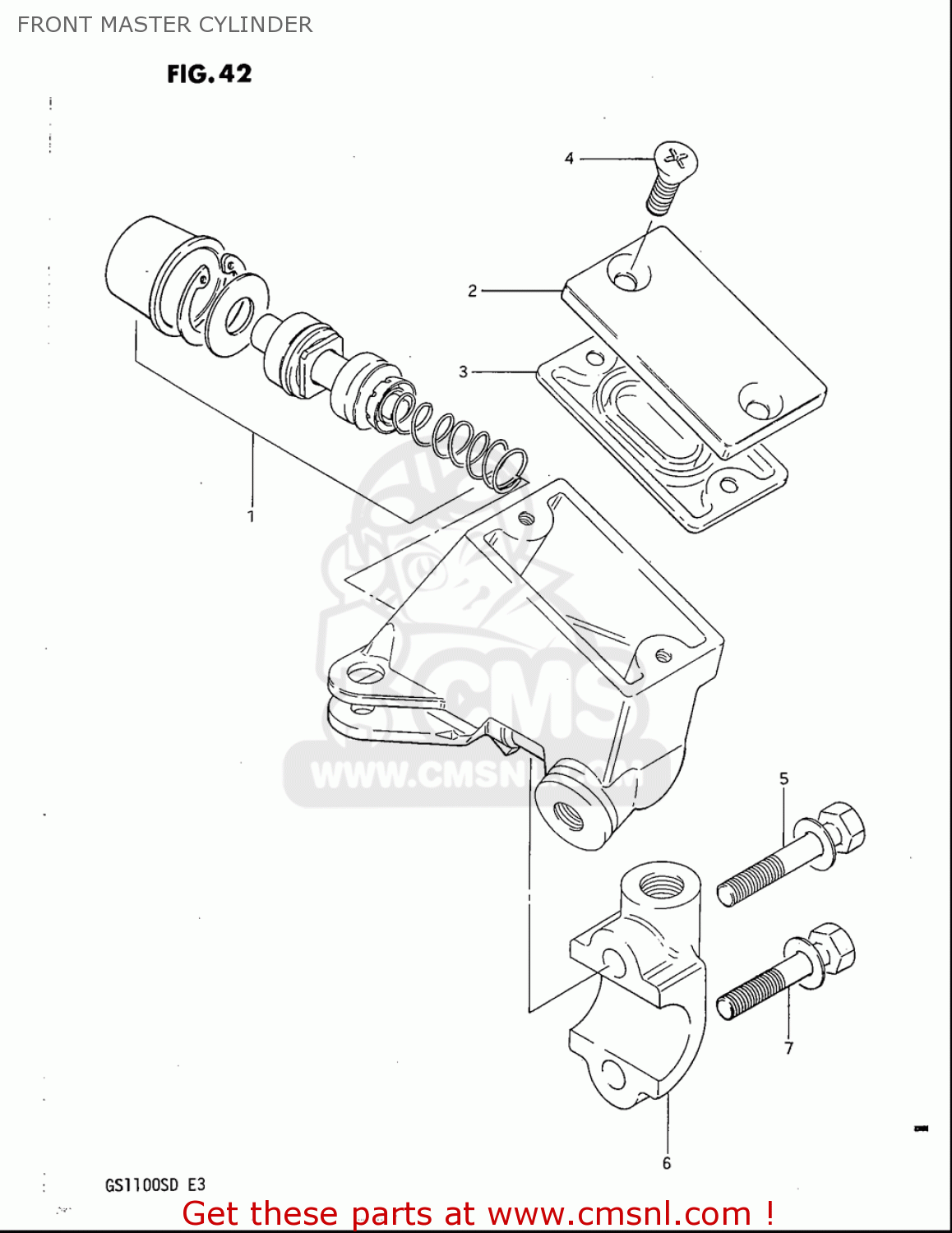

Front master cylinder diagram GS1100S 1983 (D) USA (E03)

FRONT MASTER CYLINDER GS1100S 1983 (D) USA (E03)

FRONT MASTER CYLINDER GS1100S 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

0

5960049350
ref: 0

CYLINDER ASSEMBLY,FRONT MASTER

€ 0.00

1

5960049830
ref: 1

PISTON & CUP SET

€ 46.50

3

5966749301
ref: 3

DIAPHRAGM

€ 15.50

4

5969149310
ref: 4

SCREW

€ 6.50

5

5969449310
ref: 5

BOLT,MASTER CYLINDER H

€ 3.50

6

5967149000
ref: 6

HOLDER

€ 22.50

7

5969349310
ref: 7

BOLT,MASTER CYLINDER H

€ 3.00
