FRONT FENDER

GS1100S 1983 (D) USA (E03)

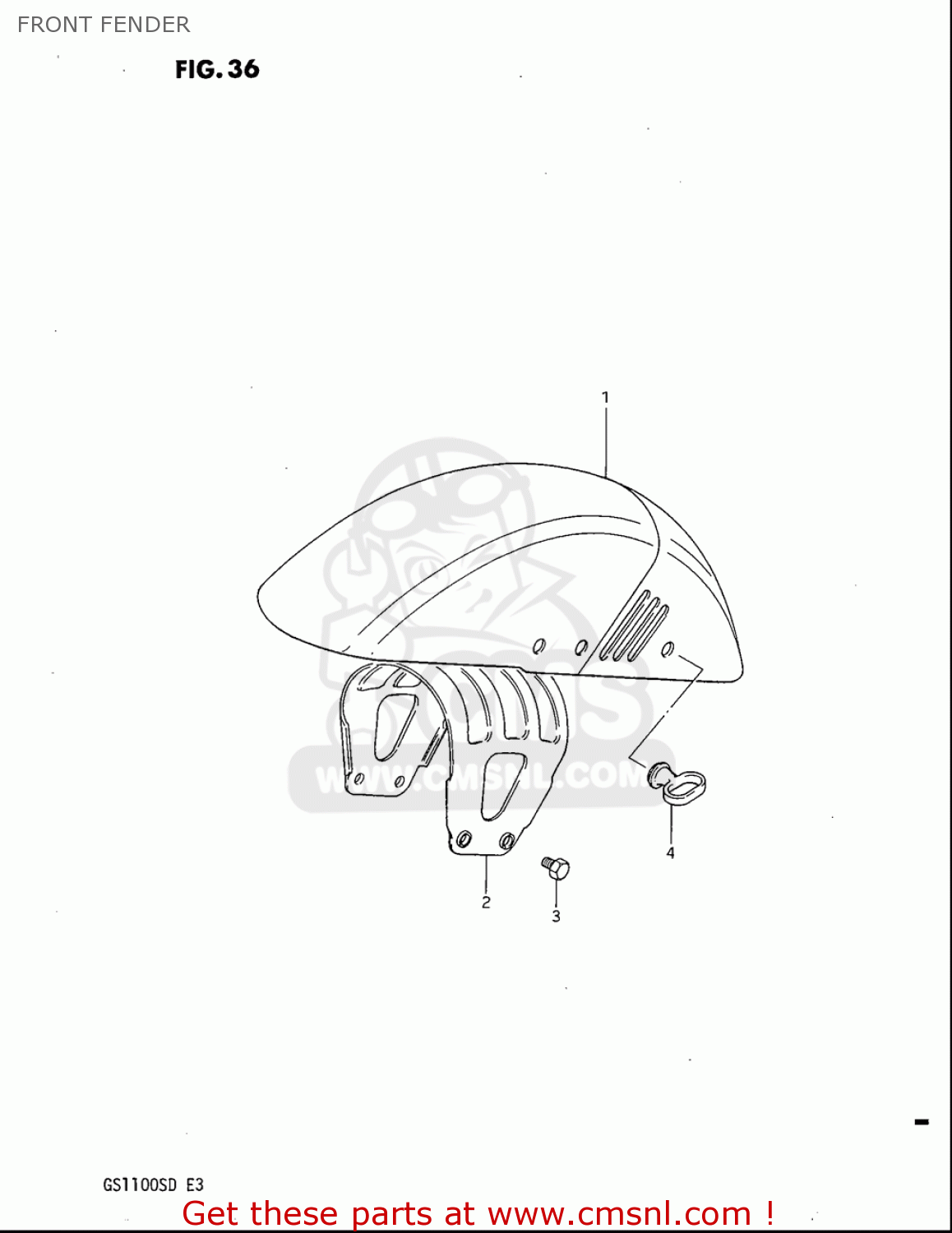

Front fender diagram GS1100S 1983 (D) USA (E03)

FRONT FENDER GS1100S 1983 (D) USA (E03)

FRONT FENDER GS1100S 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

531114930180A
ref: 1

FENDER,FR

€ 106.50

2

5311449301
ref: 2

BRACE,FR FENDER CTR

€ 50.00

3

0910008215
ref: 3

BOLT(8X16)

€ 3.00

3

0910008215
ref: 3

BOLT(8X16)

€ 3.00

4

5862121203A
ref: 4

GUIDE,CABLE

€ 7.50
