MUFFLER

GS1100S 1983 (D) USA (E03)

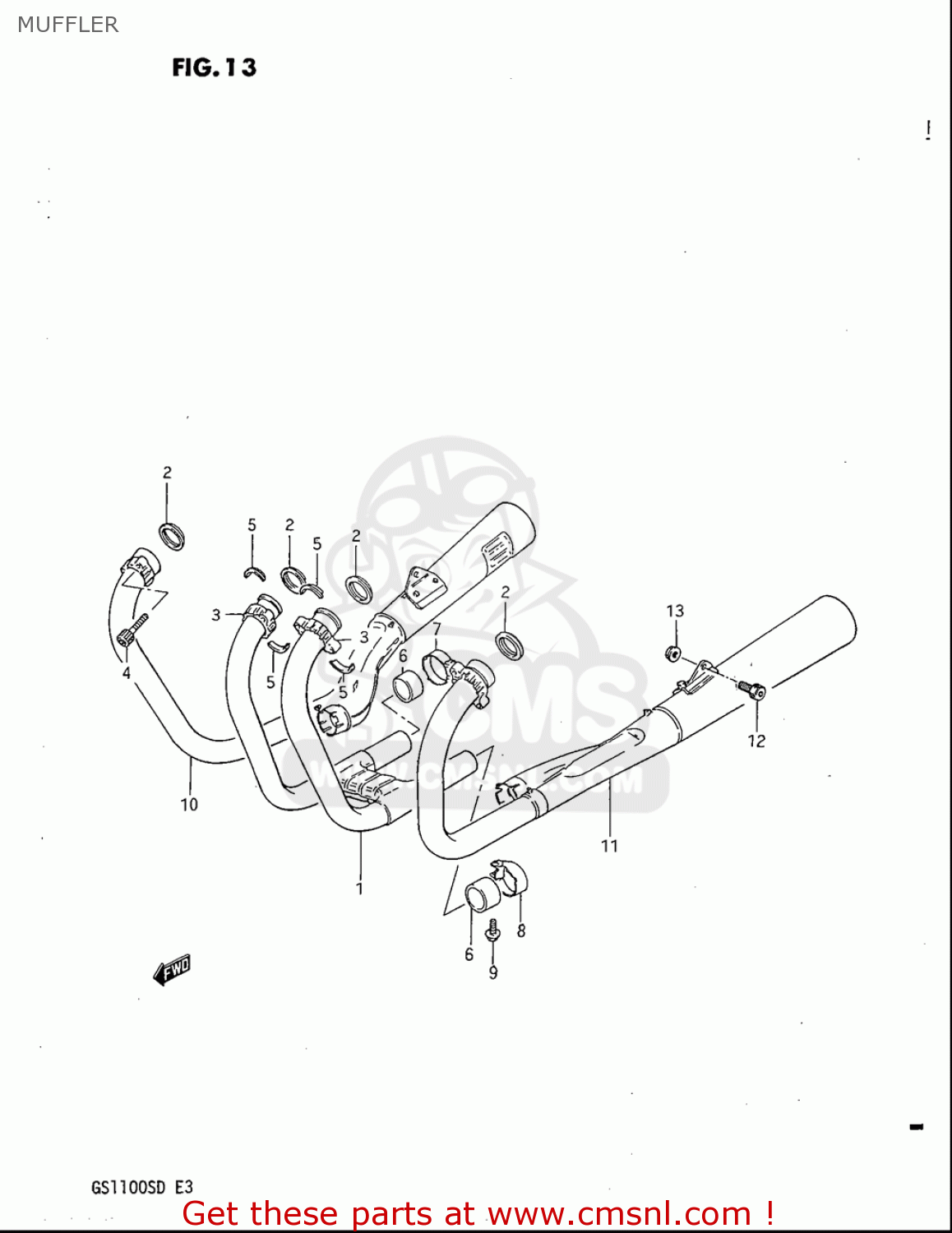

Muffler diagram GS1100S 1983 (D) USA (E03)

MUFFLER GS1100S 1983 (D) USA (E03)

MUFFLER GS1100S 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1410049303H01
ref: 1

PIPE,EXHAUST CTR

€ 341.00

2

1418101D00
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 8.00

4

0713008403
ref: 4

BOLT

€ 3.00

5

1415549000A
ref: 5

PLATE,EXHAUST P

€ 9.50

6

1477149010
ref: 6

CONNECTOR,MUFFLER

€ 26.00

7

1445945420
ref: 7

CLAMP,MUFFLER CONNECTOR,R

€ 12.00

8

1446945420
ref: 8

CLAMP,MUFFLER CONNECTOR,L

€ 14.50

9

015500825A
ref: 9

BOLT

€ 2.50

12

0713010257
ref: 12

BOLT

€ 3.00

13

0831620103
ref: 13

NUT

€ 3.50
