REAR SWINGING ARM

GS1100S 1983 (D) USA (E03)

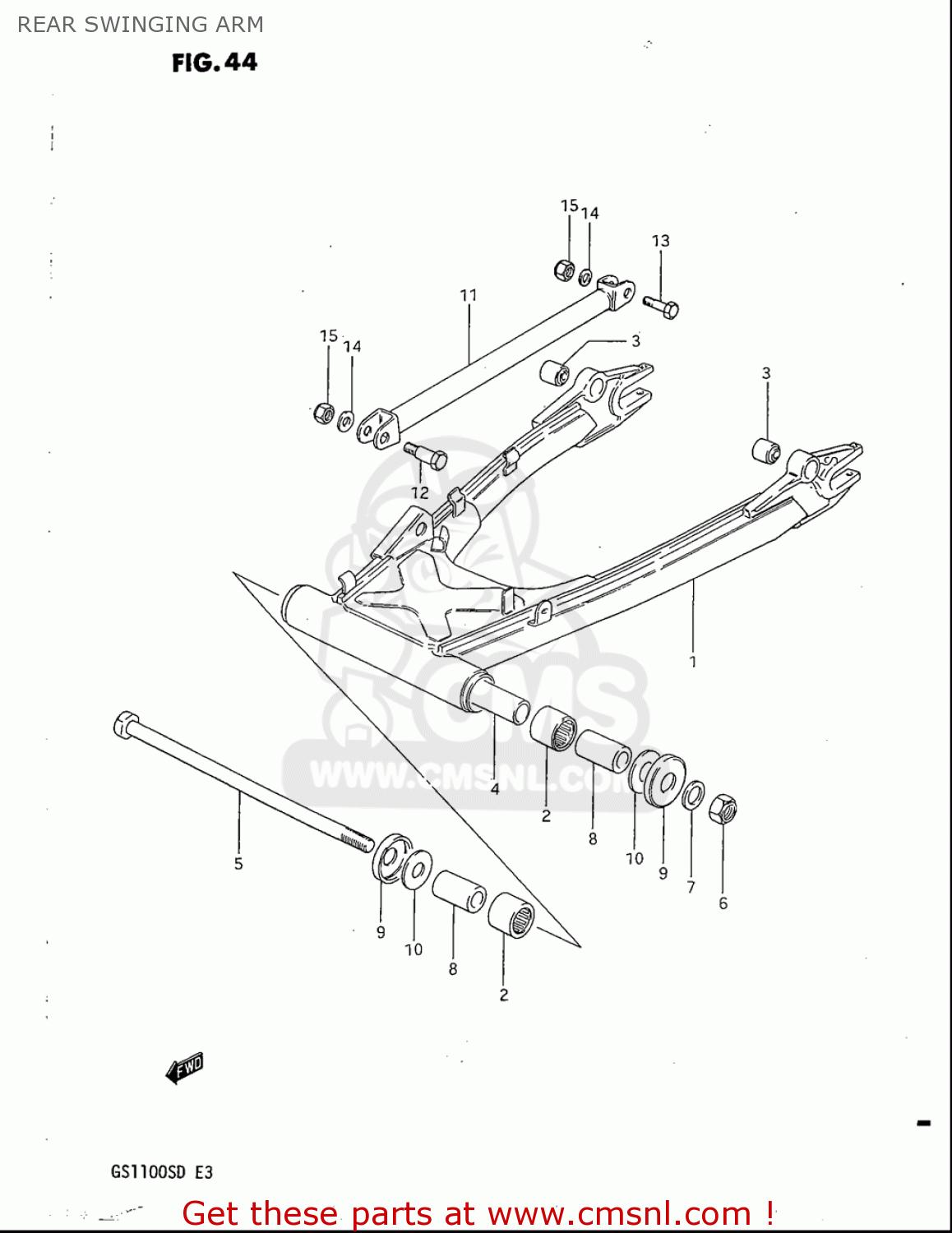

Rear swinging arm diagram GS1100S 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

0926325024
ref: 2

BEARING(25X33X30)

€ 31.50

0931910008
ref: 3

BUSH

€ 8.00

6128249000
ref: 4

SPACER,RR SWGARM PIVOT CTR

€ 24.00

6121149301
ref: 5

SHAFT,RR SWINGINGARM PIVOT

€ 45.00

0831921168
ref: 6

NUT 16MM

€ 5.00

0832201167
ref: 7

WASHER

€ 2.00

6125149000
ref: 8

SPACER,RR SWGARM PIVOT

€ 17.50

6126249201
ref: 9

COVER,RR SWINGINGARM PIVOT

€ 8.50

0821116381
ref: 10

WASHER

€ 2.50

6431049200019
ref: 11

LINK,RR TORQUE

€ 22.50

0911110022
ref: 12

BOLT M10X39

€ 8.00

0910110017
ref: 13

BOLT(10X39)

€ 5.00

0832201107
ref: 14

WASHER

€ 2.50

0915910027
ref: 15

NUT

€ 3.00
