CRANKCASE
GS1100S 1983 (D) USA (E03)

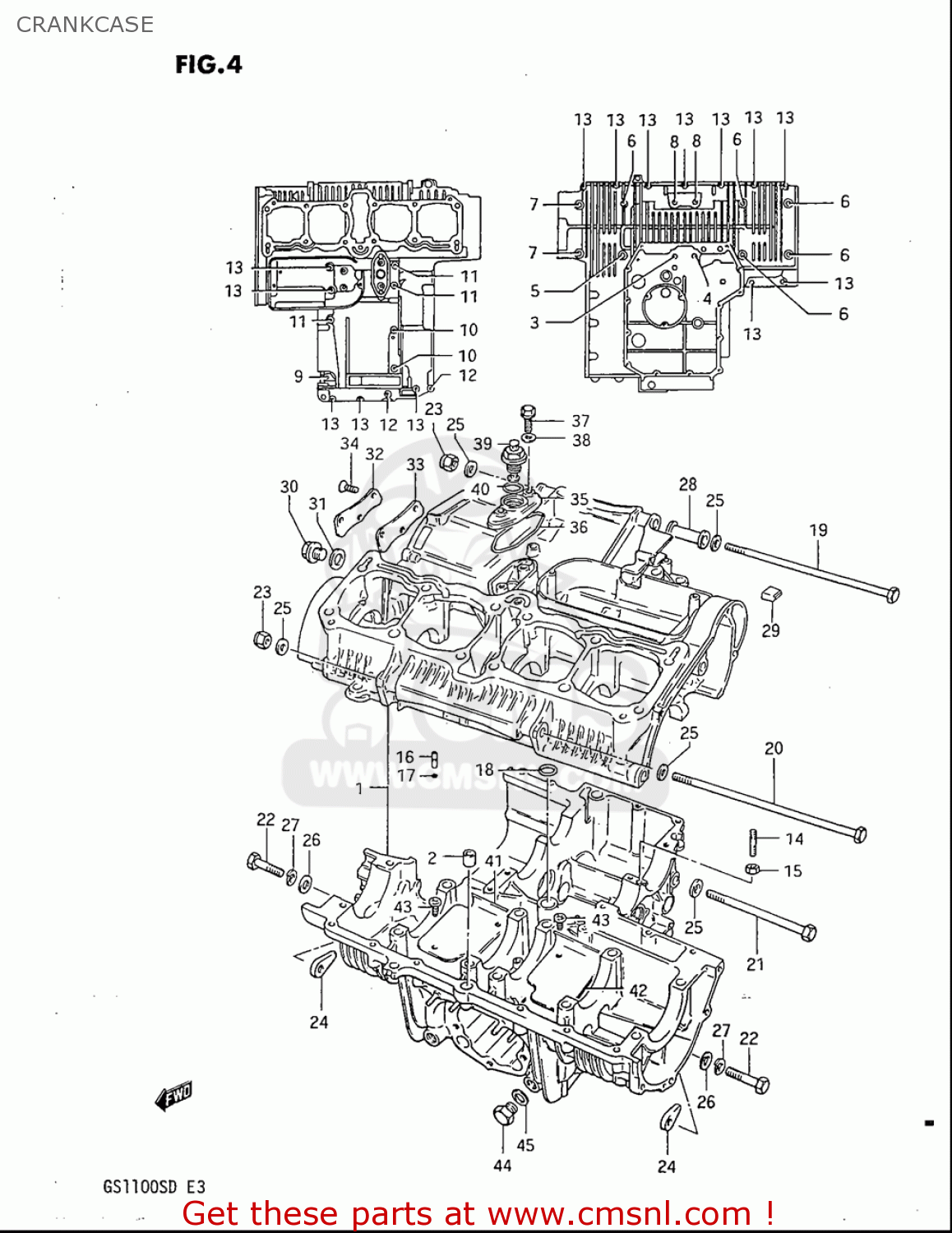

Crankcase diagram GS1100S 1983 (D) USA (E03)
CRANKCASE GS1100S 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130049826
ref: 1
CRANKCASE SET
€ 1,618.50
2
0421113189
ref: 2
PIN
€ 2.50
3
0910308059
ref: 3
BOLT 8X155
€ 7.50
4
0910308106
ref: 4
BOLT(8X125)
€ 8.00
5
0910308070
ref: 5
BOLT(8X100)
€ 5.00
6
0155008903
ref: 6
BOLT
€ 3.50
7
0155008653
ref: 7
BOLT
€ 3.00
8
015500860A
ref: 8
BOLT
€ 3.00
9
0155008503
ref: 9
BOLT
€ 2.50
10
0155006853
ref: 10
BOLT
€ 2.50
11
0155006753
ref: 11
BOLT
€ 2.50
12
0155006553
ref: 12
BOLT, HYDRAULIC UNIT NO.2
€ 2.00
13
015500640A
ref: 13
BOLT
€ 2.50
14
0142106358
ref: 14
STUD BOLT
€ 2.00
15
0831931067
ref: 15
NUT
€ 2.50
16
0936405005
ref: 16
UNION
€ 3.00
17
0928003003
ref: 17
O RING(D:1.05,ID:3.1)
€ 2.50
18
0928013001
ref: 18
O RING(D:3.2,ID:12.9)
€ 4.00
19
0910410014
ref: 19
BOLT(10X225)
€ 9.00
20
0910410013
ref: 20
BOLT(10X250)
€ 11.00
21
0910010078
ref: 21
BOLT(10X165)
€ 10.50
22
0910410015
ref: 22
BOLT 10X60
€ 3.00
23
0915910028
ref: 23
NUT (10MM)
€ 2.50
24
0915910020
ref: 24
NUT
€ 7.50
25
0832201107
ref: 25
WASHER
€ 2.50
26
0916010005
ref: 26
WASHER(10.5X20X3.2)
€ 2.00
27
0832101107
ref: 27
WASHER,LOCK
€ 2.00
28
1161049300
ref: 28
SPACER
€ 14.50
29
1125225000
ref: 29
PAD,CYLINDER
€ 5.00
30
0924714026
ref: 30
PLUG(14X12)
€ 3.50
31
0916814004
ref: 31
GASKET(14X19.2X2) (NAS)
€ 2.50
32
1139445000
ref: 32
CAP,OIL GALLERY
€ 6.50
33
1149745000H17
ref: 33
GASKET,OIL GALLERY CAP (NAS)
€ 13.00
34
0212206167
ref: 34
SCREW
€ 2.00
35
1644545000
ref: 35
HOUSING,OIL PRESSURE SWITCH
€ 28.00
36
1644845000
ref: 36
O RING,PRESSURE SWITCH HOUSING
€ 10.50
37
015500625A
ref: 37
BOLT
€ 2.50
38
0916806023
ref: 38
GASKET(5.8X13X1.2) (NAS)
€ 2.00
39
3782045061
ref: 39
SWITCH ASSY,OIL PRESSURE
€ 30.00
40
0928019001
ref: 40
O RING(D:1.9,ID:18.8)
€ 1.50
41
1152149201
ref: 41
PLATE,OIL SEPARATOR
€ 5.50
42
1152249201
ref: 42
PLATE,OIL SEPARATOR
€ 4.50
43
0211206087
ref: 43
SCREW
€ 2.00
44
0924714029
ref: 44
PLUG
€ 2.00
45
0916814004
ref: 45
GASKET(14X19.2X2) (NAS)
€ 2.50
