MASTER CYLINDER

GS1100S 1983 (D) USA (E03)

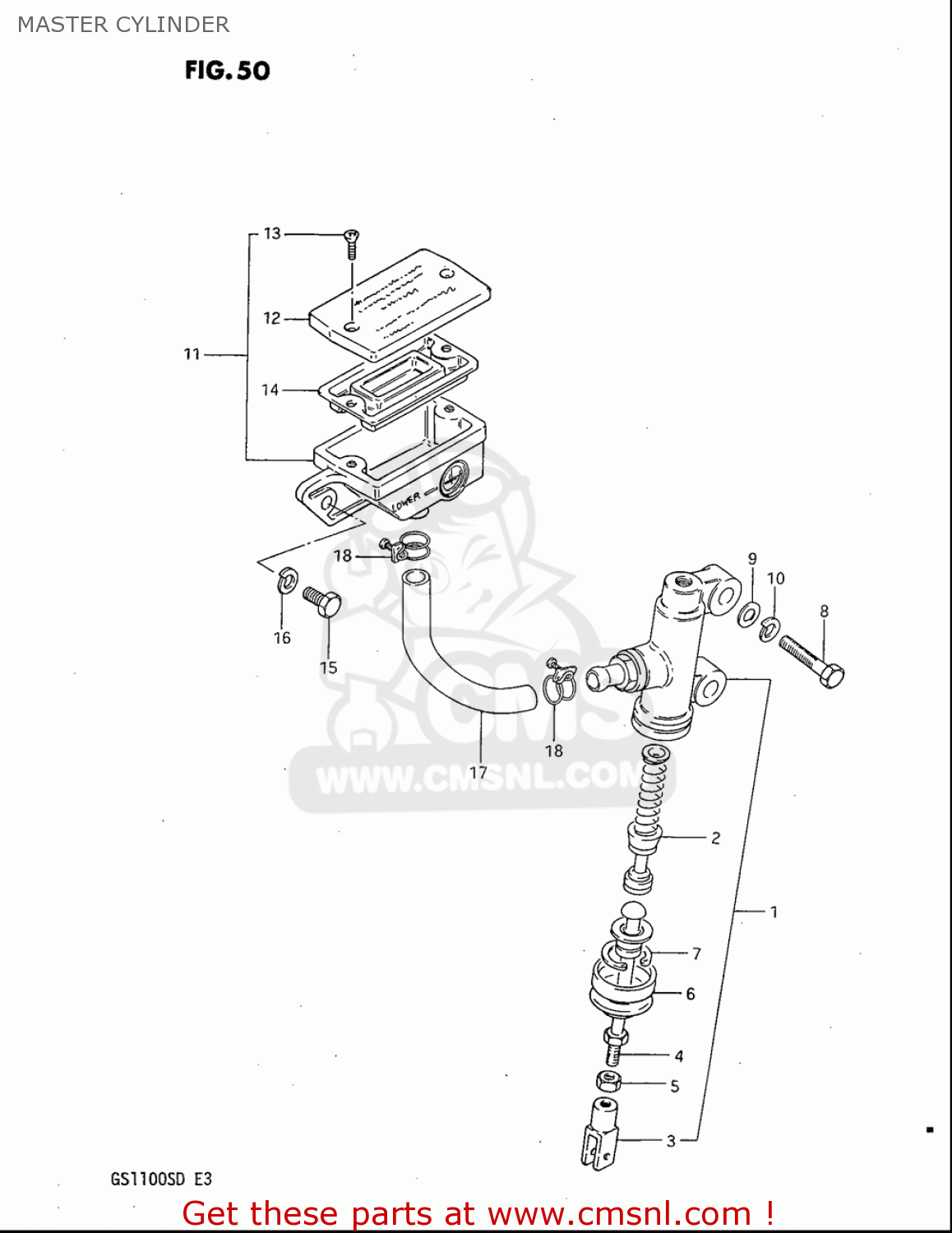

Master cylinder diagram GS1100S 1983 (D) USA (E03)

MASTER CYLINDER GS1100S 1983 (D) USA (E03)

MASTER CYLINDER GS1100S 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6960047011
ref: 1

CYLINDER ASSY,RR MASTER

€ 182.00

2

6960045820
ref: 2

PISTON/CUP SET

€ 53.00

3

6969247010
ref: 3

YOKE

€ 9.00

4

6967045010
ref: 4

LOD,PUSH

€ 11.50

5

6969347010
ref: 5

NUT,MASTER CYLINDER

€ 1.50

6

6969145001
ref: 6

BOOT

€ 6.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

0150008307
ref: 8

BOLT

€ 2.50

9

0832201087
ref: 9

WASHER

€ 2.00

10

0832101087
ref: 10

WASHER,LOCK

€ 2.00

12

5966941C00
ref: 12

CAP

€ 30.00

13

6968949300
ref: 13

SCREW

€ 1.50

14

5966749460
ref: 14

5966749460

15

0150006167
ref: 15

BOLT

€ 3.00

16

0832101067
ref: 16

WASHER,LOCK

€ 2.50

17

6973149300
ref: 17

HOSE,RESERVOIR TANK

€ 5.50

18

0940016304
ref: 18

CLAMP

€ 4.50
