STARTER CLUTCH

GS1100S 1983 (D) USA (E03)

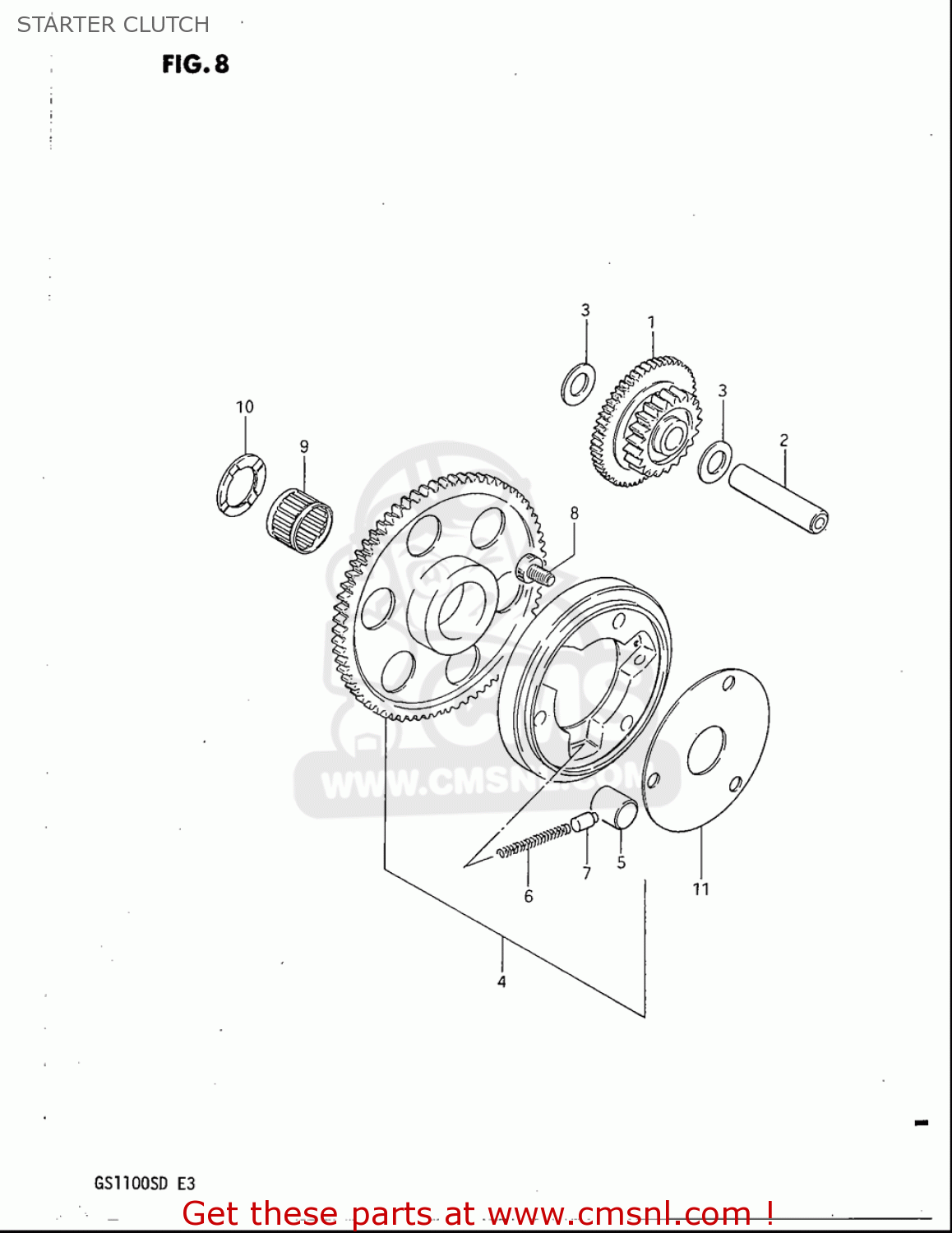

Starter clutch diagram GS1100S 1983 (D) USA (E03)

STARTER CLUTCH GS1100S 1983 (D) USA (E03)

STARTER CLUTCH GS1100S 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261149202
ref: 1

GEAR,STARTER IDLE

€ 68.00

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

0916013003
ref: 3

WASHER(13.3X25X0.85)

€ 2.50

4

1260049826
ref: 4

CLUTCH SET,STARTER

€ 309.00

5

0926115001
ref: 5

ROLLER(15X13)

€ 3.50

6

0944004015
ref: 6

SPRING

€ 2.50

7

1263331000
ref: 7

PIECE,PUSH

€ 9.00

8

0713008163
ref: 8

BOLT

€ 3.00

9

0926325008
ref: 9

BEARING(25X31X20)

€ 17.00

10

0916025019
ref: 10

WASHER(25X38X2.5)

€ 10.00
