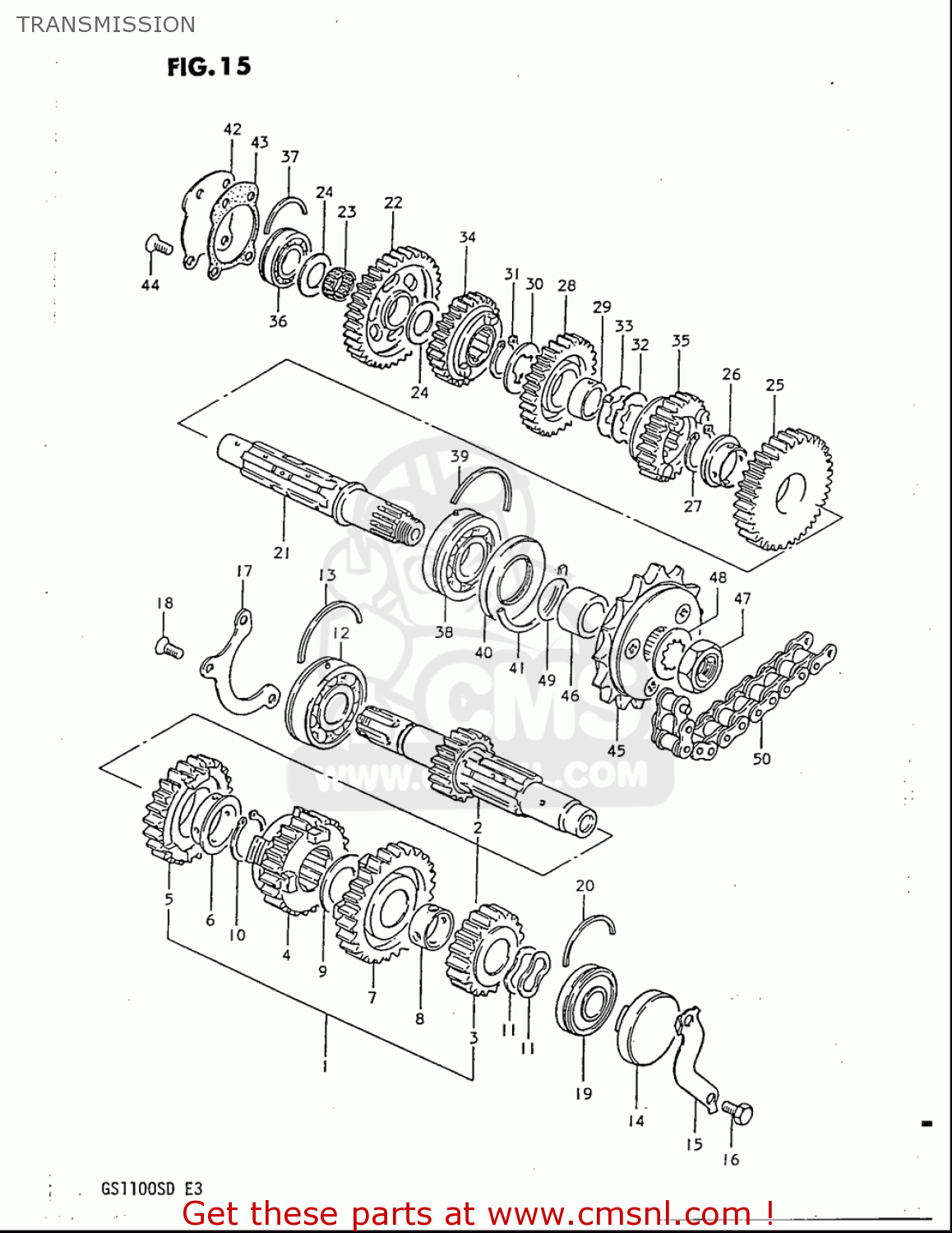

TRANSMISSION

ref

part #

description

quantity

2

2412149202
ref: 2

SHAFT,COUNTER (NT:14)

€ 207.50

3

2422149202
ref: 3

GEAR,2ND DRIVE(NT:18)

€ 118.50

4

2423149200
ref: 4

GEAR,3RD DRIVE(NT:21)

€ 112.50

5

2424100A00
ref: 5

GEAR,4TH DRIVE(NT:24)

€ 125.50

6

0930128001
ref: 6

BUSH(28X32X2)

€ 19.50

7

2425100A00
ref: 7

GEAR,5TH DRIVE(NT:26)

€ 207.00

8

2431202F00
ref: 8

BUSH

€ 19.50

9

0821122321
ref: 9

WASHER

€ 3.00

10

083313128A
ref: 10

CIRCLIP

€ 2.50

11

0916420004
ref: 11

WASHER

€ 5.00

12

0926225105
ref: 12

BEARING(25X62X17)

€ 59.50

13

0939062012
ref: 13

C RING

€ 5.00

14

0924147004
ref: 14

PLUG

€ 12.00

15

2311745000
ref: 15

RETAINER,CL PUSH ROD OIL SEAL

€ 14.00

16

0150006127
ref: 16

BOLT

€ 2.00

17

2474145000
ref: 17

RETAINER,CNTR SHAFT BEARING

€ 8.00

18

0212206167
ref: 18

SCREW

€ 2.00

19

0926220044
ref: 19

BEARING(20X47X14)

€ 30.00

20

0939047003
ref: 20

C RING

€ 3.00

21

2413149202
ref: 21

SHAFT,DRIVE

€ 289.00

22

2431149200
ref: 22

GEAR,FIRST DRIVEN (NT:35)

€ 115.00

23

0926320018
ref: 23

BEARING(20X24X10).8

€ 14.00

24

0821120341
ref: 24

WASHER

€ 2.00

25

2432100A00
ref: 25

GEAR,2ND DRIVEN(NT:32)

€ 127.00

26

0930128001
ref: 26

BUSH(28X32X2)

€ 19.50

27

083313128A
ref: 27

CIRCLIP

€ 2.50

28

2433149202
ref: 28

GEAR,3RD DRIVEN(NT:29)

€ 139.50

29

2433249000
ref: 29

BUSH,3RD DRIVEN GEAR

€ 13.50

30

0916728001
ref: 30

WASHER,LOCK

€ 3.00

31

083313128A
ref: 31

CIRCLIP

€ 2.50

32

0916728002
ref: 32

WASHER,LOCK

€ 3.00

33

0916928001
ref: 33

WASHER

€ 3.00

34

2434100A00
ref: 34

GEAR,4TH DRIVEN(NT:27)

€ 118.50

35

2435100A00
ref: 35

GEAR,5TH DRIVEN(NT:25)

€ 139.50

36

0926220044
ref: 36

BEARING(20X47X14)

€ 30.00

37

0939047003
ref: 37

C RING

€ 3.00

38

0926225105
ref: 38

BEARING(25X62X17)

€ 59.50

39

0939062012
ref: 39

C RING

€ 5.00

40

0928332012
ref: 40

SEAL,OIL(32X62X7)

€ 19.00

41

0939062008
ref: 41

C RING

€ 3.50

42

2476145000
ref: 42

PLATE,DRIVE SHAFT

€ 4.50

43

2476245000H17
ref: 43

GASKET,DRIVE SHAFT PLATE (NAS)

€ 2.50

44

0212206167
ref: 44

SCREW

€ 2.00

45

2751049012
ref: 45

SPROCKET,ENGINE(NT:15)

€ 62.50

46

0918025052
ref: 46

SPACER(25X32X18.6)

€ 9.00

47

0915920004
ref: 47

NUT

€ 12.00

48

0916725019
ref: 48

WASHER,LOCK

€ 2.50

49

0928025001
ref: 49

O RING(D:1,ID:24.5)

€ 2.50

50

2760049210
ref: 50

CHAIN,DRIVE(DID630YL,96LE)

€ 266.50
