CLUTCH
GS300L 1983 (D) USA (E03)

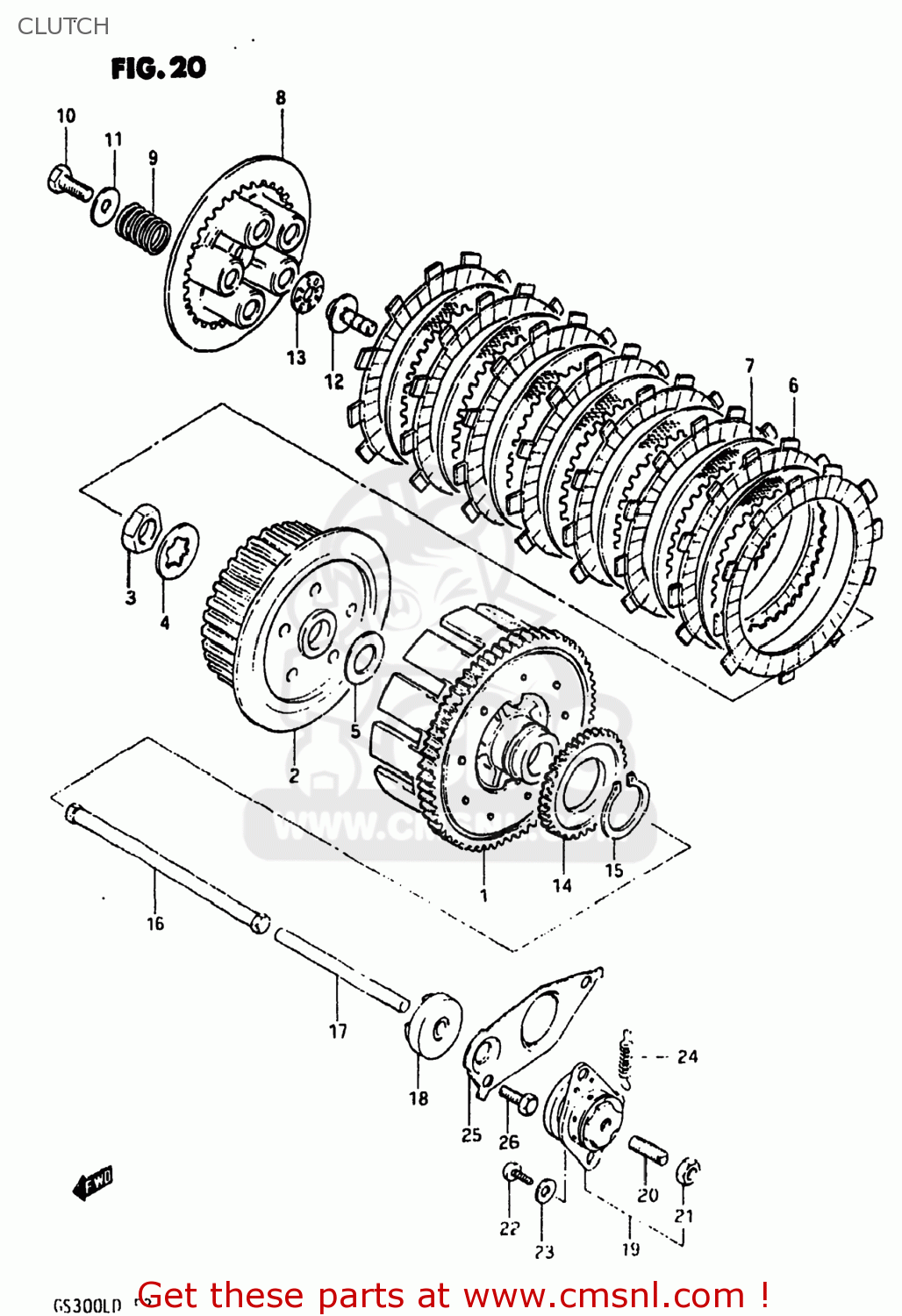

Clutch diagram GS300L 1983 (D) USA (E03)
CLUTCH GS300L 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120011501
ref: 1
21200-11502
GEAR ASSEMBLY,PRIMARY DRIVE
€ 205.50
2
2141111400
ref: 2
HUB,CLUTCH SLEEVE
€ 63.00
3
0914016001
ref: 3
NUT
€ 4.50
4
0916916003
ref: 4
WASHER
€ 2.00
5
0821120352
ref: 5
WASHER
€ 3.00
6
2144111900
ref: 6
21441-22A01
PLATE,CLUTCH DRIVE (MCA)
€ 11.00
7
2145111900
ref: 7
21451-01B40
PLATE,CLUTCH DRIVEN (NAS)
€ 4.50
8
2146246901
ref: 8
21462-02B41
DISC,CLUTCH PRESSURE
€ 21.00
9
0944015014
ref: 9
SPRING
€ 4.00
10
0910005002
ref: 10
BOLT(5X16)
€ 2.00
11
0916005017
ref: 11
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
12
2312111400
ref: 12
23121-39101
ROD,CLUTCH RELEASE
€ 14.00
13
0926310002
ref: 13
BEARING(10X22X2.8)
€ 8.50
14
1632111400
ref: 14
GEAR,OIL PUMP DRIVE
€ 41.00
15
0833131389
ref: 15
08331-31383
CIRCLIP
€ 2.50
16
2311011500
ref: 16
23110-11501
ROD,CLUTCH PUSH
€ 13.00
17
2311144110
ref: 17
23111-05A01
ROD,CLUTCH PUSH
€ 13.50
18
0928506012
ref: 18
SEAL,OIL(6X31X10)
€ 9.50
19
2320044101
ref: 19
SCREW ASSY,CLUTCH RELEASE
€ 63.00
20
0913406001
ref: 20
09134-06010
SCREW
€ 3.00
21
0831022068
ref: 21
08310-00067
NUT 6MM
€ 2.50
22
0311106168
ref: 22
03111-06163
SCREW
€ 1.50
23
0832221068
ref: 23
08322-01067
WASHER
€ 2.00
24
0944308001
ref: 24
SPRING
€ 3.00
25
2311711401
ref: 25
PLATE,CLUTCH PUSH ROD
€ 7.00
26
0110706128
ref: 26
01500-06127
BOLT
€ 2.00
