FOOTREST
GS300L 1983 (D) USA (E03)

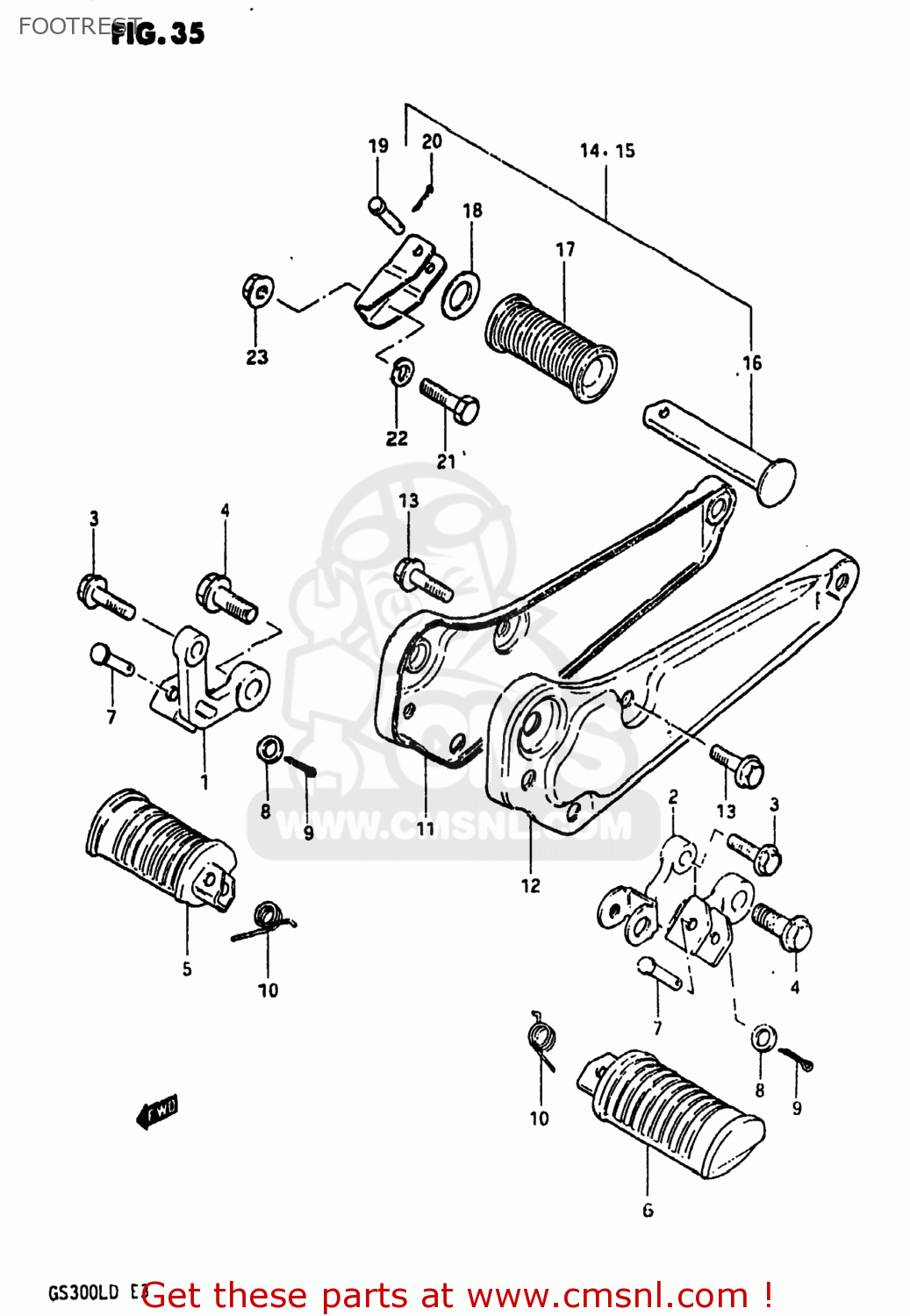

Footrest diagram GS300L 1983 (D) USA (E03)
FOOTREST GS300L 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351011900
ref: 1
BAR,FRONT FOOTREST
€ 26.00
2
4352011900
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 34.50
3
0152708307
ref: 3
01550-08307
BOLT
€ 3.50
4
0152710308
ref: 4
01550-10307
BOLT
€ 3.50
5
4355049002
ref: 5
43550-37301
RUBBER,FRONT FOOTREST
€ 22.50
6
4356049002
ref: 6
43560-37301
FOOTREST
€ 22.50
7
0920008002
ref: 7
PIN
€ 2.00
8
0832211088
ref: 8
08322-01087
WASHER
€ 2.00
9
0411120208
ref: 9
04111-2020A
PIN 20X20
€ 1.50
10
0944814012
ref: 10
SPRING
€ 3.00
11
4381044102
ref: 11
BRACKET,MUFFLER,RIGHT
€ 54.50
12
4382044102
ref: 12
BRACKET,MUFFLER,LEFT
€ 46.00
13
0152710207
ref: 13
01550-1020A
BOLT
€ 3.00
14-1
4360044300
ref: 14-1
FOOTREST ASSEMBLY,REAR,RIGHT
€ 10.00
14-2
4360011900
ref: 14-2
FOOTREST ASSEMBLY,PILLION
€ 9.00
15-1
4370044300
ref: 15-1
FOOTREST ASSEMBLY,REAR,LEFT
€ 10.50
15-2
4370011900
ref: 15-2
FOOTREST ASSEMBLY,LEFT
€ 13.50
16-1
4361044000
ref: 16-1
BAR,PILLION FOOTREST
€ 14.50
16-2
4361038300
ref: 16-2
BAR,PILLION FOOTREST
€ 21.50
17
4361244100
ref: 17
43612-33200
RUBBER,PILLION FOOTREST
€ 4.50
18
0916019006
ref: 18
09160-19024
WASHER (19.5X32X2)
€ 2.00
19
0920006010
ref: 19
PIN
€ 2.50
20
0411120208
ref: 20
04111-2020A
PIN 20X20
€ 1.50
21
0110710358
ref: 21
01500-1035B
BOLT,M10X1.25X
€ 2.50
22
0832121108
ref: 22
08321-01107
LOCK WASHER
€ 2.00
23
0831616108
ref: 23
08316-10107
NUT
€ 2.00
