REAR FENDER

GS300L 1983 (D) USA (E03)

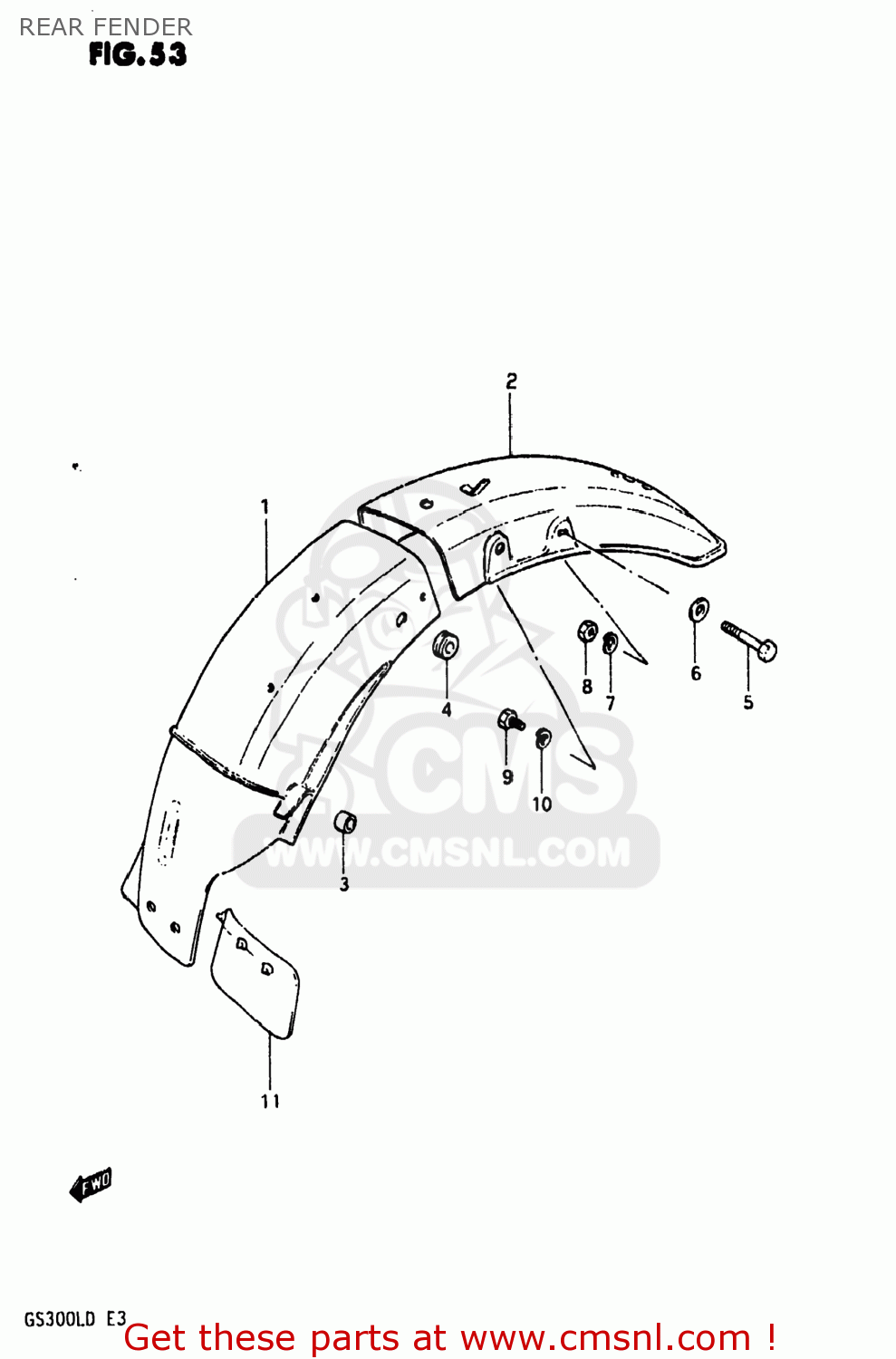

Rear fender diagram GS300L 1983 (D) USA (E03)

REAR FENDER GS300L 1983 (D) USA (E03)

REAR FENDER GS300L 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311244120
ref: 1
63112-44X50

FENDER,REAR

€ 51.00

2-1

6311044300
ref: 2-1
63110-44301

FENDER,REAR

€ 261.50

2-2

6311044301
ref: 2-2

FENDER,REAR

€ 261.50

3

0932905003
ref: 3

CUSHION

€ 4.50

4

0932005006
ref: 4
09320-06504

CUSHION

€ 4.00

5

0120408657
ref: 5

BOLT

€ 3.00

6

0832211088
ref: 6
08322-01087

WASHER

€ 2.00

7

0832121088
ref: 7
08321-01087

LOCK WASHER

€ 2.00

8

0831012088
ref: 8
08310-00087

NUT

€ 2.00

9

0110708168
ref: 9
01500-0816B

BOLT

€ 2.00

10

0832121088
ref: 10
08321-01087

LOCK WASHER

€ 2.00

11

6341131900
ref: 11

GUIDE,RR FENDER MUD

€ 8.00
