FRAME
GS300L 1983 (D) USA (E03)

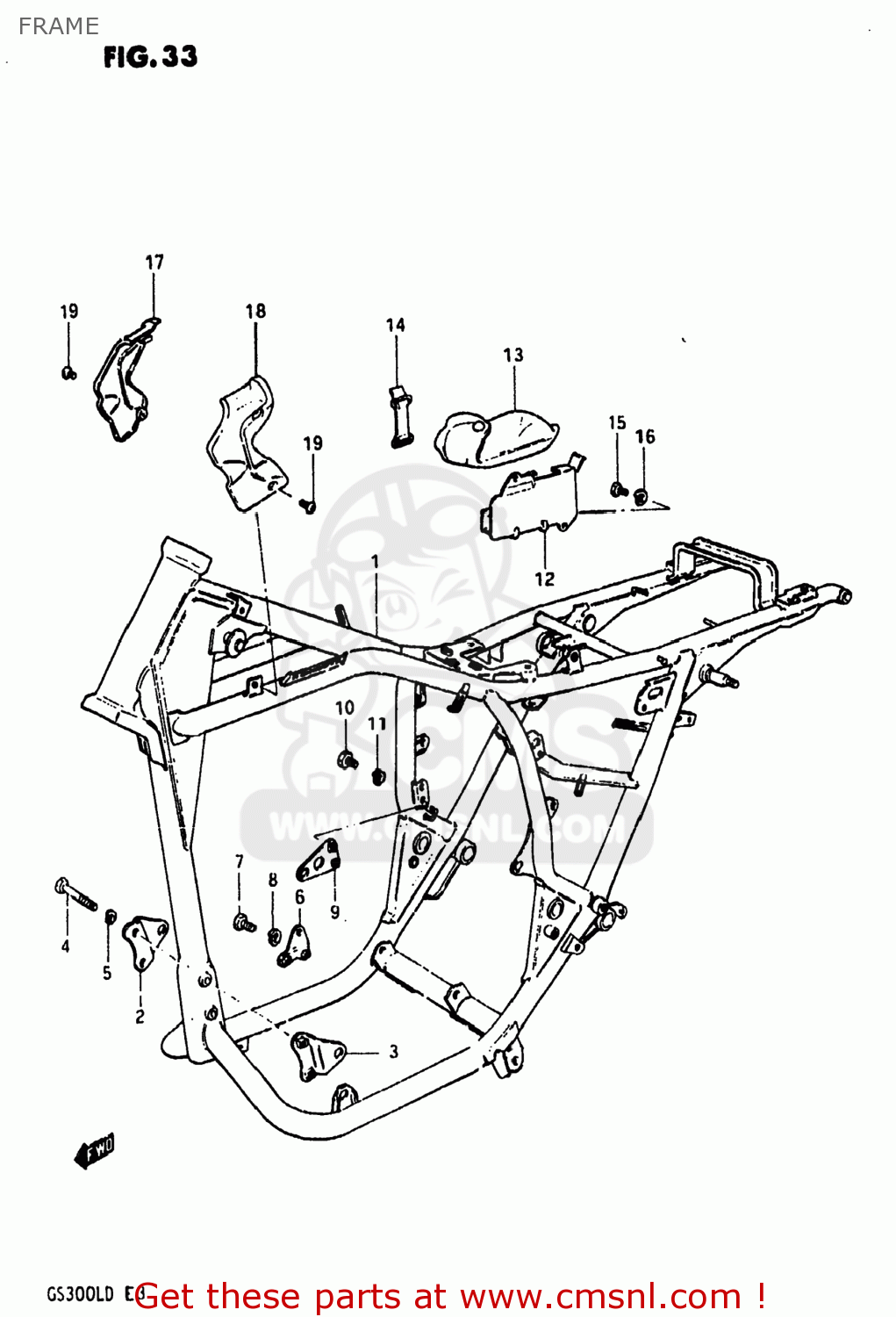

Frame diagram GS300L 1983 (D) USA (E03)
FRAME GS300L 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110011900019
ref: 1-1
41100-11911-019
FRAME
€ 369.00
1-2
4110011910019
ref: 1-2
41100-11911-019
FRAME
€ 369.00
2
4199111500019
ref: 2
PLATE,MOUNTING NO.1,RIGHT
€ 0.00
3
4192011500019
ref: 3
PLATE,ENGINE MOUNTING
€ 0.00
4
0110708608
ref: 4
01500-0860B
BOLT
€ 2.50
5
0832121088
ref: 5
08321-01087
LOCK WASHER
€ 2.00
6
4192044110019
ref: 6
PLATE,MOUNTING NO.2,LEFT
€ 0.00
7
0110708168
ref: 7
01500-0816B
BOLT
€ 2.00
8
0832121088
ref: 8
08321-01087
LOCK WASHER
€ 2.00
9
4197011500019
ref: 9
PLATE,MOUNTING NO.4,LEFT
€ 12.00
10
0110708168
ref: 10
01500-0816B
BOLT
€ 2.00
11
0832121088
ref: 11
08321-01087
LOCK WASHER
€ 2.00
12
4743044400
ref: 12
47430-44401
HOLDER,TOOL
€ 11.50
13
0980006800
ref: 13
09800-06801
TOOL SET
€ 52.00
14
0946200072
ref: 14
BAND
€ 3.50
15
0110706108
ref: 15
01500-06107
BOLT
€ 2.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
5187611900
ref: 17
COVER,FRAME HEAD,RIGHT
€ 6.50
18
5188611900
ref: 18
COVER,FRAME HEAD,LEFT
€ 7.50
19
0214205105
ref: 19
02142-0510B
SCREW
€ 2.50
