GENERATOR
GS300L 1983 (D) USA (E03)

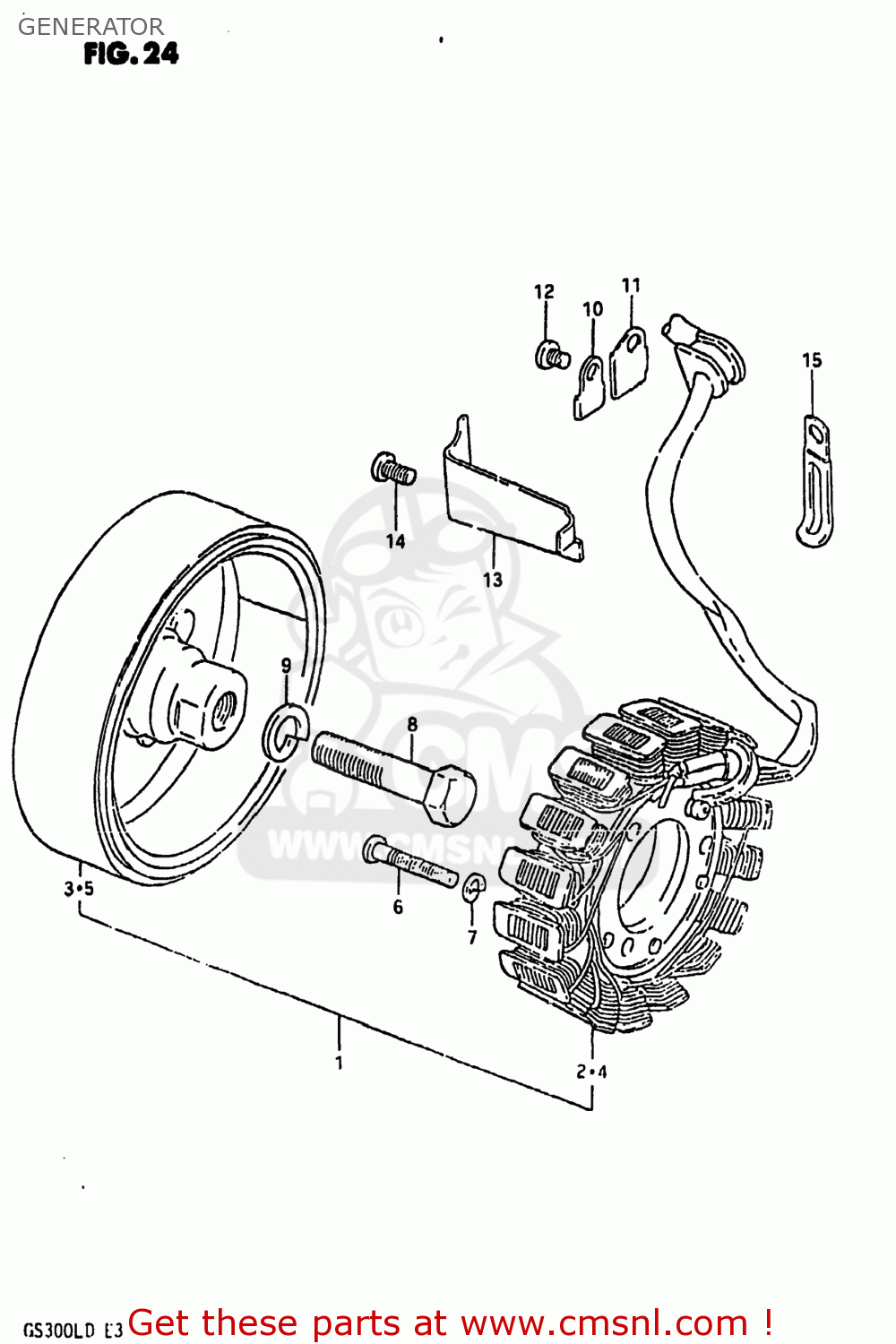

Generator diagram GS300L 1983 (D) USA (E03)
GENERATOR GS300L 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3140045020
ref: 1
31401-45030
GENERATOR ASSEMBLY
€ 719.50
2
3140145020
ref: 2
31401-45030
STATOR ASSEMBLY
€ 334.50
3
3140245020
ref: 3
31402-45030
ROTOR ASSEMBLY
€ 385.00
4
3140145030
ref: 4
STARTER ASSY
€ 334.50
5
3140245030
ref: 5
ROTOR ASSY
€ 385.00
6
0211205308
ref: 6
02112-0530A
SCREW
€ 1.50
7
0832121058
ref: 7
08321-0105A
LOCK WASHER
€ 2.00
8
0110712458
ref: 8
01500-12457
BOLT 12X45
€ 5.50
9
0832131128
ref: 9
08321-01127
WASHER,LOCK 12
€ 2.50
10
3149745000
ref: 10
CLAMP,GENERATOR LEAD WIRE
€ 1.50
11
3149711400
ref: 11
31497-11401
CLAMP,GENERATOR LEAD WIRE
€ 1.50
12
0211205068
ref: 12
09125-05122
SCREW
€ 4.00
13
3149845000
ref: 13
CLAMP,GENERATOR LEAD WIRE
€ 2.00
14
0211206108
ref: 14
02112-06107
SCREW
€ 1.50
15
0940406401
ref: 15
09404-06432
CLAMP L:35
€ 2.50
