OIL FILTER - OIL PUMP
GS300L 1983 (D) USA (E03)

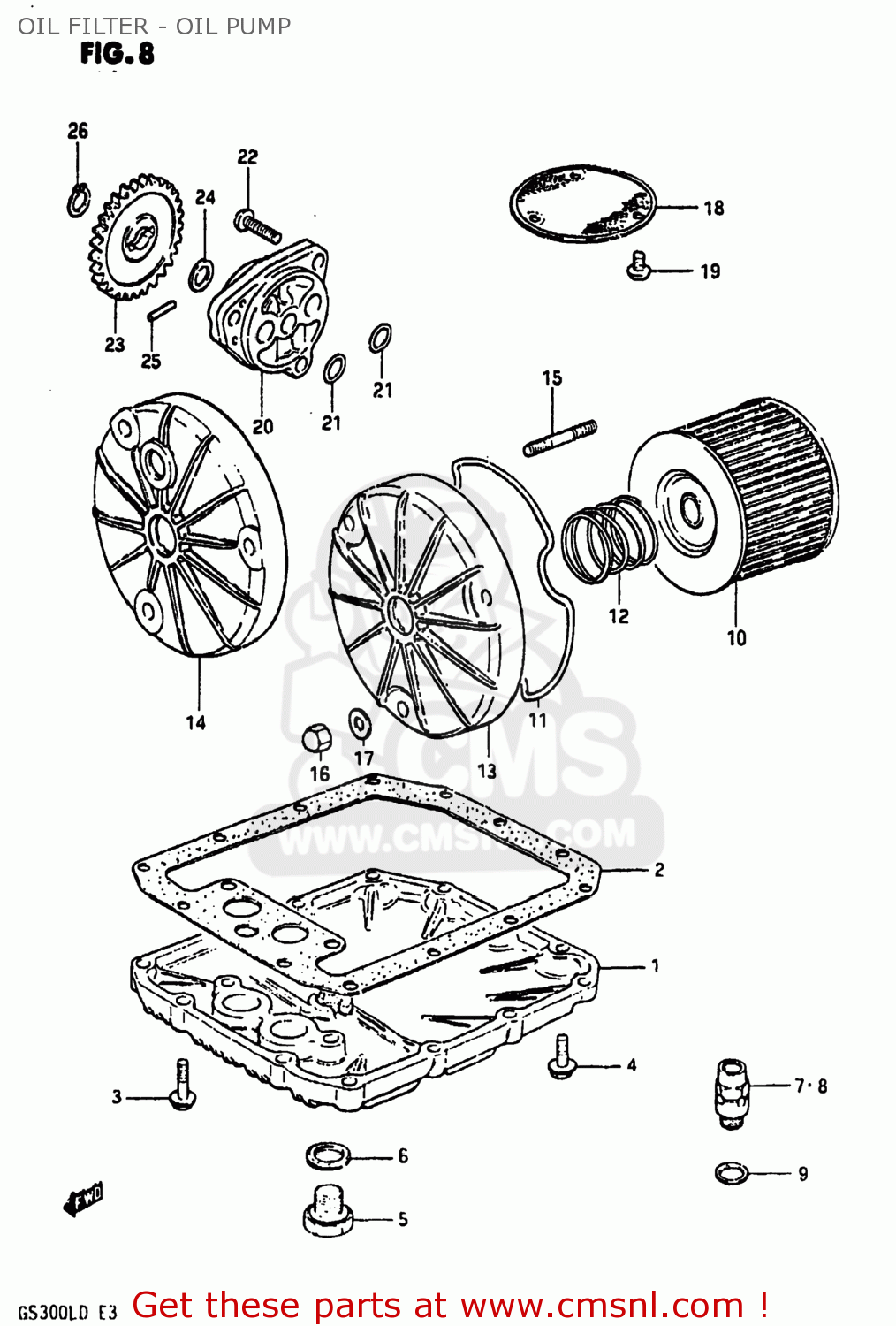

Oil filter - oil pump diagram GS300L 1983 (D) USA (E03)
OIL FILTER - OIL PUMP GS300L 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1151111400
ref: 1-1
PAN,OIL
€ 57.00
1-2
1151111410
ref: 1-2
11511-11400
PAN,OIL
€ 57.00
2
1148911400
ref: 2
11489-11400-H17
GASKET,OIL PAN (MCA)
€ 8.50
3-1
0151706258
ref: 3-1
01550-06257
BOLT
€ 2.50
3-2
0151706255
ref: 3-2
01550-0625A
BOLT
€ 2.50
4-1
0151706208
ref: 4-1
01550-06207
BOLT,REAR
€ 2.50
4-2
0151706205
ref: 4-2
01550-0620A
BOLT
€ 2.50
5
0924714001
ref: 5
09247-14002
PLUG
€ 5.00
6
0916814004
ref: 6
GASKET(14X19.2X2) (NAS)
€ 2.50
7
1644034301
ref: 7
16440-11D00
REGULATOR ASSEMBLY,ENGINE
€ 37.00
8
1644033300
ref: 8
16440-11D00
VALVE ASSEMBLY,OIL RELIEF
€ 37.00
9
0821214181
ref: 9
WASHER
€ 2.00
10
1651045040
ref: 10
FILTER ASSY,ENGINE OIL
€ 7.50
11
1651845000
ref: 11
O RING,OIL FILTER CHAMBER CAP
€ 7.50
12
0944032004
ref: 12
SPRING
€ 13.50
13
1651245101
ref: 13
CAP,ENGINE OIL FILTER
€ 37.50
14
1651244410
ref: 14
16512-45D00
CAP,OIL FILTER
€ 47.00
15
0142106208
ref: 15
01421-0620A
STUD 6X20
€ 2.50
16-1
0831311068
ref: 16-1
08313-10067
NUT
€ 2.00
16-2
0831311065
ref: 16-2
08313-1006A
NUT 6MM
€ 2.00
17-1
0832221068
ref: 17-1
08322-01067
WASHER
€ 2.00
17-2
0832221065
ref: 17-2
08322-0106B
WASHER
€ 2.00
18
1652011400
ref: 18
STRAINER,ENGINE OIL
€ 7.50
19
0211206128
ref: 19
02112-06127
SCREW 6X12
€ 2.00
20
1640044100
ref: 20
PUMP ASSY,ENGINE OIL
€ 164.50
21
0928013004
ref: 21
O RING(D:1.9,ID:13)
€ 2.50
22
0211206258
ref: 22
02112-06257
SCREW
€ 2.00
23
1633111400
ref: 23
GEAR,OIL PUMP DRIVEN
€ 31.50
24
0822110185
ref: 24
SHIM
€ 2.00
25
0926104009
ref: 25
PIN(4X15.8)
€ 1.50
26
0833131109
ref: 26
CIRCLIP
€ 2.00
