FRONT WHEEL
GS300L 1983 (D) USA (E03)

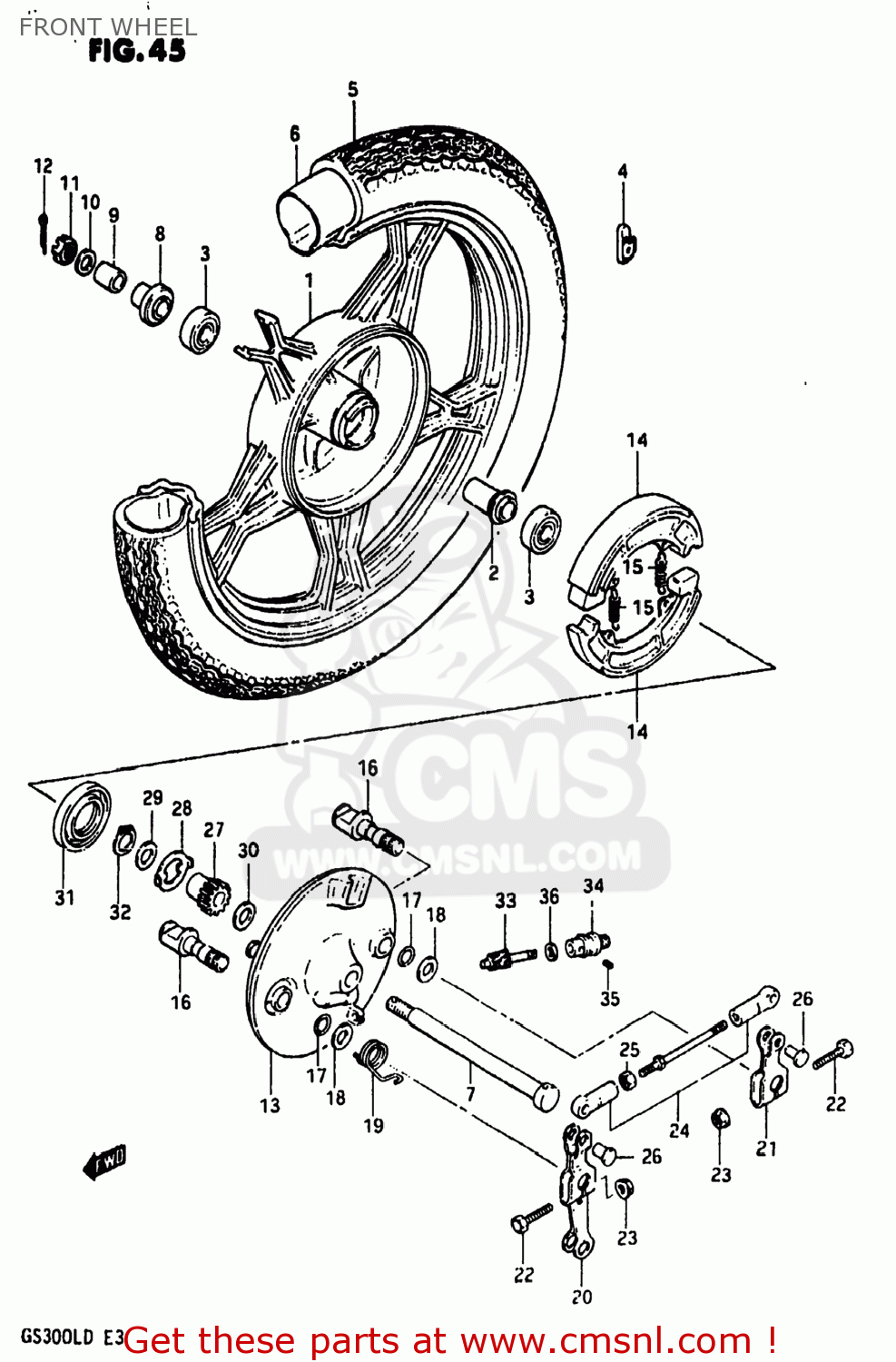

Front wheel diagram GS300L 1983 (D) USA (E03)
FRONT WHEEL GS300L 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5415011900291
ref: 1
CASTING WHEEL,FRONT 1.85
€ 254.00
2
5473011900
ref: 2
SPACER,FRONT HUB BEARING
€ 6.50
3
0812363027
ref: 3
BEARING
€ 19.00
4-1
5541145100
ref: 4-1
55412-17G00
BALANCER,WHEEL
€ 7.00
4-2
5541245100
ref: 4-2
BALANCER,WHEEL
€ 4.00
4-3
5541345100
ref: 4-3
55411-00A00-10V
BALANCER,WHEEL
€ 6.50
5-1
5510044410
ref: 5-1
TIRE
€ 80.00
5-2
5510044530
ref: 5-2
TIRE,FRONT
€ 79.50
6
5520011601
ref: 6
55200-26F00
TUBE,INNER
€ 24.50
7
5471133002
ref: 7
54711-3300V
AXLE,FRONT
€ 41.00
8
5474018402
ref: 8
SPACER,FR AXLE,R
€ 18.50
9
0918015034
ref: 9
SPACER(15X22X30)
€ 7.00
10
0832221128
ref: 10
08322-01127
WASHER
€ 2.00
11
0831431128
ref: 11
08314-3112A
NUT 12MM
€ 2.00
12
0411130308
ref: 12
04111-3030A
COTTER PIN
€ 1.50
13
5421011900
ref: 13
PANEL,FRONT HUB
€ 53.50
14
5441011900
ref: 14
54400-11830
SHOE,BRAKE
€ 57.50
15
5542041100
ref: 15
SPRING
€ 5.50
16
5444033002
ref: 16
CAM,FRONT BRAKE
€ 13.00
17
0928015001
ref: 17
09280-15003
O-RING,BOSS
€ 2.00
18
0916015001
ref: 18
09160-15048
WASHER (15X24X1.6)
€ 2.50
19
0944832012
ref: 19
SPRING
€ 1.50
20
5445011900
ref: 20
LEVER,FRONT BRAKE CAM NO
€ 9.00
21
5446111900
ref: 21
LEVER,FRONT BRAKE CAM NO
€ 7.50
22
0151706308
ref: 22
01550-06307
BOLT
€ 2.00
23
0831616066
ref: 23
08316-1006B
NUT
€ 2.50
24
5440011810
ref: 24
SHOE SET,BRAKE
€ 17.50
25
0831022058
ref: 25
08310-00057
NUT
€ 2.50
26
5448311900
ref: 26
NO PRODUCT DESCRIPTION AVAILABLE
€ 3.00
27
5461136001
ref: 27
GEAR,SPEEDOMETER
€ 26.50
28
5466149100
ref: 28
DRIVER,SPEEDOMETER GEAR
€ 2.50
29
0916022001
ref: 29
WASHER(22.5X27X1)
€ 2.00
30
0821122281
ref: 30
09181-22139
SHIM
€ 4.00
31
0928555002
ref: 31
OIL SEAL
€ 9.00
32
0833111229
ref: 32
08331-3122A
CIRCLIP
€ 2.00
33
5462110200
ref: 33
PINION,SPEEDOMETER
€ 12.00
34
5463201001
ref: 34
BUSH,METER GEAR OUTER
€ 9.00
35
0913403101
ref: 35
09134-03101-A05
SCREW
€ 1.50
36
0916005001
ref: 36
09160-05001-A05
WASHER (5.1X9X0.4)
€ 2.00
