MUFFLER (MODEL Z)
GS300L 1983 (D) USA (E03)

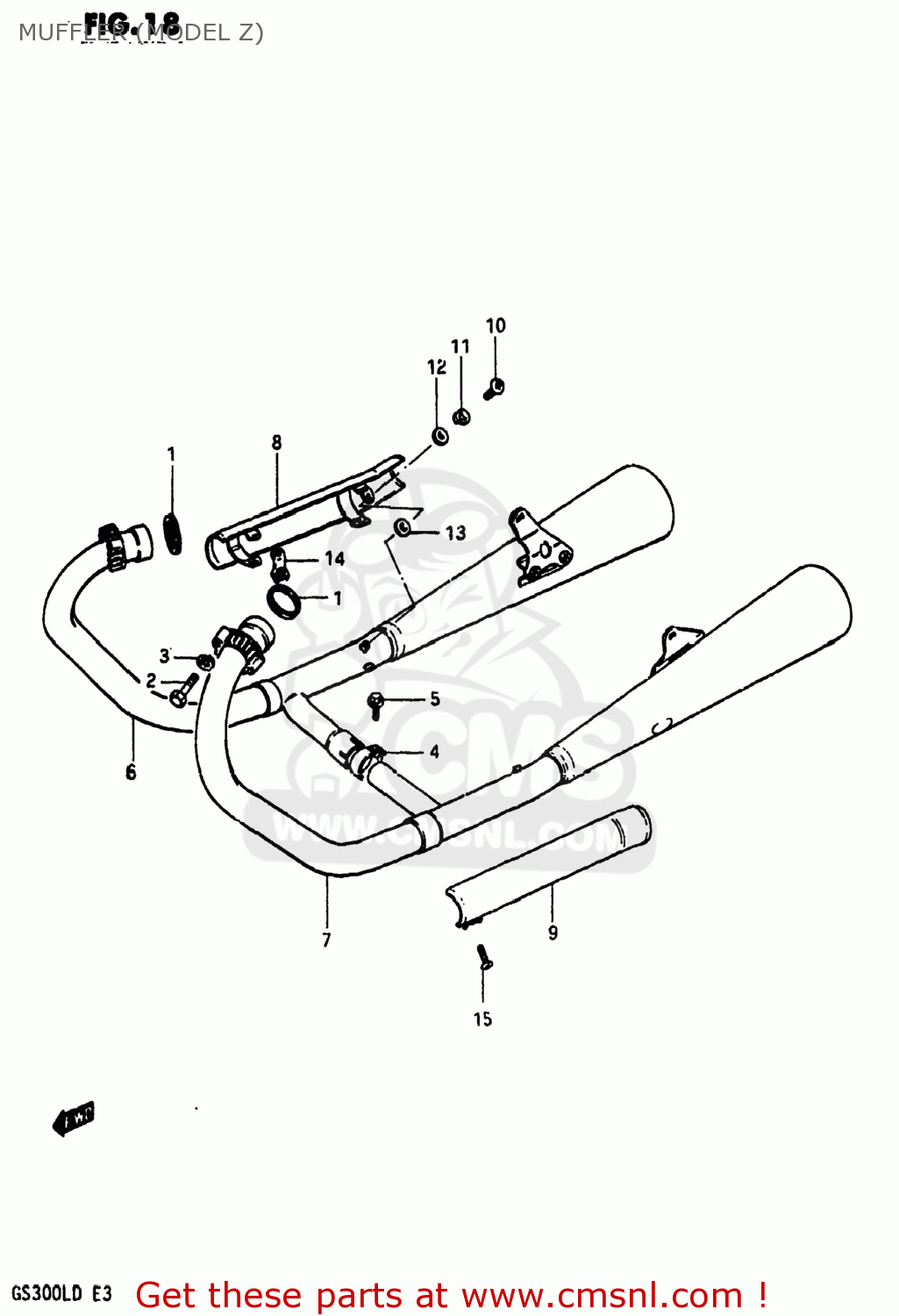

Muffler (model z) diagram GS300L 1983 (D) USA (E03)
MUFFLER (MODEL Z) GS300L 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418105020
ref: 1
14181-18C00
GASKET,EXHAUST PIPE (NAS)
€ 6.50
2
0110708408
ref: 2
01500-0840A
BOLT 8X40
€ 3.00
3
0832121088
ref: 3
08321-01087
LOCK WASHER
€ 2.00
4
0940235601
ref: 4
CLAMP
€ 5.00
5
0151706258
ref: 5
01550-06257
BOLT
€ 2.50
6
1430111900
ref: 6
14301-11900-H01
MUFFLER ASSEMBLY
€ 190.00
7
1430211900
ref: 7
14302-11901-H01
MUFFLER ASSEMBLY
€ 193.50
8
1478011500
ref: 8
14780-11540
COVER,MUFFLER,RIGHT
€ 17.50
9
1479011500
ref: 9
14790-11540
COVER,MUFFLER
€ 17.50
10
0211206128
ref: 10
02112-06127
SCREW 6X12
€ 2.00
11
0832121068
ref: 11
08321-01067
LOCK WASHER
€ 2.50
12
0832221068
ref: 12
08322-01067
WASHER
€ 2.00
13
0916806005
ref: 13
09168-06105
GASKET 6.2X12X1.5 (MCA)
€ 2.00
14
1478511500
ref: 14
CLAMP,MUFFLER COVER
€ 5.50
15
0211206208
ref: 15
02112-06207
SCREW
€ 2.00
