STEERING STEM
GS300L 1983 (D) USA (E03)

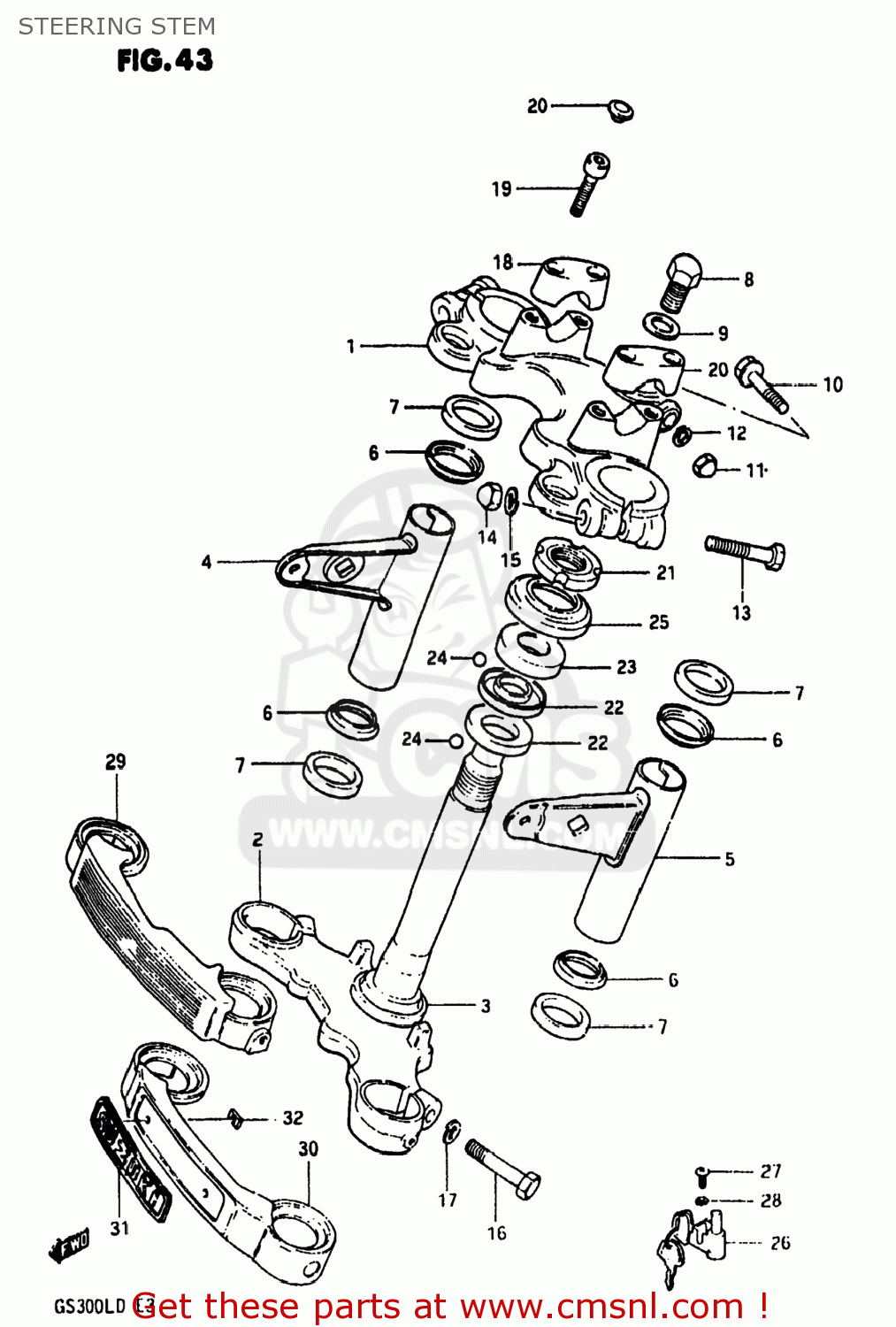

Steering stem diagram GS300L 1983 (D) USA (E03)
STEERING STEM GS300L 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5131144100291
ref: 1
HEAD,STEERING STEM
€ 133.00
2
5141011430
ref: 2
STEM,STEERING
€ 178.00
3
5162133001
ref: 3
RACE,STEERING OUTER LWR
€ 10.00
4
5153011900
ref: 4
BRACKET,HEADLAMP,RIGHT
€ 0.00
5
5154011900
ref: 5
BRACKET,HEADLAMP,LEFT
€ 31.50
6
5155544100
ref: 6
CAP,HEADLAMP BRACKET
€ 5.50
7
5155644100
ref: 7
CUSHION,HEADLAMP BRACKET
€ 5.50
8
0910412013
ref: 8
BOLT(12X20)
€ 6.50
9
0916012056
ref: 9
09160-12089
WASHER (12.5X26X1.6)
€ 2.00
10
0151708508
ref: 10
01550-08507
BOLT
€ 3.50
11
0831311085
ref: 11
08313-10083
NUT,M8X1.25X12
€ 2.00
12
0832121088
ref: 12
08321-01087
LOCK WASHER
€ 2.00
13
0151710558
ref: 13
01550-10557
BOLT 10X55
€ 3.00
14
0914510002
ref: 14
NUT
€ 4.00
15
0832131108
ref: 15
08321-01107
LOCK WASHER
€ 2.00
16
0110710408
ref: 16
01500-10407
BOLT 10X40
€ 3.00
17
0832121108
ref: 17
08321-01107
LOCK WASHER
€ 2.00
18
5621134300291
ref: 18
HOLDER,HANDLEBAR(BLACK)
€ 42.00
19
0910608013
ref: 19
07130-0830A
BOLT
€ 3.00
20
0925006004
ref: 20
CAP(OD:14.5)
€ 1.50
21
5163128000
ref: 21
NUT,STEERING STEM(25X44X10)
€ 12.50
22
5161133002
ref: 22
LACE,STEERING INNER LWR
€ 7.00
23
5162130001
ref: 23
LACE,STEERING OUTER UPR
€ 14.00
24
0611108003
ref: 24
BALL
€ 1.50
25
5164330000
ref: 25
DUST SEAL,STEERING UPR
€ 15.50
26
5190033811
ref: 26
LOCK ASSY,STEERING
€ 32.50
27
0211205258
ref: 27
02112-05257
SCREW
€ 2.00
28
0832121058
ref: 28
08321-0105A
LOCK WASHER
€ 2.00
29
5187144400
ref: 29
51871-44401
COVER,FRONT FORK
€ 26.00
30
5187144210
ref: 30
COVER,FRONT FORK
€ 22.50
31
6821144210
ref: 31
EMBLEM,FR FORK COVER
€ 23.00
32
0914803002
ref: 32
NUT
€ 3.00
