MUFFLER (MODEL D)
GS300L 1983 (D) USA (E03)

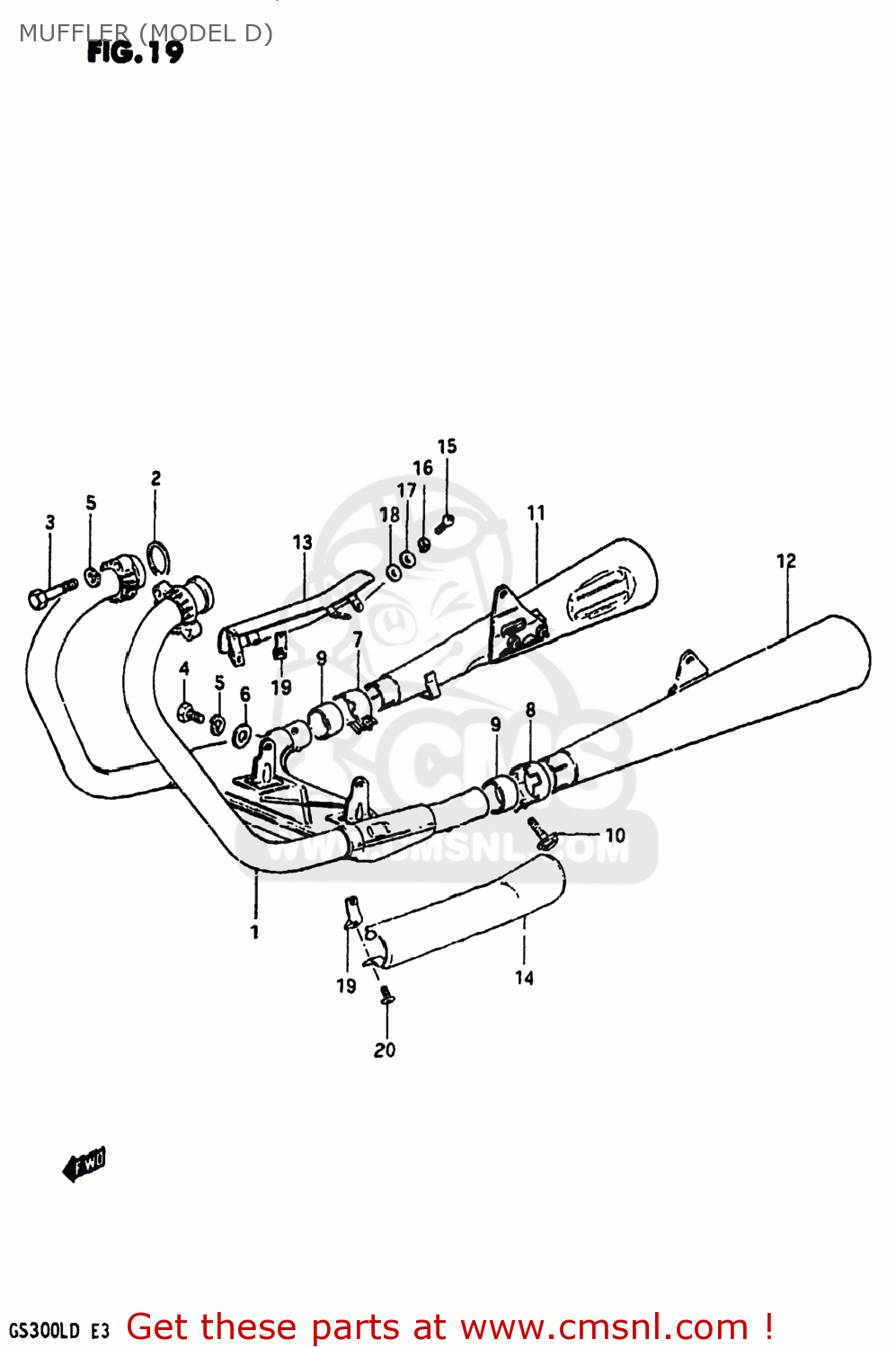

Muffler (model d) diagram GS300L 1983 (D) USA (E03)
MUFFLER (MODEL D) GS300L 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1410011520
ref: 1
14100-11521-H01
PIPE,EXHAUST
€ 361.00
2
1418105020
ref: 2
14181-18C00
GASKET,EXHAUST PIPE (NAS)
€ 6.50
3
0110708408
ref: 3
01500-0840A
BOLT 8X40
€ 3.00
4
0110708168
ref: 4
01500-0816B
BOLT
€ 2.00
5
0832121088
ref: 5
08321-01087
LOCK WASHER
€ 2.00
6
0832211088
ref: 6
08322-01087
WASHER
€ 2.00
7
1445947000
ref: 7
CLAMP,MUFFLER CONNECTOR,R
€ 12.50
8
1446947000
ref: 8
CLAMP,MUFFLER CONNECTOR,L
€ 15.00
9
1477147020
ref: 9
14771-47020-H17
CONNECTOR,MUFFLER
€ 35.00
10
0151708258
ref: 10
01550-08257
BOLT
€ 2.50
11
1430111520
ref: 11
14301-11550-H01
MUFFLER ASSY,R
€ 126.00
12
1430211520
ref: 12
14302-11550-H01
MUFFLER ASSY,L
€ 126.00
13
1478011500
ref: 13
14780-11540
COVER,MUFFLER,RIGHT
€ 17.50
14
1479011500
ref: 14
14790-11540
COVER,MUFFLER
€ 17.50
15
0211206128
ref: 15
02112-06127
SCREW 6X12
€ 2.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
0832221068
ref: 17
08322-01067
WASHER
€ 2.00
18
0916806005
ref: 18
09168-06105
GASKET 6.2X12X1.5 (MCA)
€ 2.00
19
1478511500
ref: 19
CLAMP,MUFFLER COVER
€ 5.50
20
0211206208
ref: 20
02112-06207
SCREW
€ 2.00
