FRAME COVER (MODEL Z)
GS300L 1983 (D) USA (E03)

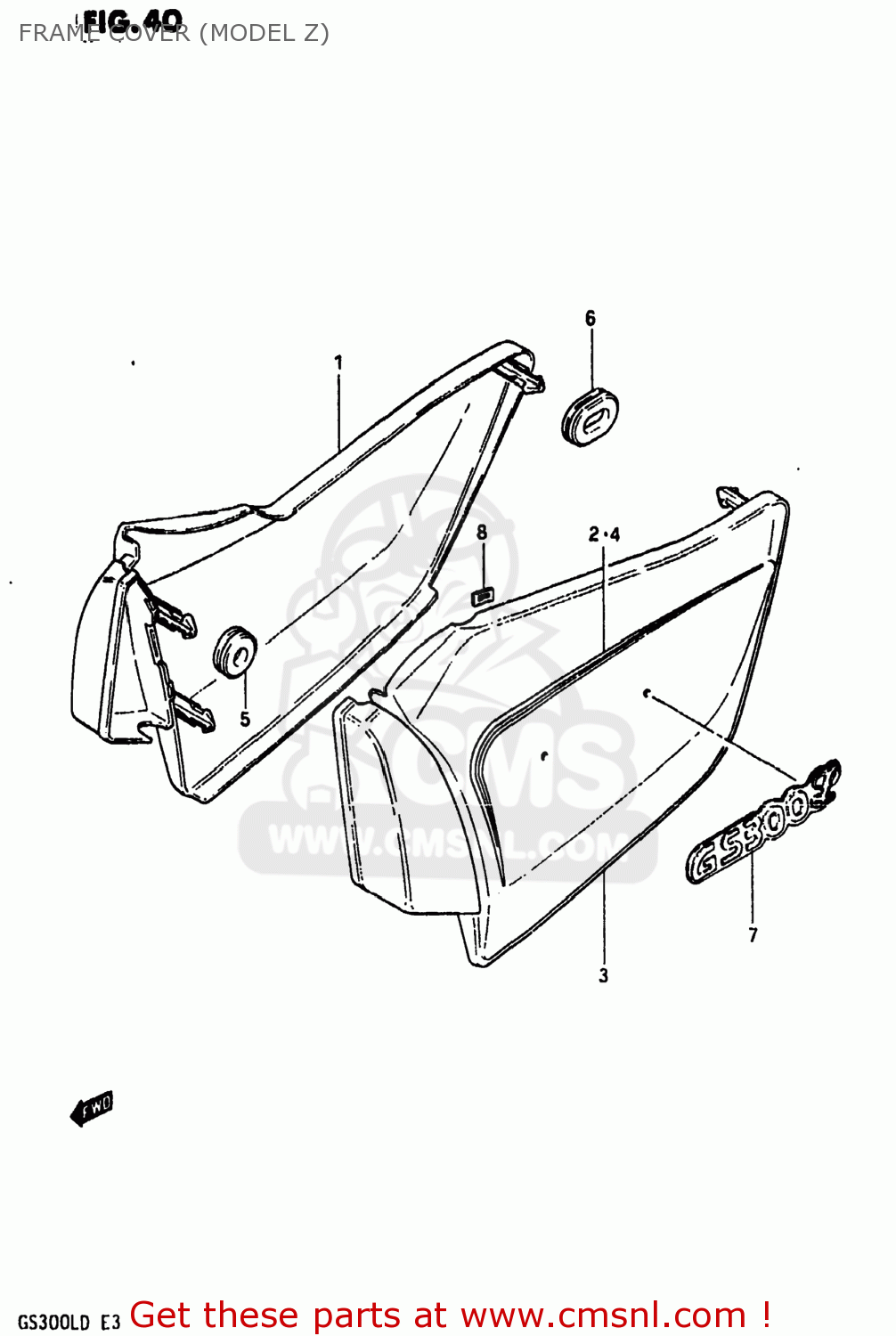

Frame cover (model z) diagram GS300L 1983 (D) USA (E03)
FRAME COVER (MODEL Z) GS300L 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4711011900019
ref: 1-1
47110-11920
COVER,FRAME,RIGHT
€ 88.00
1-2
471101190010S
ref: 1-2
47110-11920
COVER,FRAME,RIGHT
€ 88.00
2
6813011900764
ref: 2
TAPE SET,FRAME COVER,RIGHT
€ 7.50
3-1
4721011900019
ref: 3-1
47210-11920
COVER,FRAME,LEFT
€ 86.50
3-2
472101190010S
ref: 3-2
47210-11920
COVER,FRAME,LEFT
€ 86.50
4
6814011900764
ref: 4
TAPE SET,FRAME COVER
€ 6.00
5
0932008018
ref: 5
CUSHION
€ 4.00
6
0932908003
ref: 6
CUSHION
€ 3.50
7
6813111900
ref: 7
EMBLEM,FRAME COVER
€ 16.50
8
0914803002
ref: 8
NUT
€ 3.00
