SEAT

GS300L 1983 (D) USA (E03)

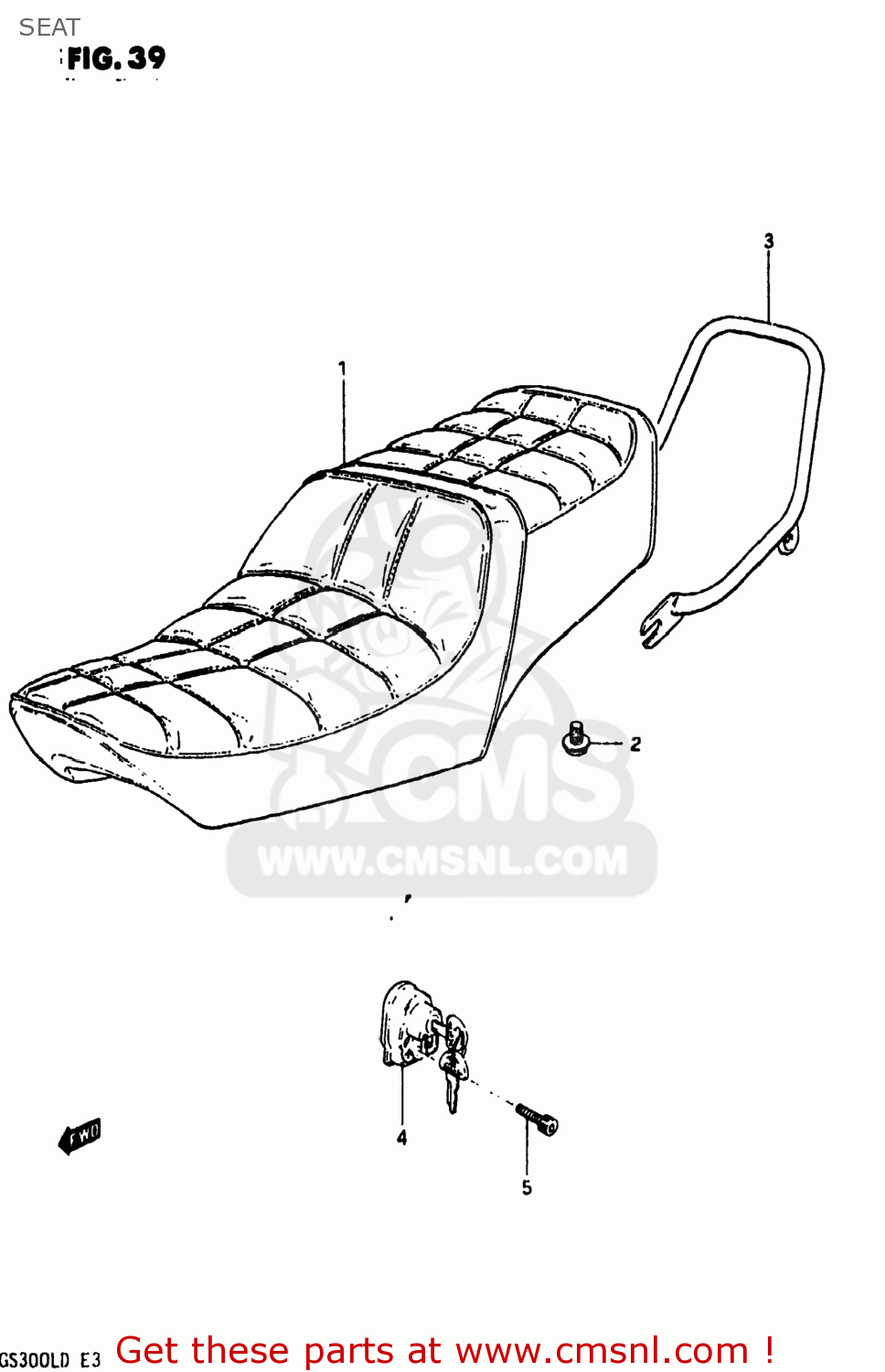

Seat diagram GS300L 1983 (D) USA (E03)

SEAT GS300L 1983 (D) USA (E03)

SEAT GS300L 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

451001190047T
ref: 1
45100-11900-48H

SEAT ASSEMBLY

€ 136.50

2

0151706168
ref: 2
01550-06167

BOLT

€ 1.50

3

4621011900
ref: 3

HANDLE,PILLION RIDER

€ 55.00

4

9570034210
ref: 4

LOCK ASSY,HELMET

€ 59.00

5

0910605008
ref: 5
07130-0525B

BOLT 5X25

€ 2.00
