SPEEDOMETER

GS300L 1983 (D) USA (E03)

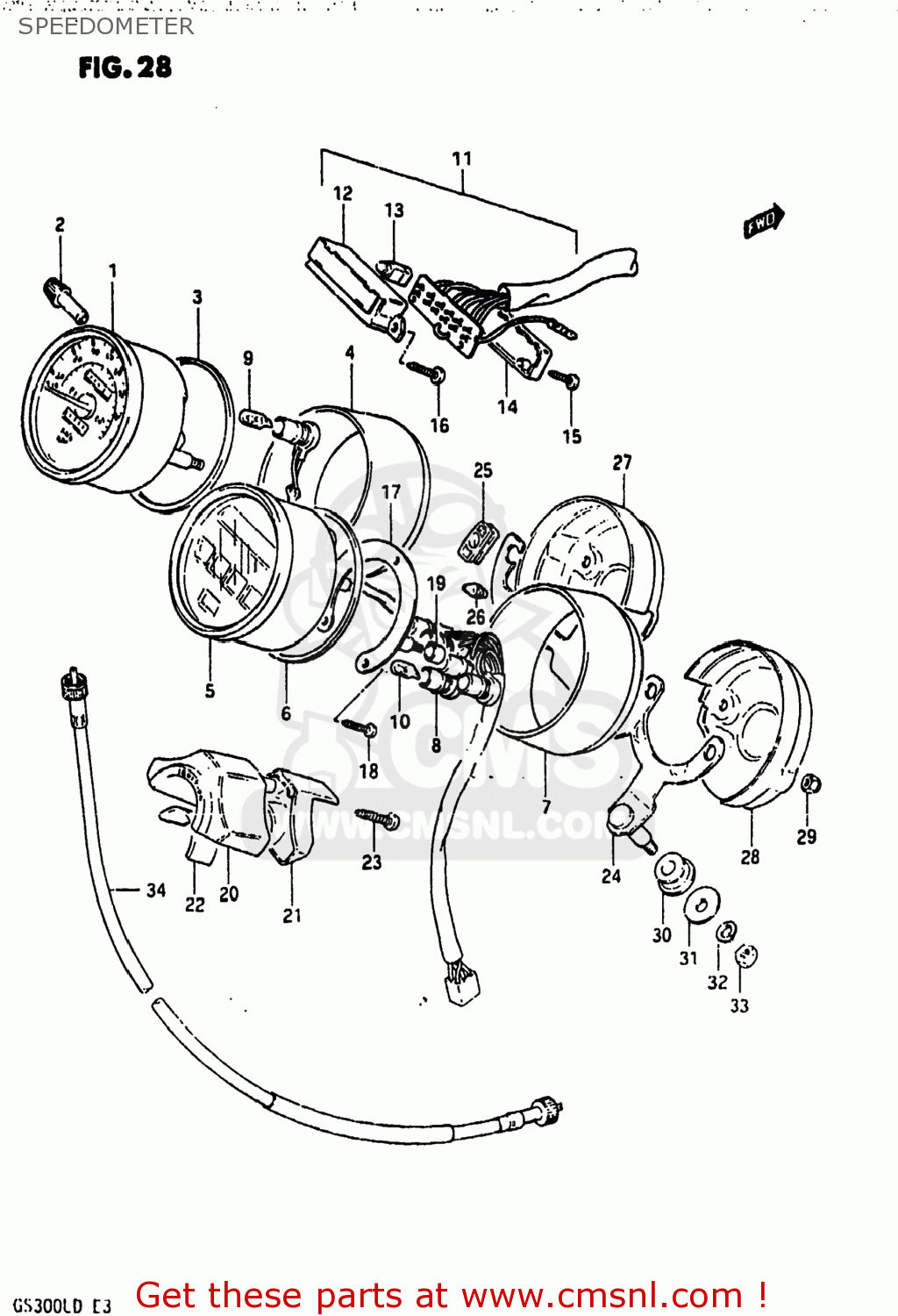

Speedometer diagram GS300L 1983 (D) USA (E03)

SPEEDOMETER GS300L 1983 (D) USA (E03)
SPEEDOMETER GS300L 1983 (D) USA (E03)
SPEEDOMETER GS300L 1983 (D) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3411011910
ref: 1-1
34110-11911
SPEEDOMETER ASSEMBLY
€ 134.50
1-2
3411011911
ref: 1-2
SPEEDOMETER (MILE/KILO)
€ 134.50
2
3498045020
ref: 2
KNOB
3498045020
€ 4.50
3
3418945300
ref: 3
CUSHION
3418945300
€ 10.00
4
3415145300
ref: 4
COVER,SPEEDOMETER
3415145300
€ 16.00
5-1
3638011910
ref: 5-1
BOX ASSEMBLY,PILOT LAMP
€ 98.00
5-2
3638011911
ref: 5-2
BOX ASSEMBLY,PILOT LAMP
€ 85.50
6
3418945300
ref: 6
CUSHION
3418945300
€ 10.00
7
3425145300
ref: 7
COVER,TACHOMETER
3425145300
€ 12.00
8-1
3632511910
ref: 8-1
SOCKET
€ 39.50
8-2
3632511911
ref: 8-2
SOCKET
€ 35.00
9
0947112077
ref: 9
BULB(12V1.7W,T10,WB121)
0947112077
€ 1.00
10
0947112028
ref: 10
BULB(12V3.4W,T10)
0947112028
€ 3.50
11-1
3645044100
ref: 11-1
36450-47751
INDICATOR ASSEMBLY,GEAR POSITION
3645044100
€ 112.00
11-2
3645034561
ref: 11-2
36450-49401
INDICATOR ASSEMBLY,GEAR POSITION
€ 117.00
12-1
3645245100
ref: 12-1
CASE,GEAR INDICATOR
3645245100
€ 14.50
12-2
3645249401
ref: 12-2
CASE,GEAR INDICATOR
€ 12.50
13
0947112071
ref: 13
BULB(14V1.12W)
0947112071
€ 5.00
14
3645445100
ref: 14
COVER,LWR
3645445100
€ 7.00
15
3645645100
ref: 15
03511-03146
SCREW,GEAR INDICATOR
€ 2.00
16
3645633220
ref: 16
35625-01A00
SCREW,INDICATOR
€ 1.50
17
3495511910
ref: 17
CUSHION,METER
€ 16.50
18
0324104168
ref: 18
03242-04169
SCREW
€ 4.50
19
3638811910
ref: 19
CAP
€ 2.00
20
3638211910
ref: 20
NO PRODUCT DESCRIPTION AVAILABLE
€ 6.00
21
3638311910
ref: 21
COVER,IGNITION SWITCH
€ 4.50
22
3499347000
ref: 22
SEAL,IGNITION SWITCH
3499347000
€ 3.00
23
0324104255
ref: 23
NO PRODUCT DESCRIPTION AVAILABLE
0324104255
€ 1.00
23
0324104255
ref: 23
NO PRODUCT DESCRIPTION AVAILABLE
0324104255
€ 1.00
24
3495011910
ref: 24
BRACKET,METER
€ 31.50
25
3418944310
ref: 25
34189-44311
CUSHION,METER
3418944310
€ 2.50
26
3419144310
ref: 26
CUSHION
3419144310
€ 3.00
27
3419345300
ref: 27
ORNAMENT,SPEEDOMETER
3419345300
€ 35.50
28
3429311910
ref: 28
COVER,INDICATOR,UNDER
€ 26.00
29
0831311057
ref: 29
08313-1005A
NUT
0831311057
€ 1.50
30
3495631001
ref: 30
CUSHION,METER BRACKET
3495631001
€ 4.50
31
0916008057
ref: 31
09160-08135
WASHER (8.5X20X1.6)
0916008057
€ 2.00
32
0832121088
ref: 32
08321-01087
LOCK WASHER
0832121088
€ 2.00
33
0831012088
ref: 33
08310-00087
NUT
0831012088
€ 2.00
34
3491011900
ref: 34
34910-09D10
CABLE ASSEMBLY,SPEEDOMETER
€ 65.00
