CRANKCASE (MODEL Z)
GS300L 1983 (D) USA (E03)

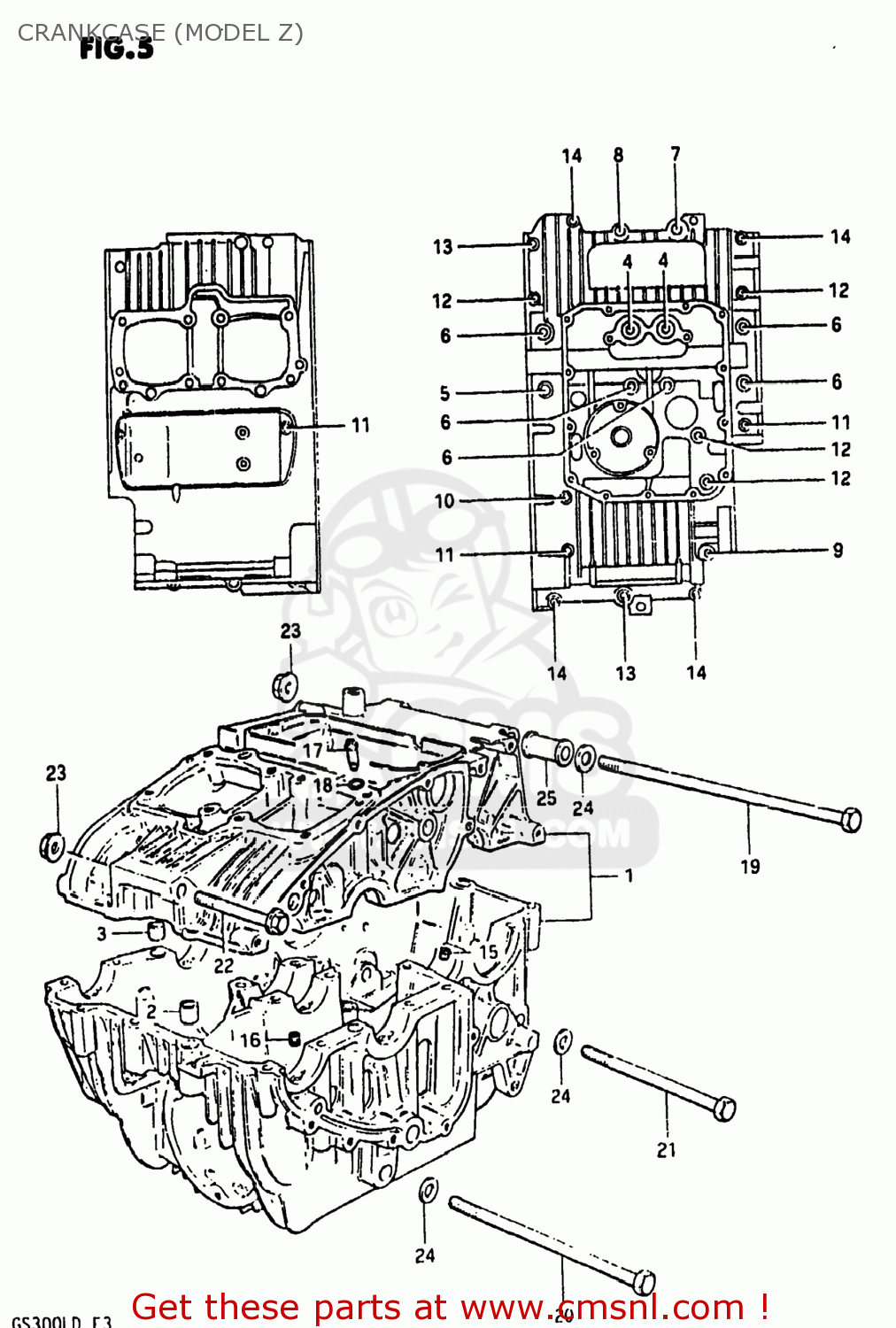

Crankcase (model z) diagram GS300L 1983 (D) USA (E03)
CRANKCASE (MODEL Z) GS300L 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130011870
ref: 1
CRANKCASE SET
€ 535.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920611005
ref: 3
09206-11017
PIN (11X20)(SUS)
€ 6.50
4
0910608014
ref: 4
07130-0870B
BOLT
€ 4.00
5
0910308078
ref: 5
09103-08106
BOLT
€ 8.00
6
0910308025
ref: 6
09103-08098
BOLT
€ 3.00
7
0151708658
ref: 7
01550-08657
BOLT 8X65
€ 3.00
8
0151708508
ref: 8
01550-08507
BOLT
€ 3.50
9
0151708408
ref: 9
01550-08407
BOLT (8X40)
€ 3.50
10
0910306033
ref: 10
BOLT(6X125)
€ 3.50
11
0910306025
ref: 11
09103-06067
BOLT
€ 3.50
12
0151706908
ref: 12
01550-06907
BOLT (6X90)
€ 2.00
13
0151706608
ref: 13
01550-06607
BOLT (6X60)
€ 2.50
14
0151706458
ref: 14
01550-06457
BOLT,UNDER
€ 2.50
15
0949320012
ref: 15
JET,AIR(100)
€ 12.00
16
0949340001
ref: 16
JET,AIR
€ 11.50
17
0949340002
ref: 17
JET,AIR
€ 16.00
18
0928003003
ref: 18
O RING(D:1.05,ID:3.1)
€ 2.50
19
0910010139
ref: 19
09100-10034
BOLT
€ 6.50
20
0910010145
ref: 20
09100-10033
BOLT
€ 46.50
21
0910010136
ref: 21
41189-17X00
BOLT
€ 28.50
22
0151710905
ref: 22
BOLT (10X90)
€ 4.00
23
0831931105
ref: 23
08319-3110A
NUT 10MM
€ 3.00
24
0832211105
ref: 24
08322-0110A
WASHER
€ 2.50
25
1161044100
ref: 25
SPACER,ENGINE MOUNT
€ 9.50
