FRAME COVER (MODEL D)

GS300L 1983 (D) USA (E03)

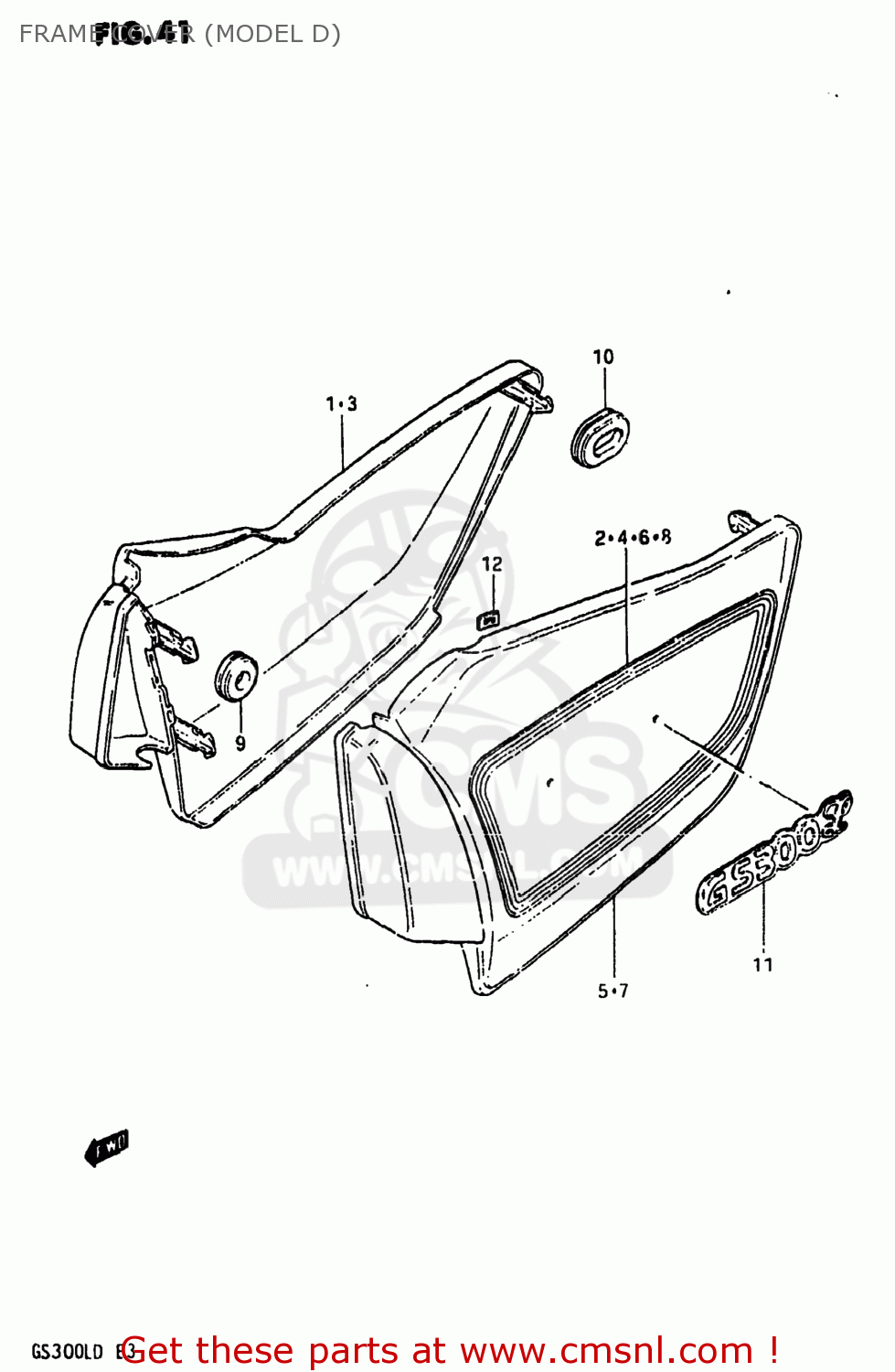

Frame cover (model d) diagram GS300L 1983 (D) USA (E03)

FRAME COVER (MODEL D) GS300L 1983 (D) USA (E03)
FRAME COVER (MODEL D) GS300L 1983 (D) USA (E03)
FRAME COVER (MODEL D) GS300L 1983 (D) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4711011900019
ref: 1
47110-11920
COVER,FRAME,RIGHT
€ 88.00
2
681301192082S
ref: 2
TAPE SET,FRAME COVER
€ 8.00
3
471101190015W
ref: 3
COVER,FRAME,RIGHT
€ 88.00
4
681301192086A
ref: 4
TAPE SET,FRAME COVER
€ 7.00
5
4721011900019
ref: 5
47210-11920
COVER,FRAME,LEFT
€ 86.50
6
681401192082S
ref: 6
TAPE SET,FRAME COVER
€ 7.50
7
472101190015W
ref: 7
COVER,FRAME,LEFT
€ 86.50
8
681401192086A
ref: 8
TAPE SET,FRAME COVER
€ 7.00
9
0932008018
ref: 9
CUSHION
0932008018
€ 4.00
10
0932908003
ref: 10
CUSHION
0932908003
€ 3.50
11
6813111910
ref: 11
EMBLEM,FRAME COVER
6813111910
€ 17.50
12
0914803002
ref: 12
NUT
0914803002
€ 3.00
