BATTERY

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

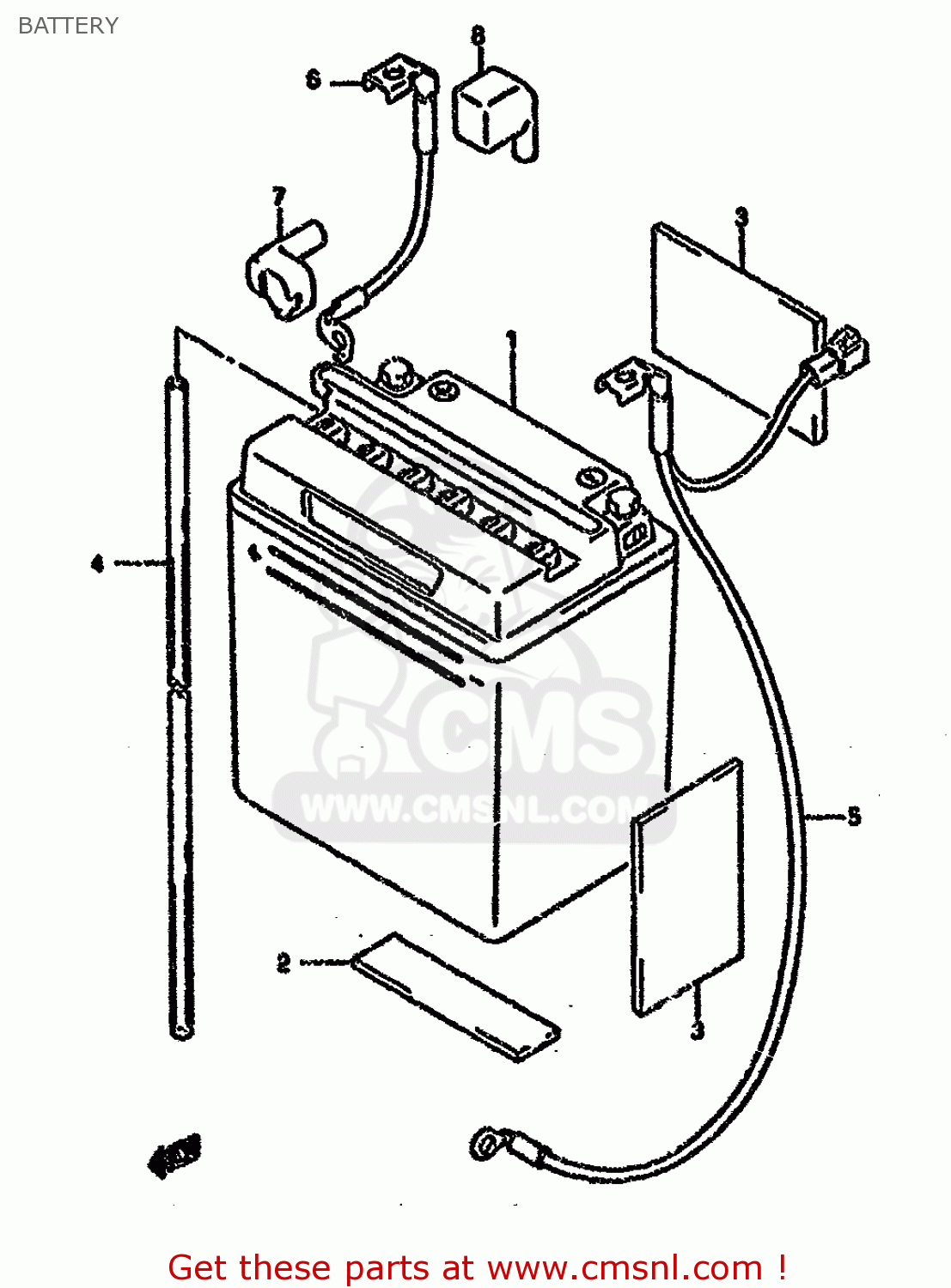

Battery diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

prices are in EUR

ref

part #

description

quantity

3361001D00
ref: 1

BATTERY ASSY (12V)

€ 78.50

3365219B00
ref: 2
30X130-27X80

CUSHION,BATTERY(80X27X3)

€ 4.50

3365137D00
ref: 3

CUSHION

€ 0.00

3368016A10
ref: 4

HOSE,BATTERY EXHAUST(L:780)

€ 4.50

3386001D00
ref: 5

WIRE,BATTERY MINUS LEAD

€ 16.50

3387001D00
ref: 6
MODEL L/M/N/P/R/S/T

WIRE,BATTERY PLUS LEAD

€ 23.50

3362401D00
ref: 7
MODEL L/M/N/P/R/S/T

CAP,STARTER RELAY TERMINAL

€ 7.50

3362443500
ref: 8
MODEL L/M/N/P/R/S/T

CAP,BATTERY PLUS TERMINAL

€ 3.50
