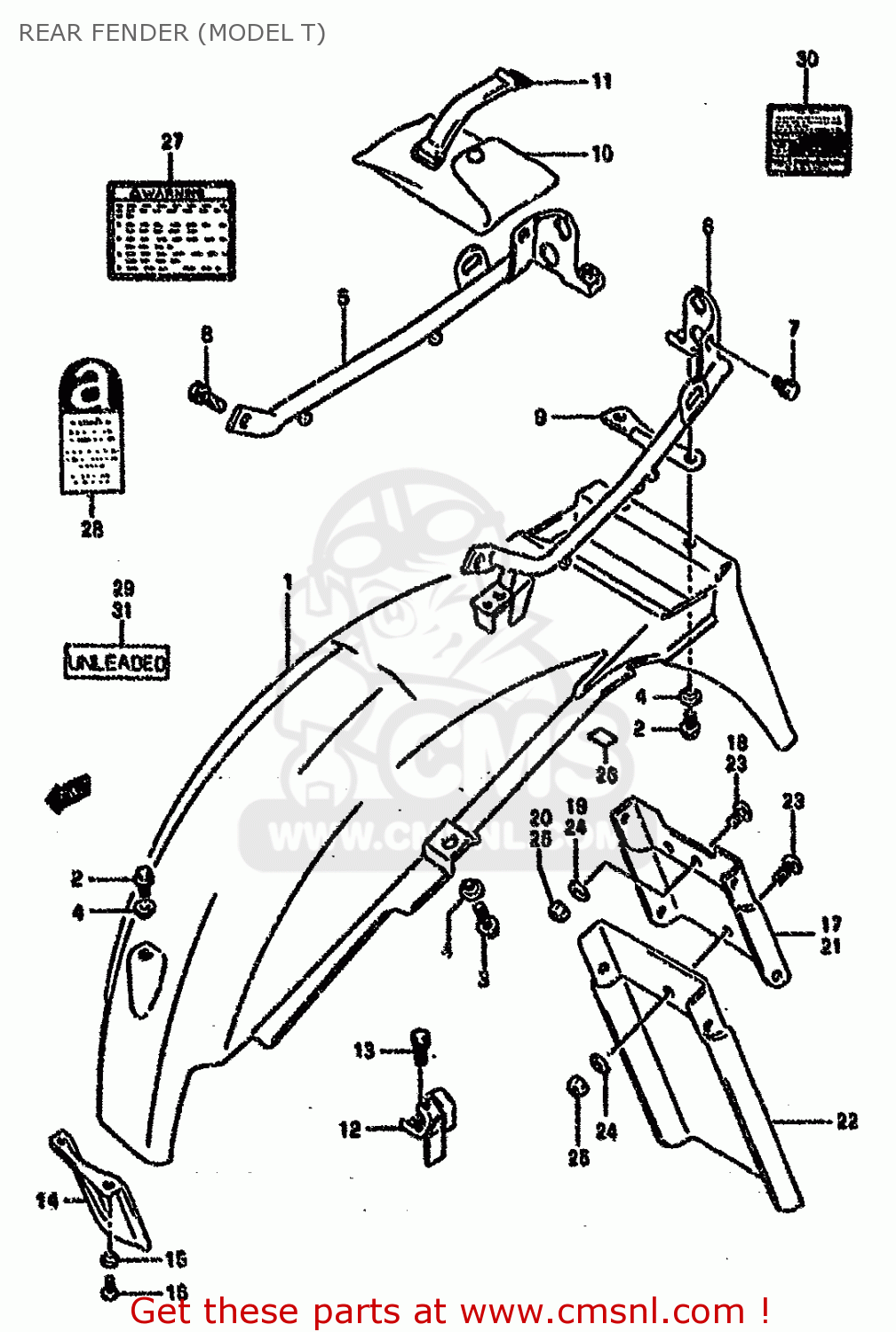

REAR FENDER (MODEL T)

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

Rear fender (model t) diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

REAR FENDER (MODEL T) GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
REAR FENDER (MODEL T) GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
REAR FENDER (MODEL T) GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
prices are in EUR
ref
part #
description
quantity
1-1
6311101D30
ref: 1-1
BODY,REAR FENDER
€ 20.50
1-2
6311101D20
ref: 1-2
E18,E22,E25
BODY,RR FENDER
€ 108.00
1-3
6311101D40
ref: 1-3
E39
BODY, REAR FENDER
€ 87.00
2
0155006123
ref: 2
BOLT
0155006123
€ 2.50
3
0155006163
ref: 3
BOLT
0155006163
€ 2.50
4
0916906037
ref: 4
WASHER
0916906037
€ 6.50
5
6321001D10
ref: 5
BRACE,RR FENDER,R
6321001D10
€ 73.50
6
6322001D10
ref: 6
BRACE,RR FENDER,L
6322001D10
€ 73.50
7
0155008123
ref: 7
BOLT
0155008123
€ 3.50
8
0155008203
ref: 8
BOLT
0155008203
€ 3.00
9
4742501D00
ref: 9
PLATE,TOOL HOLDER
4742501D00
€ 4.50
10
0980021017
ref: 10
TOOL ASSY
0980021017
€ 59.00
11
0946200046
ref: 11
BAND
0946200046
€ 4.50
12
9572001D00
ref: 12
HOLDER,HELMET
€ 7.00
13
0157006203
ref: 13
BOLT
0157006203
€ 2.50
14
6341142A00
ref: 14
GUARD,RR UNIT MUD
6341142A00
€ 3.50
15
0916906010
ref: 15
WASHER
0916906010
€ 3.00
16
0214206163
ref: 16
SCREW
0214206163
€ 2.50
17
6331112C00
ref: 17
E25
EXTENSION,RR FENDER
6331112C00
€ 19.50
18
0214206163
ref: 18
E25
SCREW
0214206163
€ 2.50
19
0916006019
ref: 19
E25
WASHER(6.5X16X1.2)
0916006019
€ 1.50
20
0831921066
ref: 20
E25
NUT
0831921066
€ 2.00
21
6331101D40
ref: 21
E22,E39
EXTENSION,RR FENDER
6331101D40
€ 18.00
22
6333148B12
ref: 22
E22,E39
MUDGUARD,RR FENDER
6333148B12
€ 31.00
23
0214206163
ref: 23
E22,E39
SCREW
0214206163
€ 2.50
24
0916006019
ref: 24
E22,E39
WASHER(6.5X16X1.2)
0916006019
€ 1.50
25
0831921066
ref: 25
E22,E39
NUT
0831921066
€ 2.00
26
6311506C00
ref: 26
TAPE,RR FENDER
6311506C00
€ 7.00
27-1
6831940C00
ref: 27-1
E2,E25
LABEL
6831940C00
€ 8.00
27-2
6831940C20
ref: 27-2
E22,E39
LABEL, WARNING SAFETY
€ 8.00
27-3
6831940C30
ref: 27-3
E4,E34
LABEL, WARNING SAFETY
€ 8.50
27-4
6831940C40
ref: 27-4
E34
LABEL, WARNING SAFETY
€ 8.00
27-5
6831933E70
ref: 27-5
E34
LABEL,WARNING
6831933E70
€ 5.50
27-6
6831940C51
ref: 27-6
E34,E37
LABEL
€ 8.00
28
1196782000
ref: 28
E2
LABEL,ASBESTOS WARNING
€ 2.00
29
6862317D00
ref: 29
E2
LABEL,CAUTION
6862317D00
€ 4.00
30-1
6833201D00
ref: 30-1
LABEL,TIRE AIR PRESSURE
6833201D00
€ 4.50
30-2
6833201D10
ref: 30-2
E4
LABEL, TIRE AIR PRESSURE
€ 0.00
31
8693273060
ref: 31
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
32
0982200005
ref: 32
CLAMP
0982200005
€ 22.00
33-1
9901101D5728B
ref: 33-1
MANUAL, OWNER'S
€ 0.00
33-2
9901101D57042
ref: 33-2
E22,E25,E34,E37,E39
O.M. GS500E T
€ 21.00
32-1
9901101D56028
ref: 32-1
E2,E4,E34,E37,P9
MANUAL,OWNER'S
€ 29.50
32-2
9901101D56022
ref: 32-2
E22,E25,E34,E39 DRAW
O.M. GS500E R,
9901101D56022
€ 12.50
25
0831921066
ref: 25
E15,E16,E18,E22,E39
NUT
0831921066
€ 2.00
26
6311506C00
ref: 26
MODEL M/N/P/R
TAPE,RR FENDER
6311506C00
€ 7.00
27-1
6831940C00
ref: 27-1
E1,E2,E17,E24,E25
LABEL
6831940C00
€ 8.00
27-2
6831940C20
ref: 27-2
E18,E22,E39
LABEL, WARNING SAFETY
€ 8.00
27-3
6831940C30
ref: 27-3
E4,E21
LABEL, WARNING SAFETY
€ 8.50
27-4
6831940C40
ref: 27-4
E34
LABEL, WARNING SAFETY
€ 8.00
27-5
6831940C51
ref: 27-5
E53,E37,P9
LABEL
€ 8.00
28
1196782000
ref: 28
E2
LABEL,ASBESTOS WARNING
€ 2.00
29-1
8693273060
ref: 29-1
E24
LABEL,FUEL CAUTION
8693273060
€ 4.00
29-2
6862317D00
ref: 29-2
E2
LABEL,CAUTION
6862317D00
€ 4.00
30-1
6833201D00
ref: 30-1
LABEL,TIRE AIR PRESSURE
6833201D00
€ 4.50
30-2
6833201D10
ref: 30-2
E4
LABEL, TIRE AIR PRESSURE
€ 0.00
31-1
9901101D50028
ref: 31-1
MODEL K
MANUAL,OWMER'S
€ 0.00
31-2
9901101D50022
ref: 31-2
MODEL K E4
O.M. GS500E K
€ 21.00
31-3
9901101D51028
ref: 31-3
MODEL L
MANUAL,OWNER'S
€ 0.00
31-4
9901101D51022
ref: 31-4
MODEL L E4
O.M. GS500E L
€ 21.00
31-5
9901101D52028
ref: 31-5
MODEL M
MANUAL,OWNER'S
€ 0.00
31-6
9901101D52022
ref: 31-6
MODEL M E4
O.M. GS500E M
9901101D52022
€ 12.50
31-7
9901101D53028
ref: 31-7
MODEL N
MANUAL,OWNER'S
€ 0.00
31-8
9901101D53022
ref: 31-8
MODEL N E4,E18,E39
O.M. GS500E N
9901101D53022
€ 12.50
31-9
9901101D54028
ref: 31-9
MODEL P
MANUAL,OWNER'S GS500E
9901101D54028
€ 25.50
31-10
9901101D54022
ref: 31-10
MODEL P E18,E39
O.M. GS500E P
9901101D54022
€ 12.50
31-11
9901101D55028
ref: 31-11
MODEL R
MANUAL,OWNER'S
9901101D55028
€ 14.50
31-12
9901101D55022
ref: 31-12
MODEL R E18,E39 DRAW
O.M. GS500E R
€ 21.00
