FRONT CALIPER (MODEL T)

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

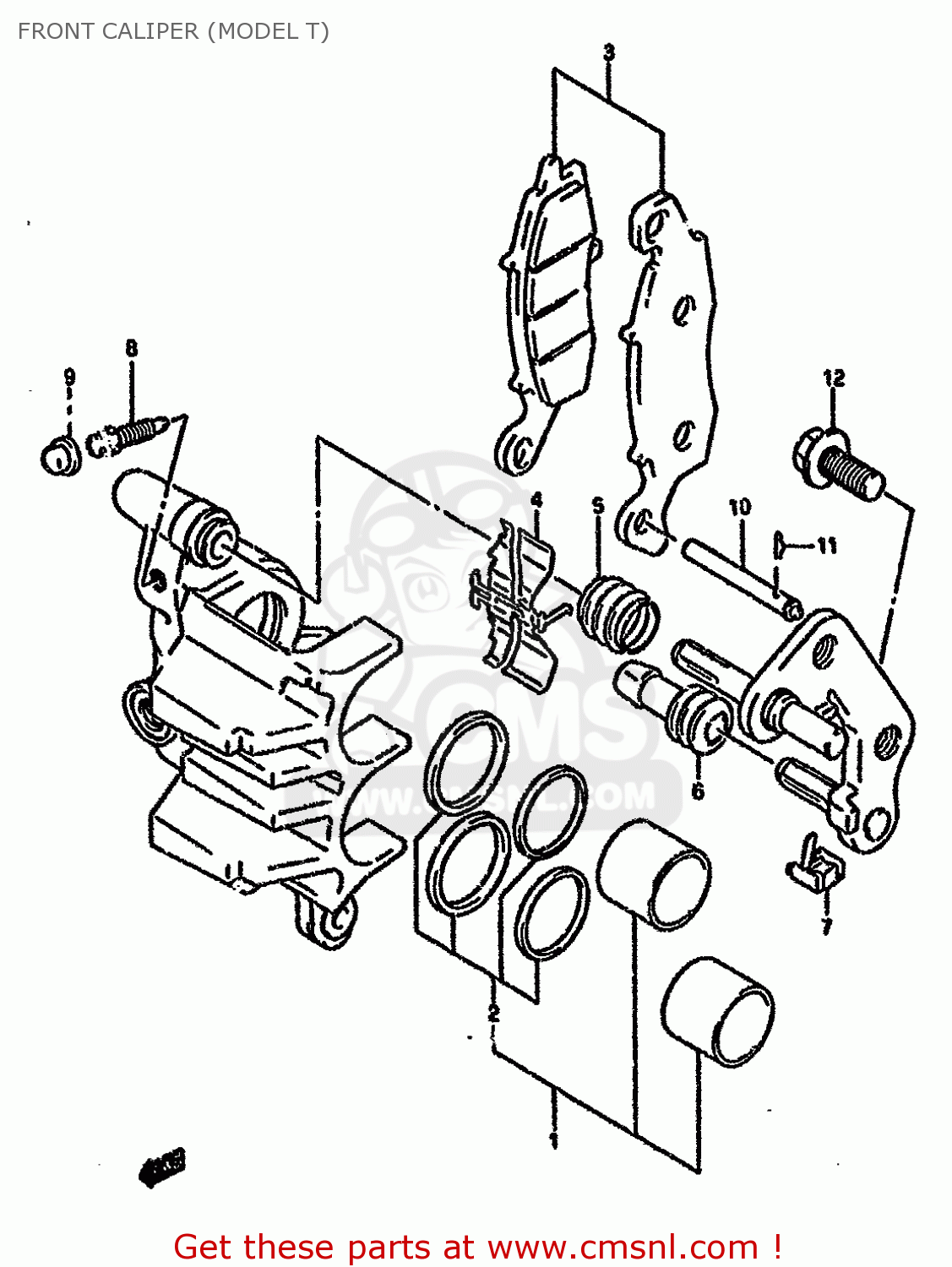

Front caliper (model t) diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

FRONT CALIPER (MODEL T) GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
FRONT CALIPER (MODEL T) GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
FRONT CALIPER (MODEL T) GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
prices are in EUR
ref
part #
description
quantity
0
5910033D00
ref: 0
CALIPER ASSEMBLY,FRONT,RIGHT
€ 552.00
1
5930033830
ref: 1
PISTON SET
€ 65.50
2
5930033840
ref: 2
SEAL SET,PISTON
5930033840
€ 26.50
3
5910033850
ref: 3
PAD SET (NAS)
5910033850
€ 55.50
4
5911533D00
ref: 4
SPRING,PAD,R
5911533D00
€ 12.00
5
5911244B00
ref: 5
BOOT,AXLE
5911244B00
€ 8.00
6
5931336500
ref: 6
INSULATOR,AXLE
5931336500
€ 5.50
7
5911633D00
ref: 7
GUIDE,PAD
5911633D00
€ 6.50
8
5912118410
ref: 8
BLEEDER
5912118410
€ 8.00
9
5515666310
ref: 9
CAP,BLEEDER PLUG
5515666310
€ 6.00
10
5914144B01
ref: 10
PIN,PAD
5914144B01
€ 8.00
11
6914245000
ref: 11
CLIP,PAD PIN
6914245000
€ 4.50
12
0155010253
ref: 12
BOLT
0155010253
€ 3.00
11
5915001D00
ref: 11
CARRIER,CALIPER
5915001D00
€ 73.00
12
5912118410
ref: 12
BLEEDER
5912118410
€ 8.00
13
5912218410
ref: 13
CAP,BREATHER
5912218410
€ 6.00
14-1
0712010258
ref: 14-1
MODEL K/L/M/N/P
BOLT
0712010258
€ 4.00
14-2
0712010253
ref: 14-2
MODEL R
BOLT
0712010253
€ 2.50
14-3
0155010253
ref: 14-3
MODEL S
BOLT
0155010253
€ 3.00
