FRAME

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

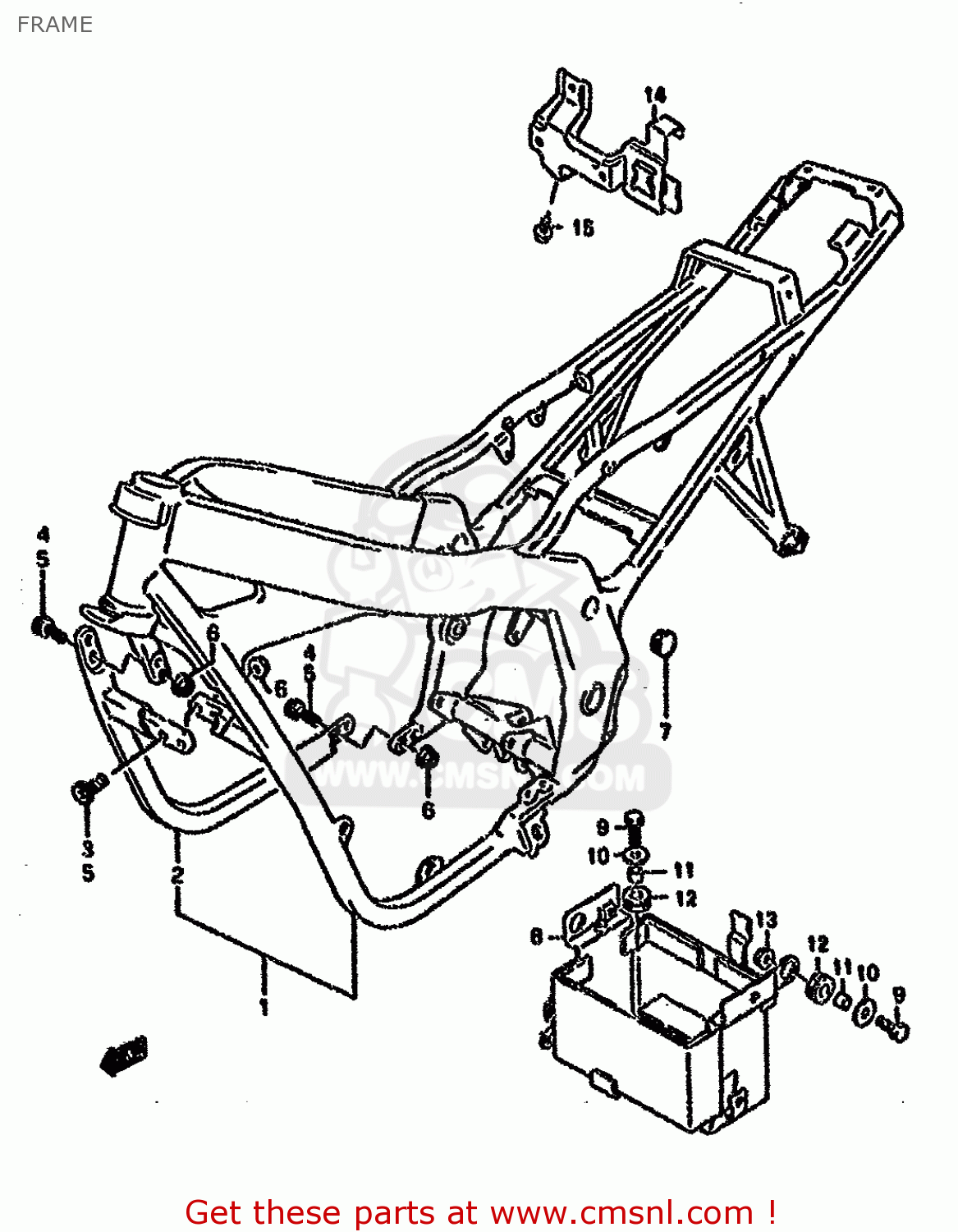

Frame diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

FRAME GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
FRAME GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
FRAME GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
prices are in EUR
ref
part #
description
quantity
1-1
41102018200FP
ref: 1-1
MODEL K
FRAME
€ 1,171.00
1-2
41102018300FP
ref: 1-2
MODEL L
FRAME
€ 1,171.00
1-3
41102018400FP
ref: 1-3
MODEL M/N/P
FRAME
€ 1,171.00
1-4
411020185113L
ref: 1-4
MODEL R/S
FRAME
€ 1,349.50
1-5
41102018600FP
ref: 1-5
MODEL N/P E18,E39
FRAME SET
€ 1,171.00
1-6
411020187013L
ref: 1-6
MODEL R/S E18,E39
FRAME
€ 1,349.50
2
411020187117U
ref: 2
MODEL T
FRAME SET(GRAY)
€ 1,349.50
3
0713010357
ref: 3
MODEL K/L
BOLT
0713010357
€ 3.50
4
0713010307
ref: 4
MODEL K/L
BOLT
0713010307
€ 4.50
5-1
0153710358
ref: 5-1
MODEL M/N/P/R
BOLT
€ 3.50
5-2
0155010357
ref: 5-2
MODEL S/T
BOLT
0155010357
€ 3.50
6
0831931107
ref: 6
NUT
0831931107
€ 3.00
7
4358501D00
ref: 7
CAP,BODY FRAME
4358501D00
€ 5.00
8-1
4154001D00
ref: 8-1
MODEL K
HOLDER,BATTERY
€ 37.00
8-2
4154001D31
ref: 8-2
MODEL L/M/N/P/R/S/T
HOLDER,BATTERY
€ 77.50
9-1
0150006163
ref: 9-1
MODEL K/L/M/N/P/R/S
BOLT
0150006163
€ 2.00
9-2
0911606167
ref: 9-2
MODEL T
BOLT(6X20)
0911606167
€ 2.00
10
0916006059
ref: 10
MODEL K/L/M/N/P/R/S
WASHER,COVER,FRONT
€ 2.00
11-1
0918006103
ref: 11-1
MODEL K/L/M/N/P/R
SPACER(6.2X9X7.5)
0918006103
€ 1.50
11-2
0918006038
ref: 11-2
MODEL S/T
SPACER(6.1X9X7.5)
0918006038
€ 2.00
12
0932008021
ref: 12
CUSHION
0932008021
€ 4.00
13-1
0915906017
ref: 13-1
MODEL K/L/M/N/P
NUT
0915906017
€ 2.50
13-2
0831610063
ref: 13-2
MODEL R/S/T
NUT
0831610063
€ 2.50
14
4741001D00
ref: 14
HOLDER,ELECTRIC PARTS
€ 14.00
15-1
0155006167
ref: 15-1
MODEL K/L/M/N/P
BOLT
0155006167
€ 1.50
15-2
0155006163
ref: 15-2
MODEL R/S/T
BOLT
0155006163
€ 2.50
