CRANKCASE COVER

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

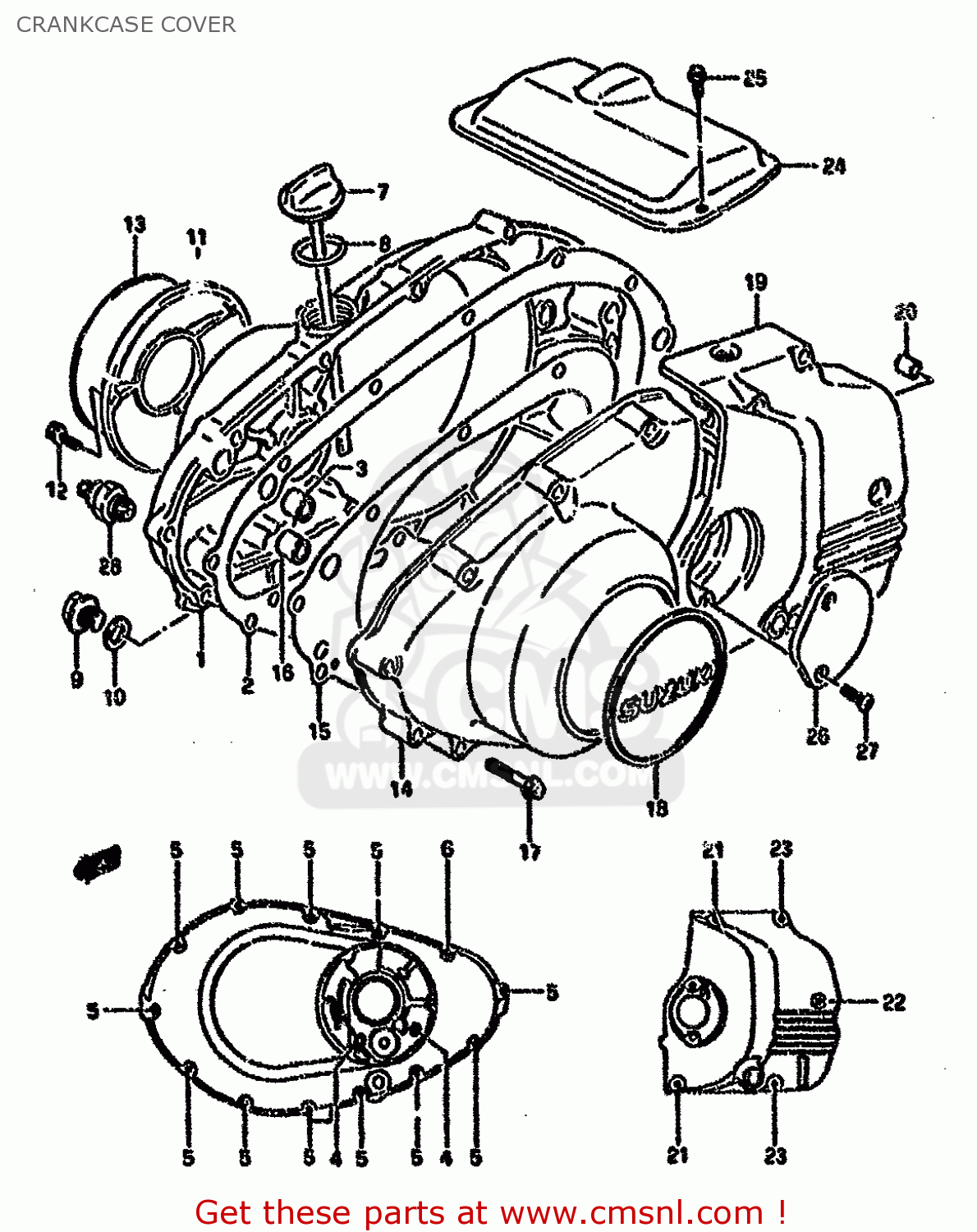

Crankcase cover diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

CRANKCASE COVER GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
CRANKCASE COVER GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
CRANKCASE COVER GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
prices are in EUR
ref
part #
description
quantity
1
1134101D00
ref: 1
COVER,CLUTCH
1134101D00
€ 135.50
2
1148244110
ref: 2
GASKET,CLUTCH COVER (NAS)
1148244110
€ 17.50
3
0421113189
ref: 3
PIN
0421113189
€ 2.50
4
0154706557
ref: 4
BOLT
0154706557
€ 2.50
5-1
0154706357
ref: 5-1
MODEL K
BOLT
0154706357
€ 2.50
5-2
0154706354
ref: 5-2
MODEL L/M/N/P
BOLT 6X35
0154706354
€ 3.00
5-3
0154706357
ref: 5-3
MODEL R/S/T
BOLT
0154706357
€ 2.50
6-1
0154706257
ref: 6-1
MODEL K
BOLT
0154706257
€ 2.50
6-2
0154706254
ref: 6-2
MODEL L/M/N/P
BOLT 6X25
0154706254
€ 2.50
6-3
0154706257
ref: 6-3
MODEL R/S/T
BOLT
0154706257
€ 2.50
7
1197044110
ref: 7
GAUGE,OIL LEVEL
1197044110
€ 20.50
8
0928026006
ref: 8
-09280-27002
O RING(D:3.1,ID:26.4)
0928026006
€ 3.00
9-1
0924714012
ref: 9-1
MODEL K/L/M/N/P
PLUG (14X12)
0924714012
€ 3.50
9-2
0924714026
ref: 9-2
MODEL R/S/T
PLUG(14X12)
0924714026
€ 3.50
10
0916814002
ref: 10
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
11
1138101D00
ref: 11
COVER,CONTACT BREAKER
1138101D00
€ 41.50
12-1
0154705167
ref: 12-1
MODEL K
BOLT
0154705167
€ 2.00
12-2
0154705165
ref: 12-2
MODEL L/M/N/P
BOLT 5X16
€ 2.00
12-3
0154705167
ref: 12-3
MODEL R/S/T
BOLT
0154705167
€ 2.00
13
6823301D00
ref: 13
EMBLEM,CONTACT BREAKER COVER
6823301D00
€ 21.00
14
1135101D00
ref: 14
COVER,MAGNETO
1135101D00
€ 171.00
15
1148344110
ref: 15
GASKET,MAGNETO COVER (NAS)
1148344110
€ 12.50
16
0421113189
ref: 16
PIN
0421113189
€ 2.50
17-1
0154706357
ref: 17-1
MODEL K
BOLT
0154706357
€ 2.50
17-2
0154706354
ref: 17-2
MODEL L/M/N/P
BOLT 6X35
0154706354
€ 3.00
17-3
0154706357
ref: 17-3
MODEL R/S/T
BOLT
0154706357
€ 2.50
18
6823301D00
ref: 18
EMBLEM,CONTACT BREAKER COVER
6823301D00
€ 21.00
19
1136101D00
ref: 19
COVER,ENGINE SPROCKET
€ 99.50
20
0421109129
ref: 20
PIN
0421109129
€ 2.00
21-1
0154706657
ref: 21-1
MODEL K
BOLT
0154706657
€ 2.00
21-2
0154706654
ref: 21-2
MODEL L/M/N/P
BOLT
€ 2.00
21-3
0154706657
ref: 21-3
MODEL R/S/T
BOLT
0154706657
€ 2.00
22-1
0154706507
ref: 22-1
MODEL K
BOLT
0154706507
€ 2.50
22-2
0154706505
ref: 22-2
MODEL L/M/N/P
BOLT 6X50
0154706505
€ 3.50
22-3
0154706507
ref: 22-3
MODEL R/S/T
BOLT
0154706507
€ 2.50
23-1
0154706407
ref: 23-1
MODEL K
BOLT
0154706407
€ 2.50
23-2
0154706404
ref: 23-2
MODEL L/M/N/P
BOLT 6X40
€ 3.00
23-3
0154706407
ref: 23-3
MODEL R/S/T
BOLT
0154706407
€ 2.50
24
1138244111
ref: 24
COVER,STARTER MOTOR
1138244111
€ 20.50
25-1
0154705084
ref: 25-1
MODEL K/L/M/N/P
BOLT
0154705084
€ 2.50
25-2
0154705087
ref: 25-2
MODEL R/S
BOLT
0154705087
€ 2.00
25-3
0154705083
ref: 25-3
MODEL T
BOLT
0154705083
€ 2.50
26
1138701D00
ref: 26
CAP,CLUTCH RELEASE ADJUST
€ 22.50
27-1
0212205127
ref: 27-1
MODEL K
SCREW
0212205127
€ 2.50
27-2
0213205124
ref: 27-2
MODEL L/M/N/P
SCREW
€ 2.00
27-3
0212205127
ref: 27-3
MODEL R/S/T
SCREW
0212205127
€ 2.50
28
3782033D00
ref: 28
-37820-33200
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
