Buy Suzuki GS Parts Online


CRANKSHAFT BALANCER

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

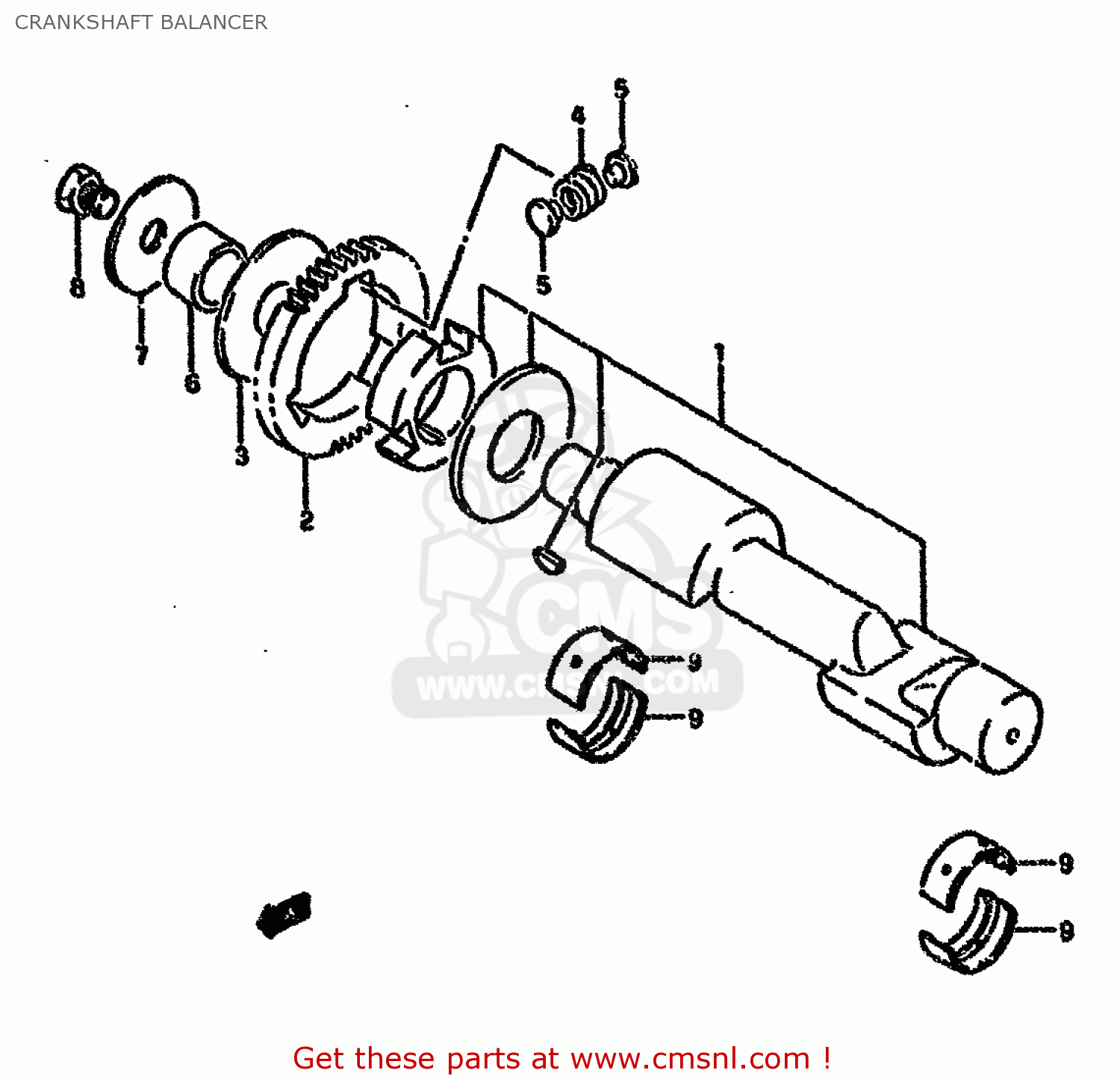

Crankshaft balancer diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

CRANKSHAFT BALANCER GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
CRANKSHAFT BALANCER GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
CRANKSHAFT BALANCER GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
prices are in EUR
ref
part #
description
quantity
1-1
1265044100
ref: 1-1
MODEL K/L-12650-01D0
BALANCER,CRANKSHAFT
€ 223.00
1-2
1265001D01
ref: 1-2
MODEL M/N/P/R/S/T
BALANCER,CRANK
1265001D01
€ 223.00
2
1266644000
ref: 2
GEAR,CRANK BALANCER DRIVE
1266644000
€ 128.00
3
0916024026
ref: 3
WASHER(24X70X3)
0916024026
€ 12.00
4
0944015007
ref: 4
SPRING
0944015007
€ 23.50
5
0920108001
ref: 5
PIN
0920108001
€ 3.50
6-1
0918024004
ref: 6-1
MODEL K/L/M/N/P
SPACER
€ 7.00
6-2
0918024006
ref: 6-2
MODEL K/L/M/N/P
SPACER
0918024006
€ 7.00
6-3
0918024009
ref: 6-3
MODEL R/S/T
SPACER(24X30.5X12.5)
0918024009
€ 7.00
7
0916012039
ref: 7
WASHER(12X50X3)
0916012039
€ 8.00
8
0150012203
ref: 8
BOLT
0150012203
€ 3.00
9-1
1222901D010A0
ref: 9-1
BEARING,CRANKSHAFT(GREEN)
1222901D010A0
€ 10.50
9-2
1222901D010B0
ref: 9-2
BEARING,CRANKSHAFT(BLACK)
1222901D010B0
€ 11.00
9-3
1222901D010C0
ref: 9-3
BEARING,CRANKSHAFT(BROWN)
1222901D010C0
€ 11.00
9-4
1222901D010D0
ref: 9-4
BEARING,CRANKSHAFT(YELLOW)
1222901D010D0
€ 11.00
