STARTING MOTOR

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

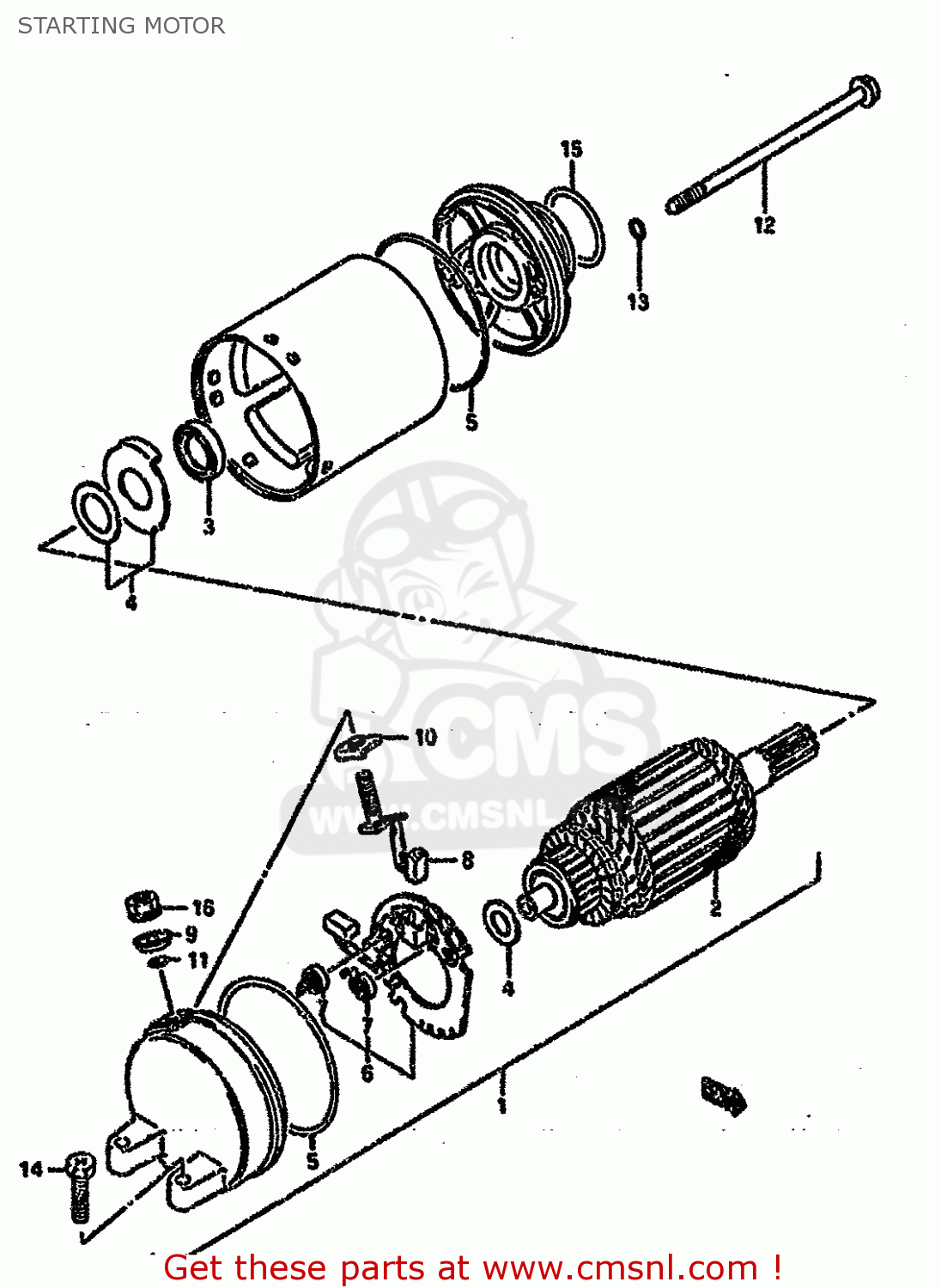

Starting motor diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

STARTING MOTOR GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
STARTING MOTOR GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
STARTING MOTOR GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
prices are in EUR
ref
part #
description
quantity
1-1
3110027A01H17
ref: 1-1
MODEL K/L/M/N/P
MOTOR ASSEMBLY,STARTING
€ 530.00
1-2
3110020C00
ref: 1-2
MODEL R/S/T
MOTOR ASSEMBLY,STARTING
€ 530.00
2
3131027A01H17
ref: 2
ARMATURE
3131027A01H17
€ 222.00
3
3115343400
ref: 3
SEAL,OIL
3115343400
€ 21.50
4
3117043400
ref: 4
SHIM SET,STARTING MOTOR
3117043400
€ 4.00
5
3126444110
ref: 5
O RING
3126444110
€ 8.50
6
3113227A01
ref: 6
HOLDER,BRUSH
3113227A01
€ 51.00
7
3113565010
ref: 7
SPRING
3113565010
€ 3.50
8
3113038300
ref: 8
BRUSH SUB ASSY,STARTING MOTOR
3113038300
€ 14.00
9
3117238300
ref: 9
BUSHING
3117238300
€ 4.50
10
3117138300
ref: 10
BUSH,B
3117138300
€ 6.50
11
3114338300
ref: 11
O RING
3114338300
€ 4.00
12
3128188C00
ref: 12
BOLT
3128188C00
€ 9.50
13
3115638300
ref: 13
O RING
3115638300
€ 3.50
14
0912806024
ref: 14
SCREW (6X25)
0912806024
€ 3.00
15
0928024003
ref: 15
O RING(D:3,ID:24.5)
0928024003
€ 2.00
16
0836135066
ref: 16
NUT
€ 2.00
