STEERING STEM

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

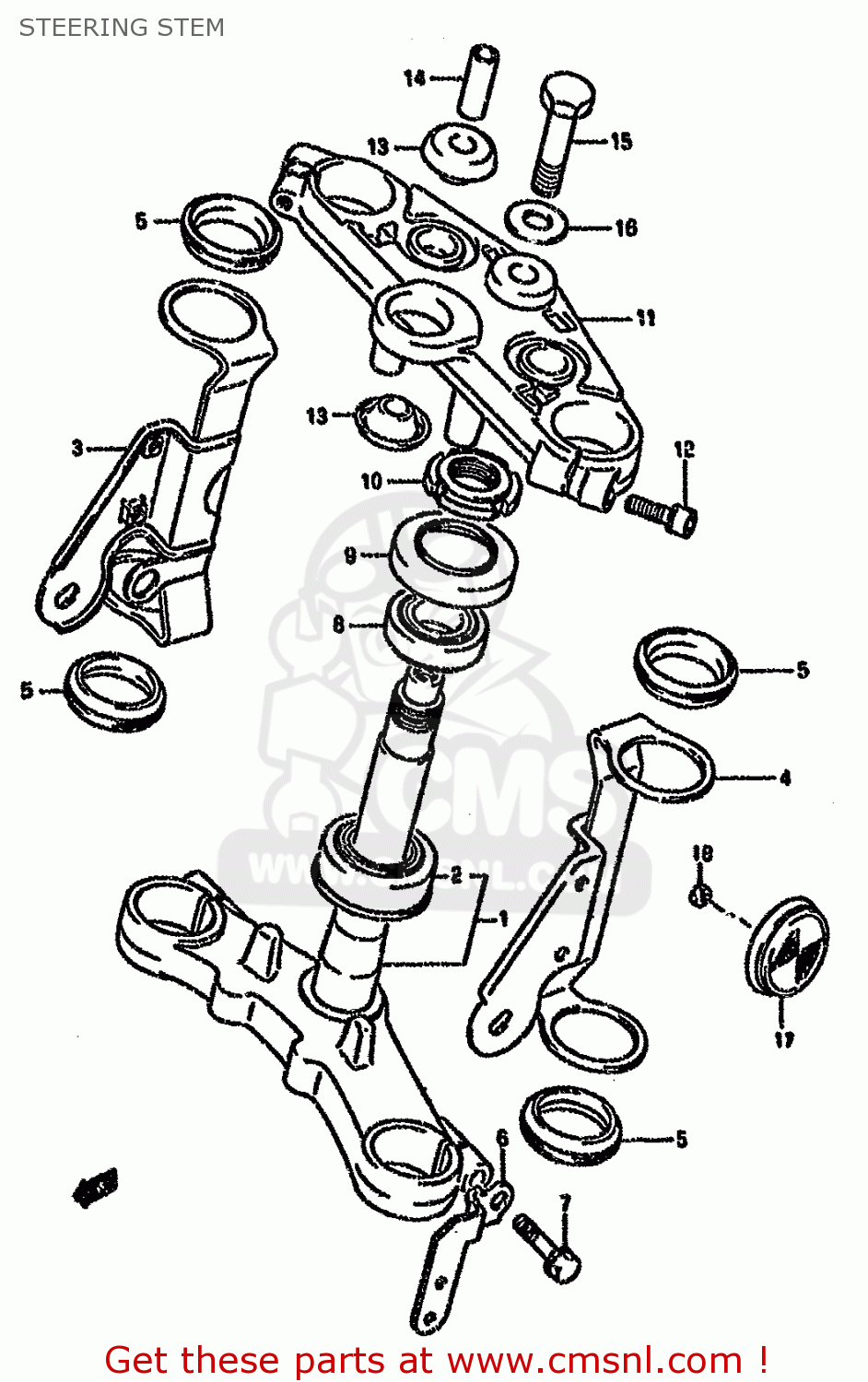

Steering stem diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

STEERING STEM GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
STEERING STEM GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
STEERING STEM GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
prices are in EUR
ref
part #
description
quantity
1-1
5141001D00
ref: 1-1
MODEL K/L/M/N
STEM,STEERING
€ 288.00
1-2
5141001D90
ref: 1-2
MODEL P/R/S
STEM,STEERING
5141001D90
€ 288.00
1-3
5141001D91
ref: 1-3
MODEL T
STEM,STEERING
5141001D91
€ 288.00
2
0926530009
ref: 2
BEARING(30X55X17)
0926530009
€ 49.50
3
5153001D01
ref: 3
BRACKET,HEADLAMP,R
5153001D01
€ 34.00
4
5154001D01
ref: 4
BRACKET,HEADLAMP,L
5154001D01
€ 26.00
5
5155334300
ref: 5
CUSHION,HEADLAMP BRACKET
5155334300
€ 4.50
6-1
3595601D10
ref: 6-1
E39
BRACKET,FR SIDE RR,R
3595601D10
€ 4.50
6-2
3595701D10
ref: 6-2
E39
BRACKET,FR SIDE RR,L
3595701D10
€ 8.50
7
5135201D00
ref: 7
BOLT,STEERING STEM
5135201D00
€ 4.00
8
0926525008
ref: 8
TAPER,ROLLER BEARING
0926525008
€ 48.50
9-1
5164340502
ref: 9-1
MODEL K/L/M/N
DUST SEAL,STEERING UPR
5164340502
€ 8.00
9-2
5164349001
ref: 9-2
MODEL P
DUST SEAL,STEERING,UPPER
5164349001
€ 7.50
9-3
5164349002
ref: 9-3
MODEL R/S/T
SEAL,STEERING UPR DUST
5164349002
€ 7.50
10
5163128000
ref: 10
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
11
5131101D00
ref: 11
HEAD,STEERING STEM
5131101D00
€ 300.50
12
0713008303
ref: 12
BOLT
0713008303
€ 3.00
13-1
5624042A00
ref: 13-1
MODEL K/L/M/N/P/R
RUBBER,HANDLE HOLDER
5624042A00
€ 23.00
13-2
5624001D00
ref: 13-2
MODEL S/T
CUSHION,UPR BRACKET
5624001D00
€ 23.00
14
5624301D00
ref: 14
SPACER,STEERING STEM HEAD
5624301D00
€ 6.00
15
5135305C00
ref: 15
BOLT
5135305C00
€ 10.50
16-1
5135622012
ref: 16-1
MODEL K/L
WASHER,STEM HEAD(10.5X30X3.2)
5135622012
€ 4.00
16-2
5135601D30
ref: 16-2
MODEL M/N/P
WASHER
5135601D30
€ 4.00
16-3
5135622012
ref: 16-3
MODEL R/S/T
WASHER,STEM HEAD(10.5X30X3.2)
5135622012
€ 4.00
17
3595014A00
ref: 17
E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
18
0831620053
ref: 18
E39
NUT
0831620053
€ 2.00
