CRANKSHAFT

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

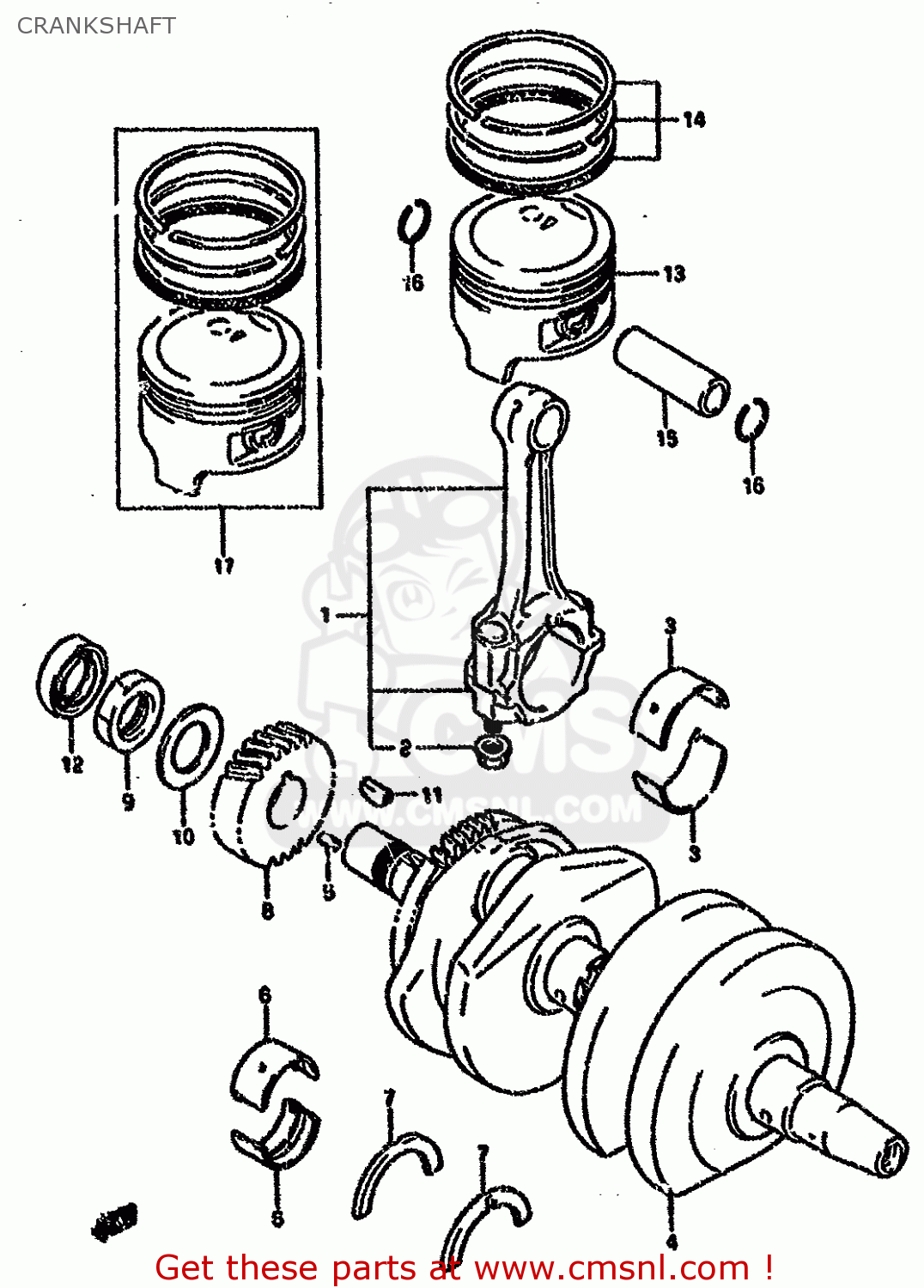

Crankshaft diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

CRANKSHAFT GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
CRANKSHAFT GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
CRANKSHAFT GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
prices are in EUR
ref
part #
description
quantity
1
1216044100
ref: 1
ROD ASSEMBLY,CONNECTING
1216044100
€ 135.50
2
0915908033
ref: 2
NUT
0915908033
€ 2.50
3-1
1216401D010A0
ref: 3-1
BEARING,CRANK PIN
1216401D010A0
€ 13.50
3-2
1216401D010B0
ref: 3-2
BEARING,CRANK PIN
1216401D010B0
€ 14.50
3-3
1216401D010C0
ref: 3-3
BEARING,CRANK PIN
1216401D010C0
€ 14.50
3-4
1216401D010D0
ref: 3-4
BEARING,CRANK PIN
1216401D010D0
€ 15.00
3-5
1216444100025
ref: 3-5
OPT
BEARING,CRANK PIN(US:0.25)
1216444100025
€ 15.50
3-6
1216444100050
ref: 3-6
OPT
BEARING,CRANK PIN(US:0.5)
1216444100050
€ 14.50
4-1
1222001D00
ref: 4-1
MODEL K/L
CRANKSHAFT
€ 1,167.50
4-2
1222001D02
ref: 4-2
MODEL M/N/P/R/S/T
CRANKSHAFT
1222001D02
€ 1,167.50
5
0920203016
ref: 5
PIN
0920203016
€ 1.50
6-1
1222901D010A0
ref: 6-1
BEARING,CRANKSHAFT(GREEN)
1222901D010A0
€ 10.50
6-2
1222901D010B0
ref: 6-2
BEARING,CRANKSHAFT(BLACK)
1222901D010B0
€ 11.00
6-3
1222901D010C0
ref: 6-3
BEARING,CRANKSHAFT(BROWN)
1222901D010C0
€ 11.00
6-4
1222901D010D0
ref: 6-4
BEARING,CRANKSHAFT(YELLOW)
1222901D010D0
€ 11.00
6-5
1222944100025
ref: 6-5
OPT
BEARING,CRANKSHAFT(US:0.25)
1222944100025
€ 21.50
6-6
1222944100050
ref: 6-6
OPT
BEARING,CRANKSHAFT(US:0.5)
1222944100050
€ 9.50
7
1222844106
ref: 7
BEARING,CRANK THRUST
1222844106
€ 8.50
8
2111144100
ref: 8
GEAR,PRIMARY DRIVE NO.28
2111144100
€ 57.50
9
0914024007
ref: 9
NUT
0914024007
€ 4.50
10
0916425001
ref: 10
WASHER
0916425001
€ 4.50
11
0834131059
ref: 11
KEY
0834131059
€ 3.00
12
0928322015
ref: 12
SEAL,OIL(22X40X8)
0928322015
€ 10.50
13
1211101D010F0
ref: 13
PISTON (74.00MM)
1211101D010F0
€ 77.00
14
1214001D20
ref: 14
RING SET,PISTON
1214001D20
€ 57.00
15
1215145501
ref: 15
PIN,PISTON (18MM)
1215145501
€ 14.00
16
0938118002A
ref: 16
CIRCLIP,PISTON PIN
0938118002A
€ 1.50
17-1
1210001D00050
ref: 17-1
OPT
PISTON SET(OS:0.5)
1210001D00050
€ 112.50
17-2
1210001D00100
ref: 17-2
OPT
PISTON SET (OS:1.0)
€ 115.00
