REAR COMBINATION LAMP (MODEL T)

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

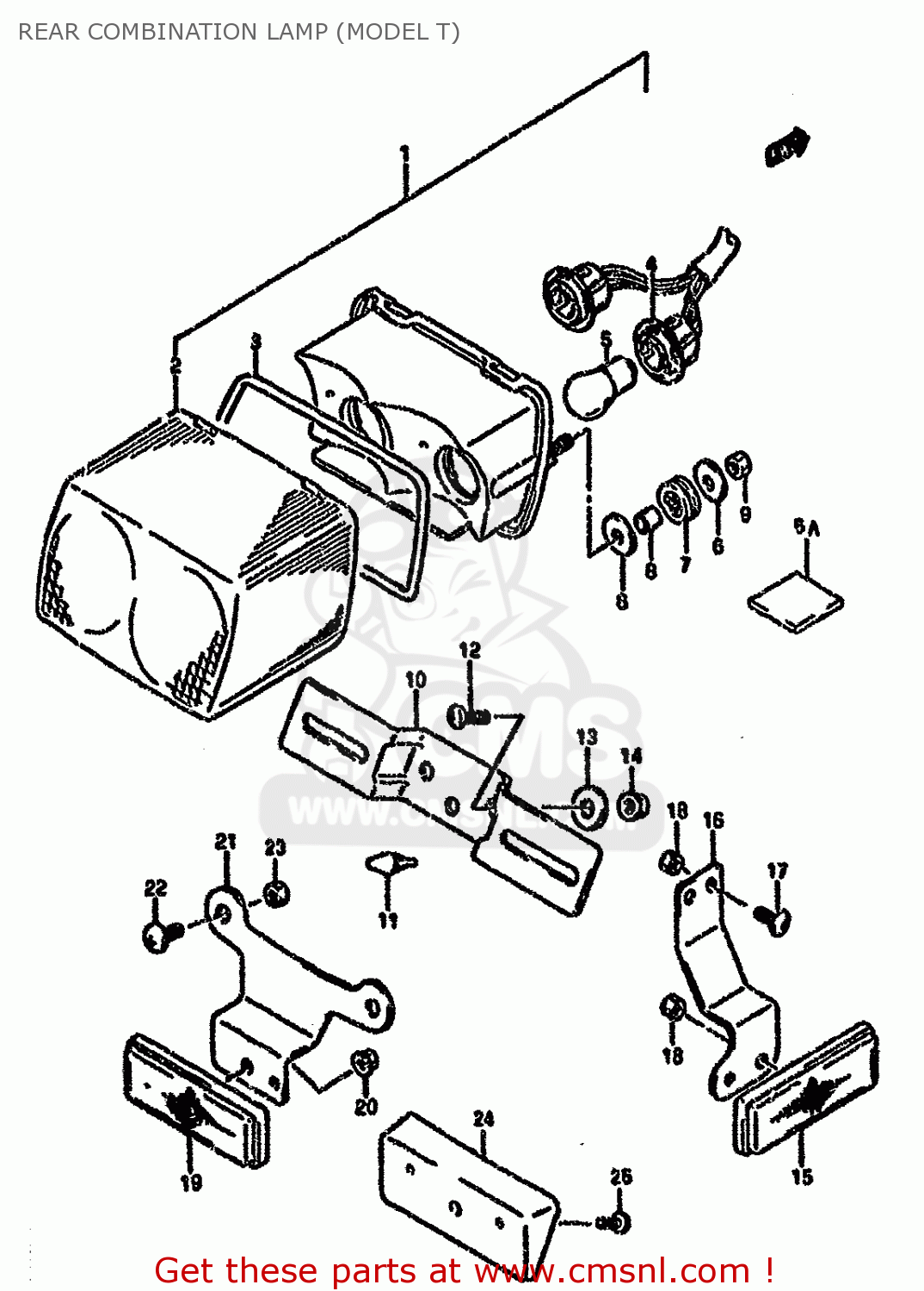

Rear combination lamp (model t) diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

REAR COMBINATION LAMP (MODEL T) GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
REAR COMBINATION LAMP (MODEL T) GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
REAR COMBINATION LAMP (MODEL T) GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
prices are in EUR
ref
part #
description
quantity
1
3571001D01
ref: 1
LAMP ASSY,RR C
€ 134.50
2
3571201D00
ref: 2
LENS
3571201D00
€ 45.00
3
3571301D00
ref: 3
GASKET (NAS)
3571301D00
€ 7.00
4
3571801D00
ref: 4
SOCKET
€ 40.00
5
0947112083
ref: 5
BULB(12V21/5W)
0947112083
€ 6.00
5A
3573310D00
ref: 5A
CUSHION,REAR LENS
€ 3.00
6
0916006077
ref: 6
WASHER(6.5X20X1.2)
0916006077
€ 2.00
7
0932009009
ref: 7
CUSHION
0932009009
€ 5.00
8
0918006152
ref: 8
SPACER
0918006152
€ 3.00
9
0831000063
ref: 9
NUT 6MM
0831000063
€ 2.00
10
3592700A10
ref: 10
BRACKET,LICENSE PLATE
3592700A10
€ 6.00
11
0932106029
ref: 11
CUSHION
€ 3.00
12
0214206163
ref: 12
SCREW
0214206163
€ 2.50
13
0916006077
ref: 13
WASHER(6.5X20X1.2)
0916006077
€ 2.00
14
0831000063
ref: 14
NUT 6MM
0831000063
€ 2.00
15
3595043431
ref: 15
E39
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
16
3597701D11
ref: 16
E39
BRACKET,RR SIDE REFLECTOR
3597701D11
€ 5.50
17
0214205123
ref: 17
E39
SCREW 5X12
0214205123
€ 1.50
18
0831000053
ref: 18
E39
NUT
€ 2.50
19
3597024D60
ref: 19
REFLECTOR ASSY,RR
3597024D60
€ 19.50
20-1
0831000053
ref: 20-1
NUT
€ 2.50
20-2
0831610053
ref: 20-2
E18,E22,E25,E39
NUT
0831610053
€ 2.50
21
3597401D00
ref: 21
BRACKET,RR RR
3597401D00
€ 3.50
22
0214206123
ref: 22
SCREW 6X12
0214206123
€ 2.00
23
0831000063
ref: 23
NUT 6MM
0831000063
€ 2.00
24
3597712C00
ref: 24
E18,E22,E25,E39
SPACER,RR RR
3597712C00
€ 8.00
25
0354104123
ref: 25
SCREW
0354104123
€ 1.50
16-3
3597701D11
ref: 16-3
MODEL R/S E39
BRACKET,RR SIDE REFLECTOR
3597701D11
€ 5.50
17-1
0214205124
ref: 17-1
MODEL K/L/M/N/P E39
SCREW, FRONT & REAR
€ 1.50
17-2
0214205123
ref: 17-2
MODEL R/S E39
SCREW 5X12
0214205123
€ 1.50
18-1
0831626055
ref: 18-1
MODEL K/L/M/N/P E39
NUT
0831626055
€ 2.00
18-2
0831000053
ref: 18-2
MODEL R/S E39
NUT
€ 2.50
19-1
3597000A21
ref: 19-1
MODEL K/L/M/N/P/R
REFLECTOR ASSEMBLY,REAR
3597000A21
€ 22.00
19-2
3597024D60
ref: 19-2
MODEL S
REFLECTOR ASSY,RR
3597024D60
€ 19.50
19-3
3597024D60
ref: 19-3
MODEL P E24
REFLECTOR ASSY,RR
3597024D60
€ 19.50
20-1
0831626055
ref: 20-1
MODEL K/L/M/N
NUT
0831626055
€ 2.00
20-2
0831011056
ref: 20-2
MODEL P/R
NUT
€ 2.50
20-3
0831000053
ref: 20-3
MODEL S
NUT
€ 2.50
21
3597401D00
ref: 21
BRACKET,RR RR
3597401D00
€ 3.50
22-1
0214206125
ref: 22-1
MODEL K/L/M/N/P
SCREW 6X12
0214206125
€ 2.00
22-2
0214206123
ref: 22-2
MODEL R/S
SCREW 6X12
0214206123
€ 2.00
23
0832101063
ref: 23
LOCK WASHER
0832101063
€ 2.00
24-1
0831626065
ref: 24-1
MODEL K/L/M/N
NUT
0831626065
€ 2.00
24-2
0831012066
ref: 24-2
MODEL P/R
NUT
0831012066
€ 2.00
24-3
0831000063
ref: 24-3
MODEL S
NUT 6MM
0831000063
€ 2.00
25
0832121055
ref: 25
WASHER,LOCK
0832121055
€ 3.00
26
3597712C00
ref: 26
E15,E16,E17,E18,E22,
SPACER,RR RR
3597712C00
€ 8.00
27-1
0354104125
ref: 27-1
MODEL K/L/M/N/P
SCREW
0354104125
€ 1.50
27-2
0354104123
ref: 27-2
MODEL R/S
SCREW
0354104123
€ 1.50
28
0832221045
ref: 28
WASHER
€ 5.00
