CYLINDER HEAD COVER

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

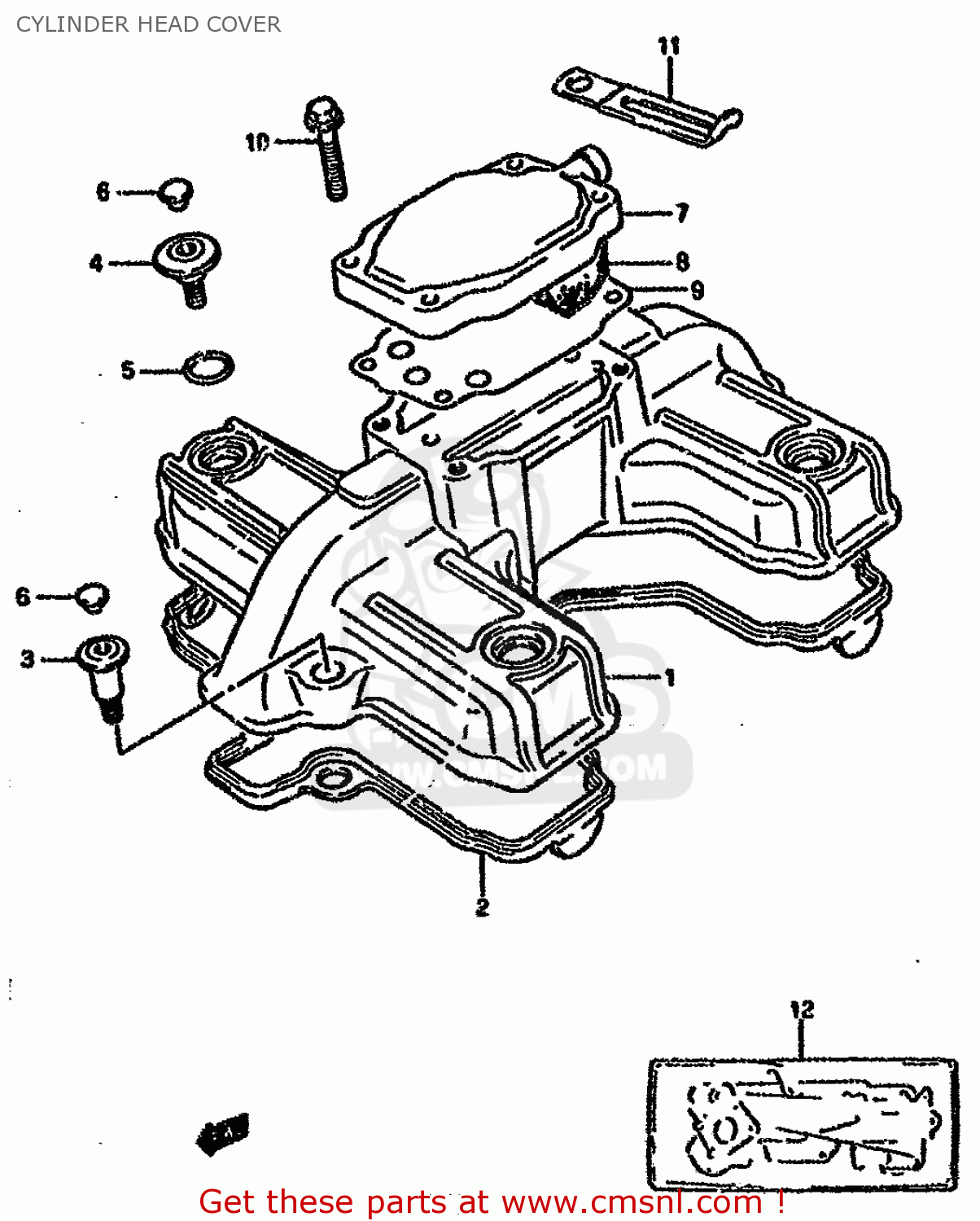

Cylinder head cover diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

prices are in EUR

ref

part #

description

quantity

1117101D02
ref: 1

COVER,CYLINDER HEAD

€ 201.00

1117315502
ref: 2

GASKET,CYLINDER HEAD COVER (NAS)

€ 32.50

3-1

0910607002
ref: 3-1
MODEL K/L

BOLT(7X19)

€ 7.00

3-2

0910607010
ref: 3-2
MODEL M/N/P/R/S/T

BOLT(7X31)

€ 4.50

4-1

0910607001
ref: 4-1
MODEL K/L

BOLT(7X5.5)

€ 6.00

4-2

0910607009
ref: 4-2
MODEL M/N/P/R/S/T

BOLT(7X17.5)

€ 4.50

0928015006
ref: 5

O RING(D:1.9,ID:14.5)

€ 3.00

0925006008
ref: 6
MODEL K/L/M

CAP(OD:10)

€ 3.00

1117633201
ref: 7

COVER,BREATHER

€ 25.50

8-1

1118615500
ref: 8-1
MODEL K/L/M/N/P

SEPARATOR,OIL BREATHER CO

€ 6.00

8-2

1118615501
ref: 8-2
MODEL R/S/T

SEPARATOR,OIL BREATHER COVER

€ 6.00

1117715510H17
ref: 9
-11177-15510

GASKET,BREATHER COVER (NAS)

€ 7.50

10-1

0151706257
ref: 10-1
MODEL K/L/M/N/P

BOLT 6X25

€ 2.50

10-2

0155006253
ref: 10-2
MODEL R/S/T

BOLT

€ 2.50

11-1

0940406413
ref: 11-1
MODEL K/L/M/N/P/R/S

CLAMP

€ 2.50

11-2

0940406431
ref: 11-2
MODEL T

CLAMP(L:65)

€ 2.50

1140001861
ref: 12

GASKET SET (NAS)

€ 227.50
