FUEL COCK

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

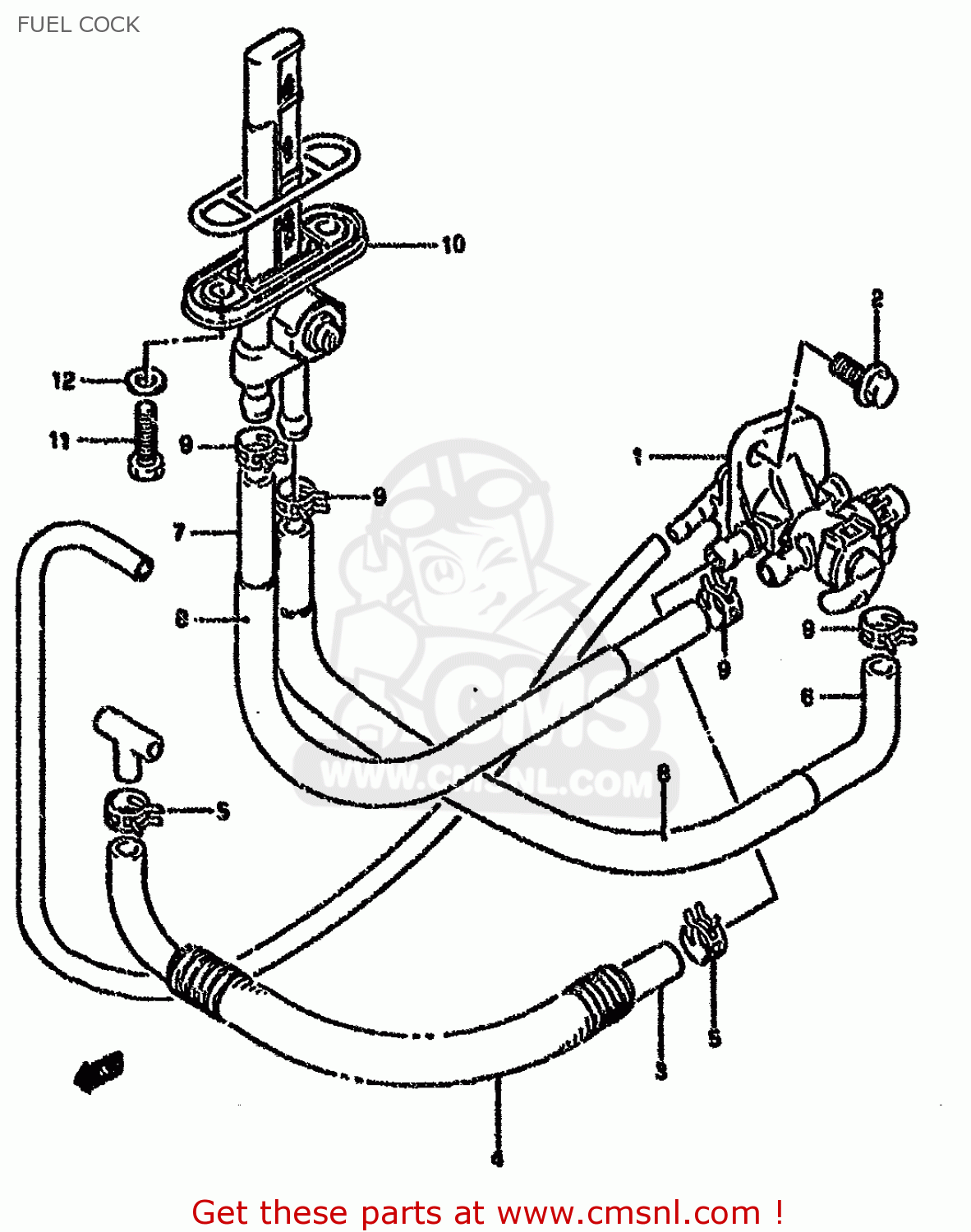

Fuel cock diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

FUEL COCK GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
FUEL COCK GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
FUEL COCK GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
prices are in EUR
ref
part #
description
quantity
1-1
4430001D00
ref: 1-1
MODEL K
COCK ASSEMBLY,FUEL
€ 109.50
1-2
4430001D20
ref: 1-2
MODEL L/M/N/P/R/S
COCK ASSEMBLY,FUEL
€ 109.50
1-3
4430001D21
ref: 1-3
MODEL T
COCK ASSY,FUEL
4430001D21
€ 109.50
2-1
0155006127
ref: 2-1
MODEL K/L/M/N/P/R
BOLT
0155006127
€ 2.50
2-2
0155006123
ref: 2-2
MODEL S/T
BOLT
0155006123
€ 2.50
3
0935470113600
ref: 3
HOSE(7X11X600)
0935470113600
€ 17.50
4
4431134C00
ref: 4
TUBE,FUEL HOSE
4431134C00
€ 4.50
5-1
0940111410
ref: 5-1
MODEL K/L/M/N/P/R
(CA) CLIP
0940111410
€ 2.50
5-2
0940111413
ref: 5-2
MODEL S/T
CLIP
0940111413
€ 2.50
6
0935470113600
ref: 6
HOSE(7X11X600)
0935470113600
€ 17.50
7
4444101D00
ref: 7
HOSE,FUEL RESERVE
4444101D00
€ 14.50
8-1
4446101D00
ref: 8-1
MODEL K
PROTECTOR,FUEL HOSE
€ 8.50
8-2
4446101D01
ref: 8-2
MODEL L/M/N/P/R/S/T
PROTECTOR,FUEL HOSE
4446101D01
€ 8.50
9-1
0940111410
ref: 9-1
MODEL K/L/M/N/P/R
(CA) CLIP
0940111410
€ 2.50
9-2
0940111413
ref: 9-2
MODEL S/T
CLIP
0940111413
€ 2.50
10
4430001D10
ref: 10
COCK ASSY,FUEL NO.1
4430001D10
€ 129.50
11
4434828070
ref: 11
O RING,FUEL COCK
4434828070
€ 4.50
12-1
0912806006
ref: 12-1
MODEL K/L/M/N/P/R/S
BOLT(6X20)
0912806006
€ 2.00
12-2
0912806057
ref: 12-2
MODEL T
BOLT(6X20)
0912806057
€ 2.00
13
0916806026
ref: 13
GASKET(6.4X11.5X0.8) (NAS)
0916806026
€ 3.50
