FOOTREST

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

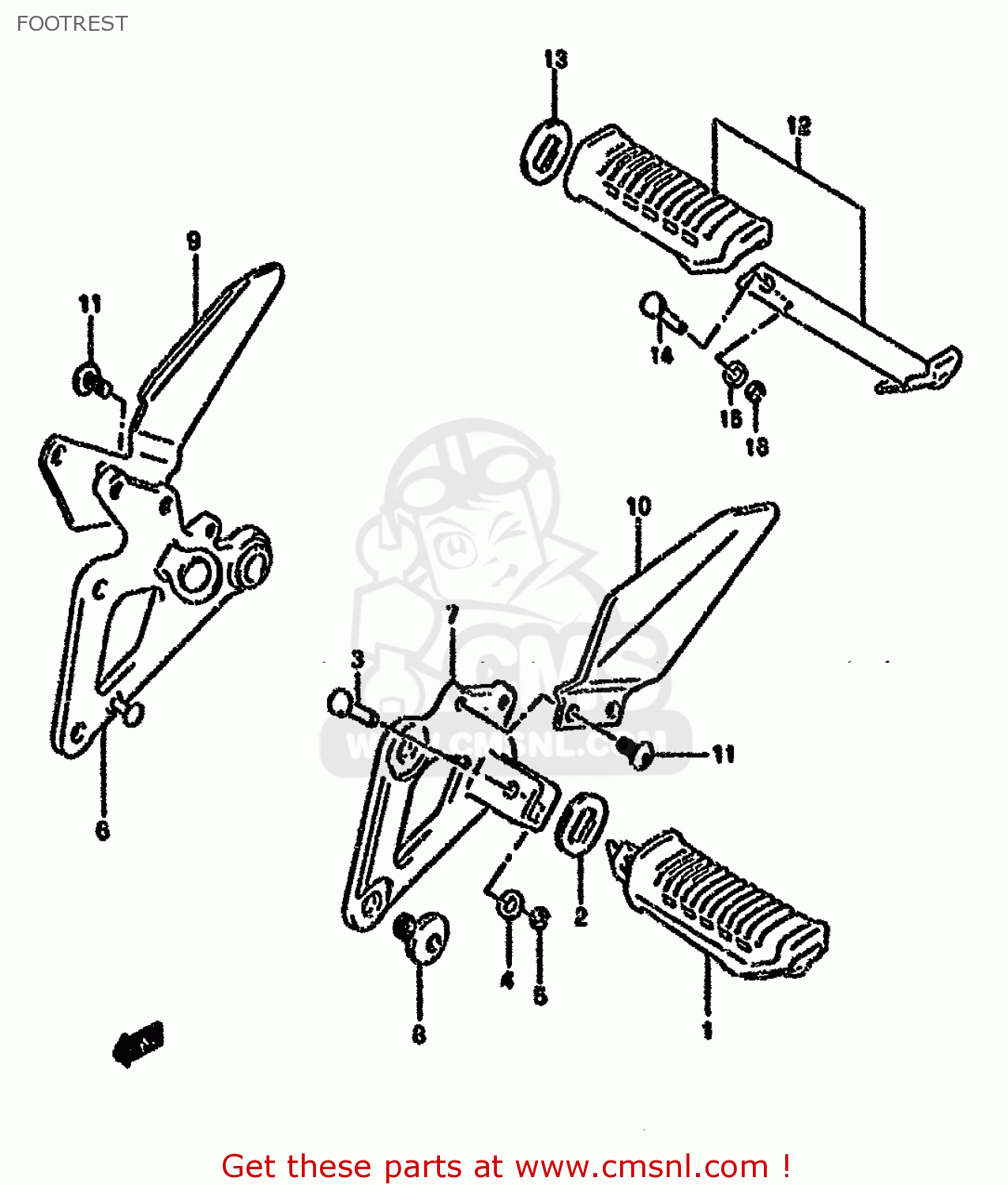

Footrest diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

FOOTREST GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
FOOTREST GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
FOOTREST GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
prices are in EUR
ref
part #
description
quantity
1-1
4355001D00
ref: 1-1
RUBBER,FR FOOTREST,R
4355001D00
€ 32.00
1-2
4356001D00
ref: 1-2
RUBBER,FR FOOTREST,L
4356001D00
€ 31.50
2
4363134A01
ref: 2
WASHER,FOOTREST RUBBER
4363134A01
€ 6.50
3-1
0920806003
ref: 3-1
MODEL K/L
PIN
0920806003
€ 4.50
3-2
8725985510
ref: 3-2
MODEL M/N/P/R
PIN
8725985510
€ 4.50
3-3
0920806005
ref: 3-3
MODEL S/T
PIN
0920806005
€ 3.00
4-1
0832211068
ref: 4-1
MODEL K/L/M/N/P/R
WASHER 6MM
€ 2.00
4-2
0832201067
ref: 4-2
MODEL S
WASHER
0832201067
€ 2.00
5
0833211046
ref: 5
E RING
€ 2.00
6-1
4351001D000FP
ref: 6-1
MODEL K/L/M/N/P
BRACKET COMP,FRONT FOOTREST
€ 111.00
6-2
4351001D0013L
ref: 6-2
MODEL R/S
BRACKET,FR FOOTREST,R
4351001D0013L
€ 111.00
6-3
4351001D0017U
ref: 6-3
MODEL T
BRACKET COMP,FRONT FOOTREST
€ 111.00
7-1
4352001D000FP
ref: 7-1
MODEL K/L/M/N/P
BRACKET,FR FOOTREST,L
4352001D000FP
€ 59.00
7-2
4352001D0013L
ref: 7-2
MODEL R/S
BRACKET,FR FOOTREST,L
4352001D0013L
€ 52.00
7-3
4352001D0017U
ref: 7-3
MODEL T
BRACKET COMP,FRONT FOOTREST
€ 52.00
8-1
0910608089
ref: 8-1
MODEL K
BOLT(8X25)
0910608089
€ 9.00
8-2
0910608094
ref: 8-2
MODEL L/M/N/P/R/S/T
BOLT(8X20)
0910608094
€ 8.00
9-1
4358601D00
ref: 9-1
MODEL K/L
GUARD,FRONT FOOTREST,RIGHT
€ 44.00
9-2
4358601D01
ref: 9-2
MODEL M/N/P
GUARD,FRONT FOOTREST,RIGHT
€ 44.00
9-3
4358601D10
ref: 9-3
MODEL R/S/T
GUARD,FR FOOTREST,R
4358601D10
€ 44.00
10-1
4359601D00
ref: 10-1
MODEL K/L
GUARD,FRONT FOOTREST,LEFT
€ 44.00
10-2
4359601D01
ref: 10-2
MODEL M/N/P
GUARD,FRONT FOOTREST,LEFT
€ 44.00
10-3
4359601D10
ref: 10-3
MODEL R/S/T
GUARD,FR FOOTREST,L
4359601D10
€ 44.00
11-1
0913906031
ref: 11-1
MODEL K
SCREW
0913906031
€ 3.00
11-2
0913906055
ref: 11-2
MODEL L
SCREW(6X10)
0913906055
€ 2.50
11-3
0913906062
ref: 11-3
MODEL M/N/P/R/S/T
SCREW(6X12)
0913906062
€ 3.00
12-1
4360012B00
ref: 12-1
FOOTREST ASSY,PILLION,R
4360012B00
€ 20.00
12-2
4370012B00
ref: 12-2
FOOTREST ASSY,PILLION,L
4370012B00
€ 22.00
13
4363134A01
ref: 13
WASHER,FOOTREST RUBBER
4363134A01
€ 6.50
14-1
0920806003
ref: 14-1
MODEL K/L
PIN
0920806003
€ 4.50
14-2
8725985510
ref: 14-2
MODEL M/N/P/R
PIN
8725985510
€ 4.50
14-3
0920806005
ref: 14-3
MODEL S/T
PIN
0920806005
€ 3.00
15-1
0832201067
ref: 15-1
MODEL K/L/M/N/P/R
WASHER
0832201067
€ 2.00
15-2
0832201063
ref: 15-2
MODEL S
WASHER
0832201063
€ 2.00
16
0833211046
ref: 16
E RING
€ 2.00
