HANDLEBAR (MODEL T)

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

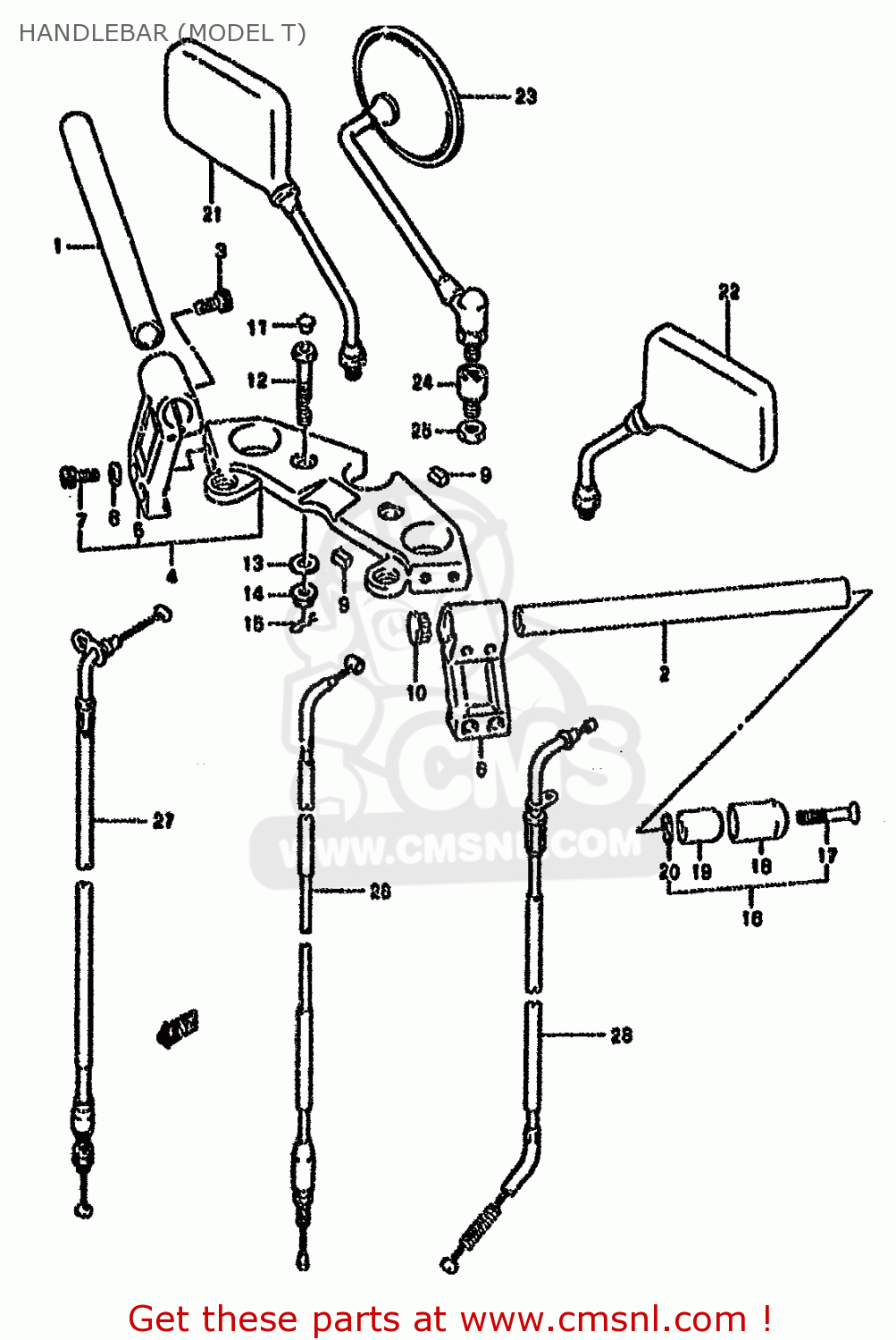

Handlebar (model t) diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

HANDLEBAR (MODEL T) GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
HANDLEBAR (MODEL T) GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
HANDLEBAR (MODEL T) GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
prices are in EUR
ref
part #
description
quantity
1
5611001D10
ref: 1
HANDLEBAR,R
5611001D10
€ 45.50
2
5615001D10
ref: 2
HANDLEBAR,L
5615001D10
€ 47.50
3
0713006253
ref: 3
BOLT,CL.COVER
0713006253
€ 3.00
4
5620001D810FP
ref: 4
HOLDER ASSY,HANDLEBAR
5620001D810FP
€ 410.50
5
5621101D800FP
ref: 5
HOLDER,HANDLEBAR,R(SILVER)
5621101D800FP
€ 83.50
6
5622101D800FP
ref: 6
HOLDER,HANDLEBAR,L(SILVER)
5622101D800FP
€ 118.00
7
0713008253
ref: 7
BOLT
0713008253
€ 3.50
8
0916408015
ref: 8
WASHER
0916408015
€ 3.00
9
5624101D00
ref: 9
CUSHION,HANDLE HOLDER
5624101D00
€ 5.50
10
5721533400
ref: 10
CAP,HANDLEBAR
5721533400
€ 4.00
11
0925006011
ref: 11
CAP(OD:11)
0925006011
€ 2.50
12
0910610055
ref: 12
BOLT(10X66)
0910610055
€ 8.00
13
0916010094
ref: 13
WASHER(10.5X30X3.2)
0916010094
€ 3.50
14
0831931106
ref: 14
NUT
€ 3.00
15
0411120208
ref: 15
PIN 20X20
0411120208
€ 1.50
16
5620031810
ref: 16
BALANCER SET,HANDLEBAR
€ 23.00
17
0212206603
ref: 17
SCREW
0212206603
€ 3.00
18
5627449310
ref: 18
CAP,HANDLE BALANCER
5627449310
€ 141.00
19
5627149310
ref: 19
BALANCER,HANDLEBAR
5627149310
€ 15.50
20
5627534401
ref: 20
SPACER,BALANCER
5627534401
€ 2.50
21-1
5650001D01
ref: 21-1
E18,E25,E39
MIRROR ASSEMBLY,REAR VIEW
5650001D01
€ 113.00
21-2
5650001D11
ref: 21-2
E22,E24
MIRROR ASSY,RE
€ 56.00
22-1
5660001D01
ref: 22-1
E18,E25,E39
MIRROR ASSEMBLY,REAR VIEW
5660001D01
€ 113.00
22-2
5660001D11
ref: 22-2
E22,E24
MIRROR ASSY,LH
5660001D11
€ 56.00
23
5650008010
ref: 23
MIRROR ASSY,RH
5650008010
€ 119.50
24
5670031001
ref: 24
CUSHION,REAR VIEW MIRROR
5670031001
€ 18.00
25
0831000107
ref: 25
NUT
0831000107
€ 2.50
26
5820001D11
ref: 26
CABLE ASSY,CLUTCH
5820001D11
€ 33.00
27
5830001D10
ref: 27
CABLE ASSY,THROTTLE
5830001D10
€ 36.00
28
5841001D10
ref: 28
CABLE COMP,STARTER
€ 30.50
28
5841001D10
ref: 28
CABLE COMP,STARTER
€ 30.50
