HEADLAMP (MODEL T)

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

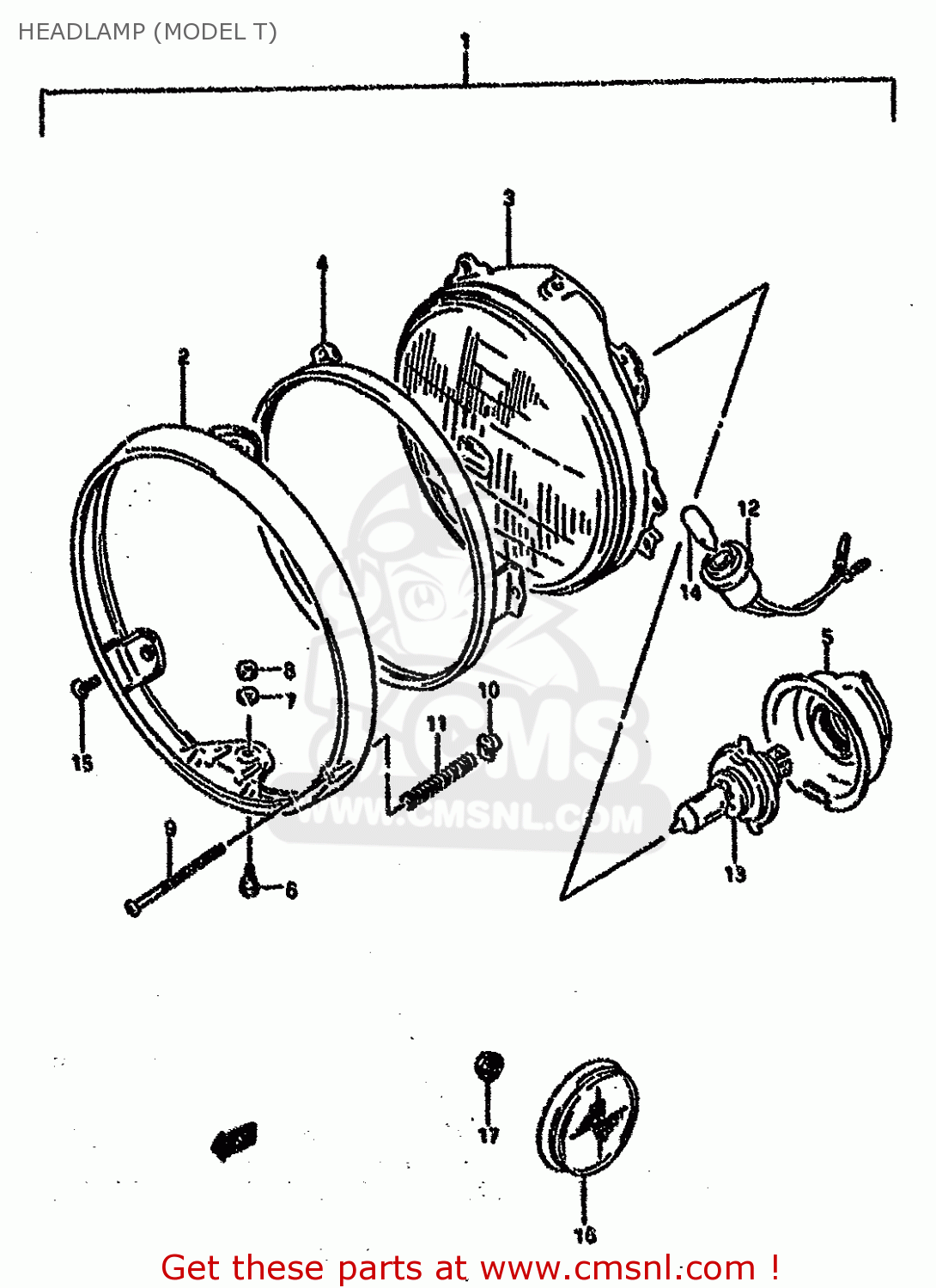

Headlamp (model t) diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

HEADLAMP (MODEL T) GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
HEADLAMP (MODEL T) GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
HEADLAMP (MODEL T) GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
prices are in EUR
ref
part #
description
quantity
1-1
3510010020999
ref: 1-1
HEADLAMP ASSY
€ 0.00
1-2
3510010051999
ref: 1-2
E4,E18,E22,E25,E34,E
HEADLAMP ASSY
€ 0.00
1-3
3510010070999
ref: 1-3
E24
HEADLAMP ASSY
€ 0.00
2
3511101D20
ref: 2
RIM,HEADLAMP
3511101D20
€ 55.50
3-1
3512110D20
ref: 3-1
LAMP UNIT
3512110D20
€ 147.00
3-2
3512110D40
ref: 3-2
E4,E18,E22,E25,E34,E
LAMP UNIT
€ 147.00
3-3
3512110030
ref: 3-3
E24
LAMP UNIT
€ 0.00
4
3512710D20
ref: 4
RING
3512710D20
€ 22.00
5
3517320A01
ref: 5
COVER,SOCKET
3517320A01
€ 14.50
6
3518115611
ref: 6
H/LAMP LENS UNIT FITING SCRE
3518115611
€ 3.00
7
0832101057
ref: 7
WASHER,LOCK
0832101057
€ 2.00
8
0831000053
ref: 8
NUT
€ 2.50
9
3515145900
ref: 9
SCREW
3515145900
€ 4.00
10
3515215611
ref: 10
NUT
3515215611
€ 3.50
11
3515431900
ref: 11
SPRING,ADJUSTING
3515431900
€ 3.50
12
3611804A00
ref: 12
SOCKET
3611804A00
€ 11.50
13
0947112060
ref: 13
BULB(12V60/55W,H4)
0947112060
€ 8.00
14
0947112063
ref: 14
BULB(12V4W)
0947112063
€ 6.00
15
0212205127
ref: 15
SCREW
0212205127
€ 2.50
16
3595014A00
ref: 16
E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
17
0831620053
ref: 17
E39
NUT
0831620053
€ 2.00
17
0831620053
ref: 17
E39
NUT
0831620053
€ 2.00
22
0212205127
ref: 22
SCREW
0212205127
€ 2.50
23
3595014A00
ref: 23
E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
24
0831620053
ref: 24
E39
NUT
0831620053
€ 2.00
