REAR MASTER CYLINDER

GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

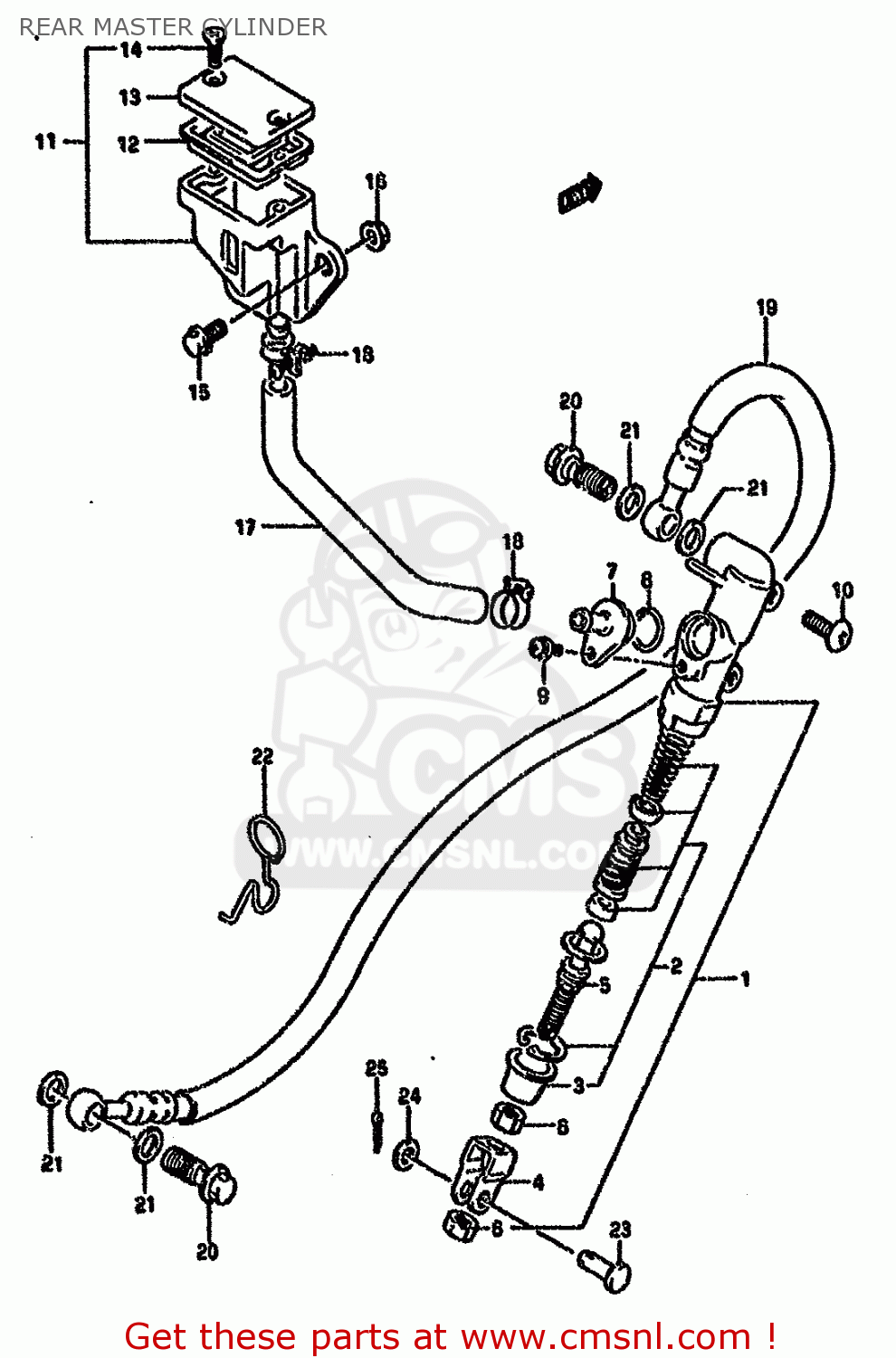

Rear master cylinder diagram GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9

REAR MASTER CYLINDER GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
REAR MASTER CYLINDER GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
REAR MASTER CYLINDER GS500E 1994 (R) (E02 E04 E18 E21 E22 E24 E25 E34 E37 E53) / P9
prices are in EUR
ref
part #
description
quantity
1
6960001D00
ref: 1
CYLINDER ASSY,RR MASTER
€ 174.50
2
6960004820
ref: 2
PISTON/CUP SET
6960004820
€ 31.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6969219A00
ref: 4
YOKE
6969219A00
€ 10.50
5
6967001D00
ref: 5
ROD,PUSH
6967001D00
€ 24.50
6-1
6969324A00
ref: 6-1
-69693-05A00
NUT
€ 1.50
6-2
6969305A00
ref: 6-2
NUT
6969305A00
€ 1.50
7
6967200A00
ref: 7
CONNECTOR
6967200A00
€ 5.50
8
6968634200
ref: 8
O RING
6968634200
€ 3.50
9
0211274123
ref: 9
SCREW
€ 2.50
10-1
0913906054
ref: 10-1
MODEL K
BOLT(6X21)
0913906054
€ 2.50
10-2
0913906056
ref: 10-2
MODEL L
SCREW(6X20)
0913906056
€ 3.00
10-3
0913906057
ref: 10-3
MODEL M/N/P/R/S/T
SCREW(6X25)
0913906057
€ 2.50
11-1
6974001D00
ref: 11-1
MODEL K/L
TANK ASSEMBLY,RESERVOIR
€ 58.00
11-2
6974001D01
ref: 11-2
MODEL M/N
TANK ASSEMBLY,RESERVOIR
€ 58.00
11-3
6974001D02
ref: 11-3
MODEL P/R/S/T
TANK ASSY,RR RESERVOIR
6974001D02
€ 58.00
12
5966704700
ref: 12
DIAPHRAGM
5966704700
€ 8.00
13-1
6966924A00
ref: 13-1
MODEL K/L
CAP
€ 12.00
13-2
6966924A01
ref: 13-2
MODEL M/N
CAP
6966924A01
€ 12.00
13-3
5966905D00
ref: 13-3
MODEL P/R/S/T
CAP
5966905D00
€ 13.50
14
6968904A00
ref: 14
SCREW
6968904A00
€ 2.00
15-1
0151706167
ref: 15-1
MODEL K/L/M/N/P
BOLT 6X16
0151706167
€ 1.50
15-2
0155006163
ref: 15-2
MODEL R/S/T
BOLT
0155006163
€ 2.50
16-1
0915906017
ref: 16-1
MODEL K/L/M/N/P
NUT
0915906017
€ 2.50
16-2
0831610063
ref: 16-2
MODEL R/S/T
NUT
0831610063
€ 2.50
17
6973101D01
ref: 17
HOSE,RESERVOIR TANK
€ 19.50
18-1
0940016302
ref: 18-1
MODEL K/L/M/N/P/R/S
CLAMP
0940016302
€ 4.50
18-2
0940113413
ref: 18-2
MODEL T
CLIP
€ 2.50
19-1
6948001D00
ref: 19-1
MODEL K
HOSE,REAR BRAKE
€ 99.00
19-2
6948001D10
ref: 19-2
MODEL L/M/N/P/R/S/T
HOSE,RR BRAKE
6948001D10
€ 99.00
20-1
0936010017
ref: 20-1
MODEL K/L/M/N/P
BOLT UNION
0936010017
€ 6.50
20-2
0936010039
ref: 20-2
MODEL R/S/T
BOLT UNION
€ 6.50
21
0916110009
ref: 21
WASHER(10X15X1.5)
0916110009
€ 2.00
22
6924301D00
ref: 22
GUIDE,RR BRAKE HOSE
€ 4.00
23
0920006037
ref: 23
PIN
0920006037
€ 5.00
24-1
0832221067
ref: 24-1
MODEL K/L/M/N/P
WASHER
0832221067
€ 2.00
24-2
0832201063
ref: 24-2
MODEL R/S/T
WASHER
0832201063
€ 2.00
25
0411120158
ref: 25
PIN
0411120158
€ 1.50
