Buy Suzuki GS Parts Online


FRONT DAMPER (MODEL K4/K5/K6)

GS500F 2004 (K4) USA (E03)

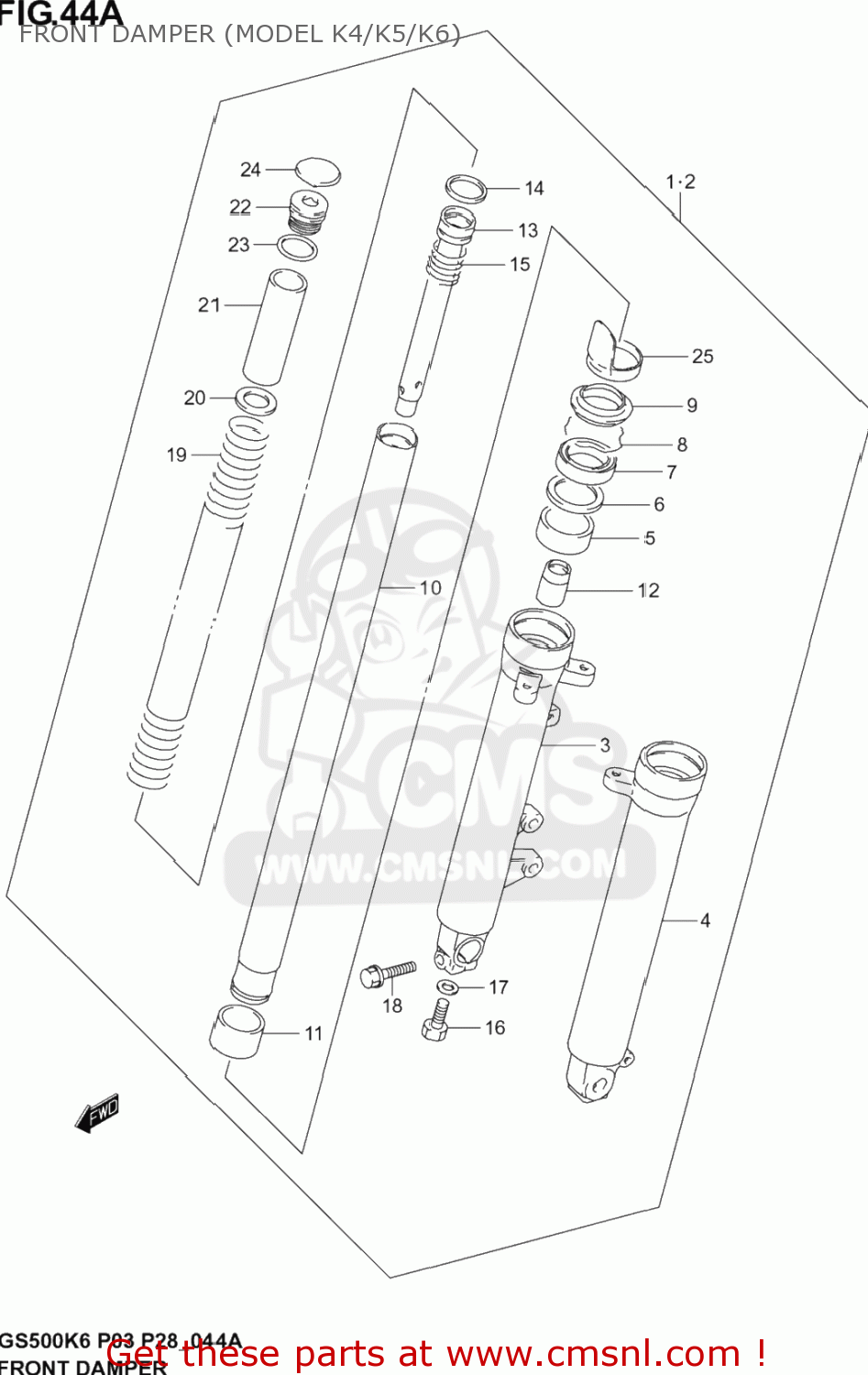

Front damper (model k4/k5/k6) diagram GS500F 2004 (K4) USA (E03)

FRONT DAMPER (MODEL K4/K5/K6) GS500F 2004 (K4) USA (E03)
FRONT DAMPER (MODEL K4/K5/K6) GS500F 2004 (K4) USA (E03)
FRONT DAMPER (MODEL K4/K5/K6) GS500F 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5110301DD0
ref: 1
DAMPER ASSY RH
€ 730.00
2
5110401DD0
ref: 2
DAMPER ASSY LH
€ 626.50
3
5113001DD0
ref: 3
TUBE, OUTER RH
€ 328.00
4
5114001DD0
ref: 4
TUBE, OUTER LH
5114001DD0
€ 298.00
5
5116701DD0
ref: 5
METAL, SLIDE
€ 10.50
6
5115801DD0
ref: 6
WASHER
€ 3.00
7
5115301DD0
ref: 7
51153-08C20
SEAL, OIL
5115301DD0
€ 16.50
8
5115601DD0
ref: 8
RING, SNAP
€ 3.50
9
5117301DD0
ref: 9
SEAL, DUST
5117301DD0
€ 16.00
10
5111001DD0
ref: 10
TUBE, INNER
5111001DD0
€ 189.00
11
5112101DD0
ref: 11
PISTON
€ 11.50
12
5119501DD0
ref: 12
PIECE, OIL LOC
€ 8.50
13
5114601DD0
ref: 13
CYLINDER
€ 43.00
14
5119601DD0
ref: 14
RING, PISTON
€ 3.00
15
5117701DD0
ref: 15
SPRING, REBOUN
€ 4.50
16
5114701DD0
ref: 16
BOLT
5114701DD0
€ 2.50
17
5114801DD0
ref: 17
GASKET (NAS)
5114801DD0
€ 5.00
18
5116601DD0
ref: 18
BOLT RH
€ 3.00
19
5117101DD0
ref: 19
SPRING, MAIN
€ 42.50
20
5117201DD0
ref: 20
WASHER, SPRING
5117201DD0
€ 4.00
21
5117601DD0
ref: 21
SPACER
€ 6.50
22
5135101DD0
ref: 22
CAP
5135101DD0
€ 27.50
23
5111701DD0
ref: 23
O RING
€ 2.00
24
5120101DD0
ref: 24
PROTECTOR
5120101DD0
€ 6.00
