HANDLEBAR (NOT FOR U.S. MARKET)
GS500F 2004 (K4) USA (E03)

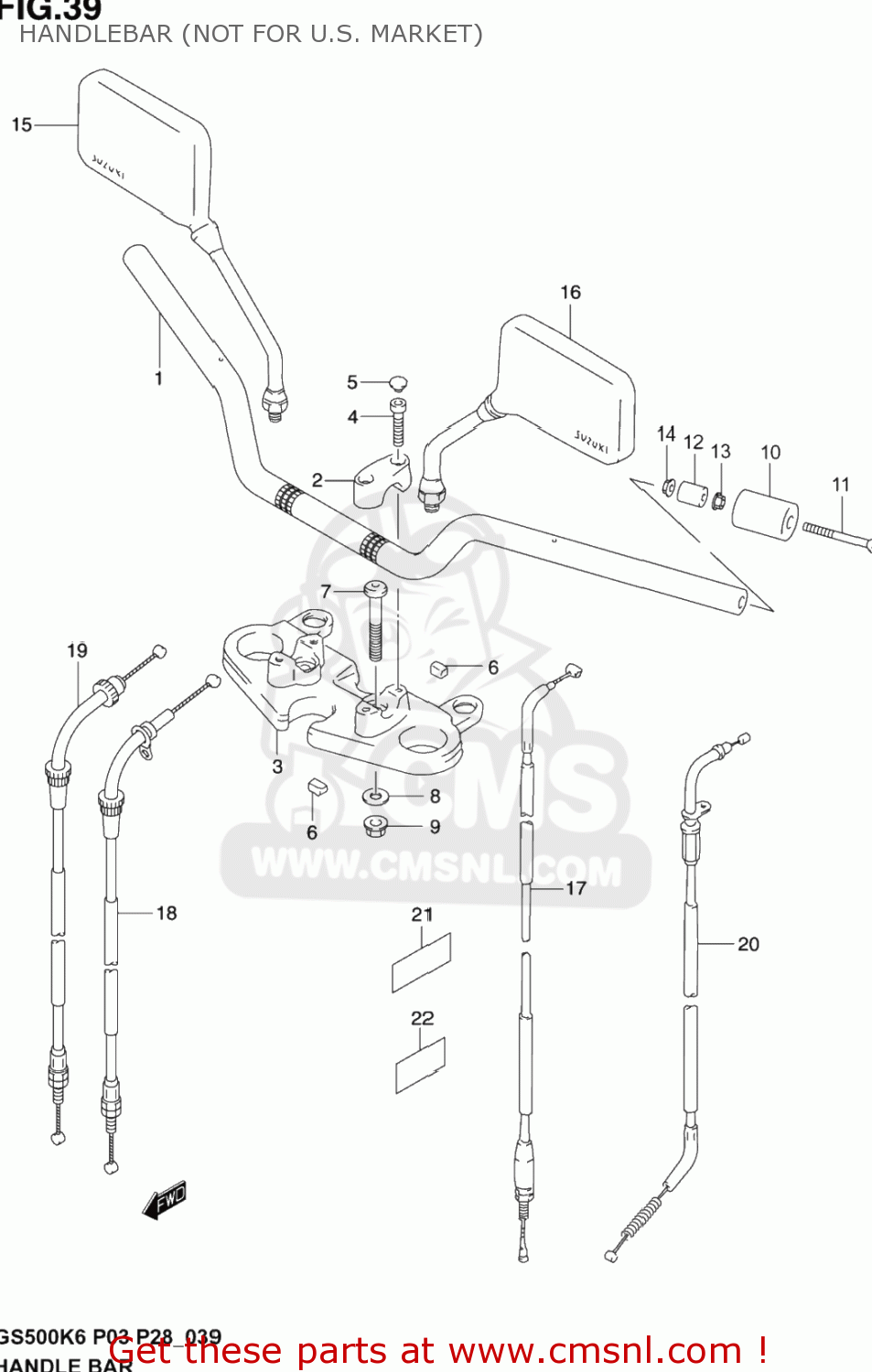

Handlebar (not for u.s. market) diagram GS500F 2004 (K4) USA (E03)
HANDLEBAR (NOT FOR U.S. MARKET) GS500F 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611101DB0
ref: 1
HANDLEBAR
€ 143.50
2
5621131F000FP
ref: 2
CLAMP,HANDLEBAR UPR
€ 21.00
3
5622101D500FP
ref: 3
HOLDER,HANDLEBAR LWR
€ 268.50
4
D710908307
ref: 4
BOLT
€ 1.50
5
0925006011
ref: 5
CAP(OD:11)
€ 2.50
6
5624101D00
ref: 6
CUSHION,HANDLE HOLDER
€ 5.50
7
0713010653
ref: 7
07130-1065B
BOLT
€ 3.50
8
D832291105
ref: 8
WASHER
€ 1.00
9
0831931108
ref: 9
NUT
€ 3.00
10
5627804F00
ref: 10
56200-01841
BALANCER,HANDLEBAR
€ 49.50
11
0212206853
ref: 11
02122-0685B
SCREW,HANDLE B
€ 2.00
12
5627244500
ref: 12
EXPANDER,HANDLE BALANCER
€ 3.00
13
0831610083
ref: 13
08316-1008B
NUT
€ 3.00
14
0915906024
ref: 14
NUT
€ 2.00
15
5650003F30
ref: 15
56500-03F31
MIRROR ASSEMBLY,REAR VIEW
€ 72.00
16
5660003F30
ref: 16
56600-03F31
MIRROR ASSEMBLY,REAR VIEW
€ 143.50
17
5820001DA0
ref: 17
CABLE ASSY,CLUTCH
€ 28.50
18
5830001DA0
ref: 18
CABLE ASSY,THROTTLE NO.1
€ 36.00
19
5830001DB0
ref: 19
CABLE ASSY,THROTTLE NO.2
€ 33.50
20
5841001D70
ref: 20
CABLE,STARTER
€ 30.00
21
94474C22D00J000
ref: 21
94474-22D00
PROTECTOR, CABLE
€ 6.50
22
72895C78A30J000
ref: 22
72895-78A30
PROTECTOR, CABLE
€ 1.50
