REAR MASTER CYLINDER (MODEL K4/K5/K6)

GS500F 2004 (K4) USA (E03)

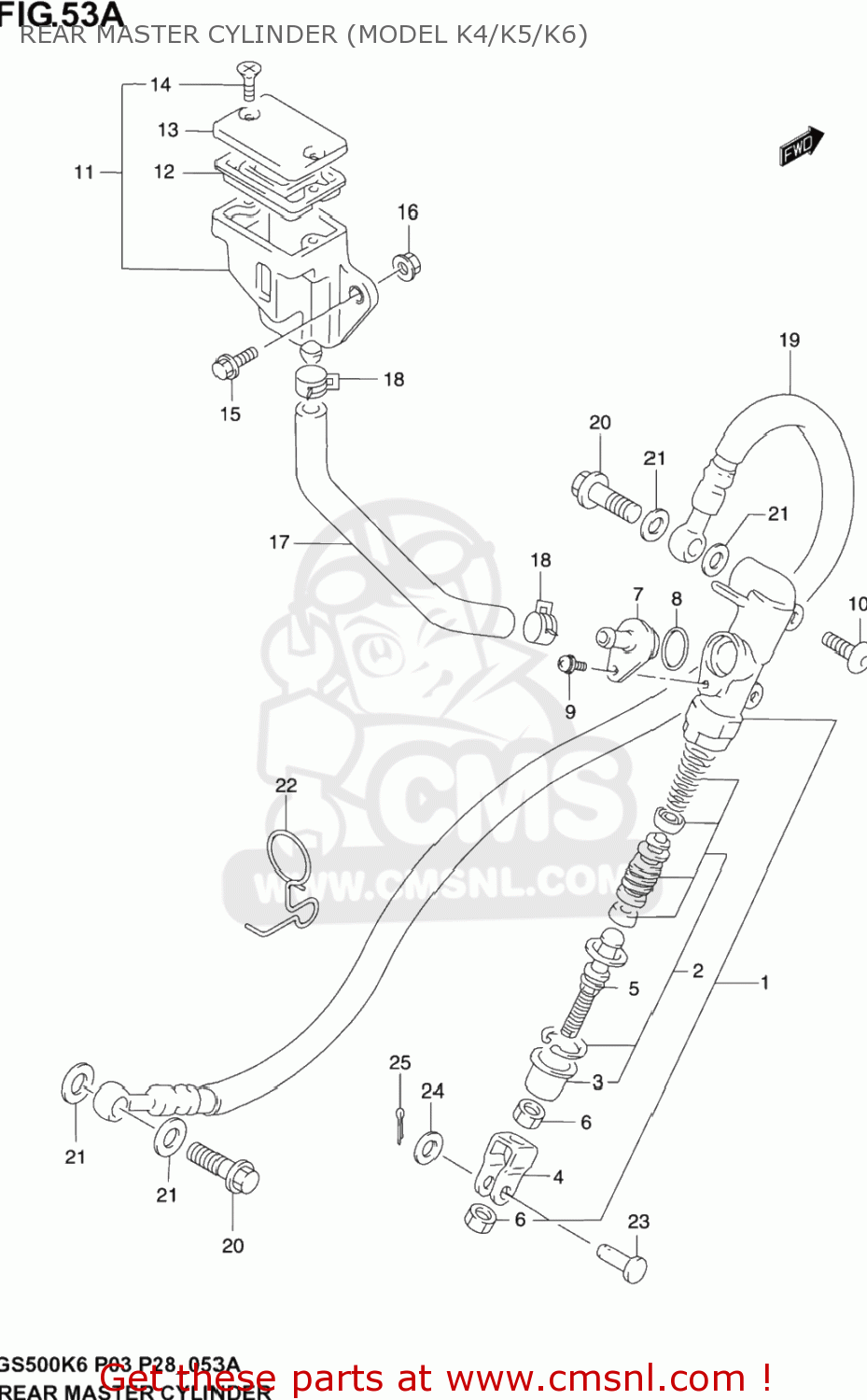

Rear master cylinder (model k4/k5/k6) diagram GS500F 2004 (K4) USA (E03)

REAR MASTER CYLINDER (MODEL K4/K5/K6) GS500F 2004 (K4) USA (E03)
REAR MASTER CYLINDER (MODEL K4/K5/K6) GS500F 2004 (K4) USA (E03)
REAR MASTER CYLINDER (MODEL K4/K5/K6) GS500F 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6960001DA0
ref: 1
CYLINDER ASS R
€ 29.50
2
696000BE00
ref: 2
PISTON/CAP SET
696000BE00
€ 23.00
3
696910BE00
ref: 3
BOOT
€ 2.00
4
696920BE00
ref: 4
YOKE
€ 3.50
5
696700BE00
ref: 5
ROD, PUSH
€ 7.00
6
696930BE00
ref: 6
NUT
€ 1.00
7
696720BE00
ref: 7
CONNECTOR
€ 0.50
8
696860BE00
ref: 8
O-RING
696860BE00
€ 1.00
9
021120BE00
ref: 9
SCREW
€ 2.50
10
0913906057
ref: 10
SCREW(6X25)
0913906057
€ 2.50
11
6974001DA0
ref: 11
TANK ASSY REAR
€ 7.50
12
596670BE00
ref: 12
DIAPHRAGM
€ 8.00
13
596690BE00
ref: 13
CAP
596690BE00
€ 7.00
14
696890BE00
ref: 14
SCREW
€ 2.00
15
D155706165
ref: 15
BOLT
€ 1.00
16
D832010065
ref: 16
NUT
D832010065
€ 1.00
17
6973101D02
ref: 17
HOSE,RESERVOIR TANK
6973101D02
€ 19.50
18
0940113417
ref: 18
CLIP
0940113417
€ 2.50
19
6948001DA0
ref: 19
HOSE,RR BRAKE
€ 99.00
20
0936010041
ref: 20
09360-10061
BOLT UNION
€ 6.50
21
09161C10009J000
ref: 21
09161-10009
WASHER
09161C10009J000
€ 2.00
22
6924301D20
ref: 22
GUIDE,RR BRAKE HOSE
€ 5.50
23
0920006037
ref: 23
09200-06068
PIN
0920006037
€ 5.00
24
D832201065
ref: 24
WASHER
€ 2.00
25
D411120158
ref: 25
PIN, COTTER
€ 3.00
