REAR COMBINATION LAMP (NOT FOR U.S. MARKET)

GS500F 2004 (K4) USA (E03)

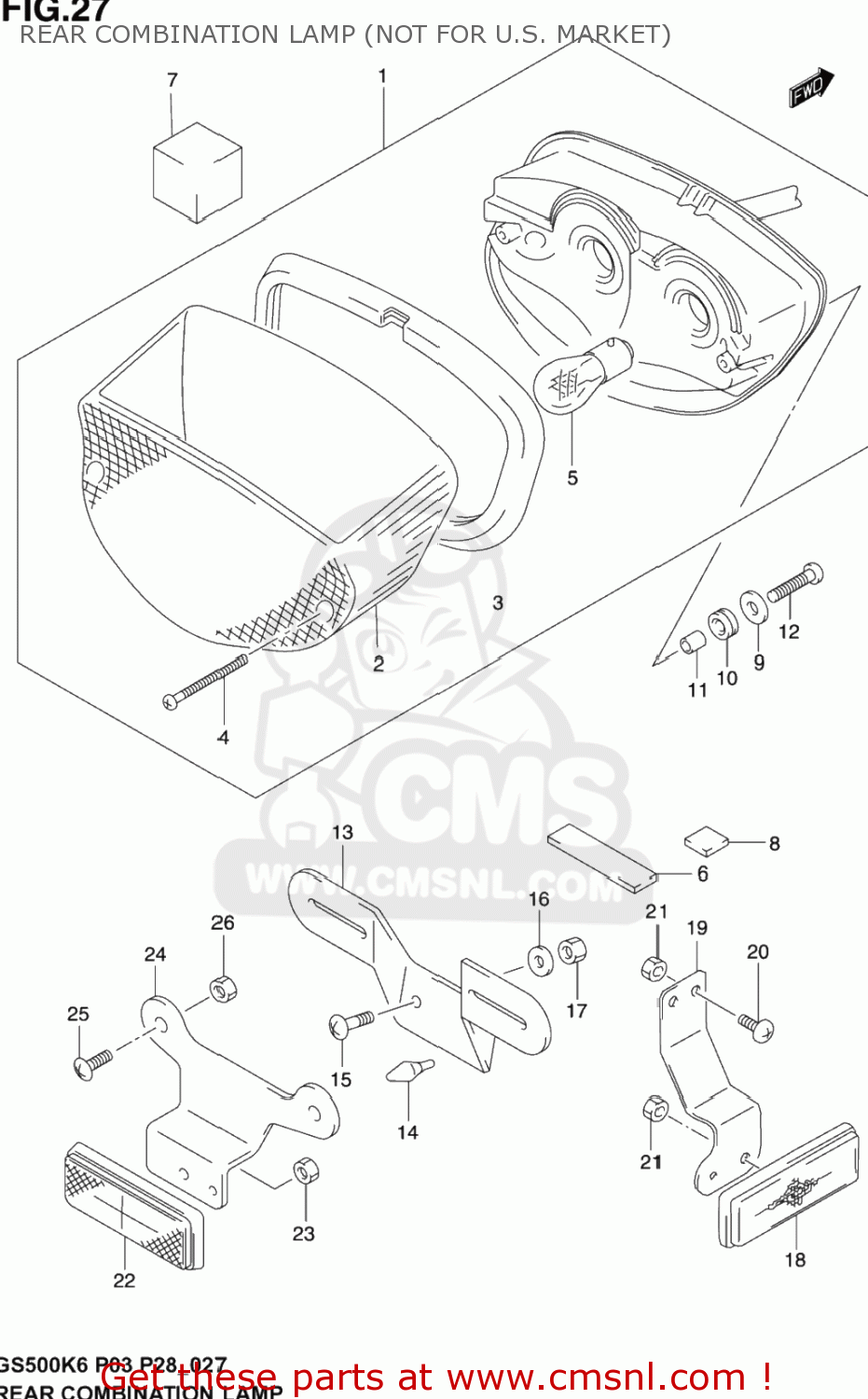

Rear combination lamp (not for u.s. market) diagram GS500F 2004 (K4) USA (E03)

REAR COMBINATION LAMP (NOT FOR U.S. MARKET) GS500F 2004 (K4) USA (E03)

REAR COMBINATION LAMP (NOT FOR U.S. MARKET) GS500F 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3571001D30
ref: 1

LAMP ASSY,RR COMBINATION

€ 0.00

2

3571201D20
ref: 2

LENS

€ 55.50

3

3571301D20
ref: 3

GASKET,LENS (NAS)

€ 10.00

4

0351104403
ref: 4

SCREW

€ 2.00

5

0947112204
ref: 5

BULB(12V32/3CP)

€ 0.00

6

33652C01D10J000
ref: 6
33652-01D10

CUSHION (80X20X10)

€ 3.00

7

33652C01D20J000
ref: 7
33652-01D20

CUSHION, UPPER (40X40X38)

€ 3.00

8

33652C09400J000
ref: 8
33652-06C00

CUSHION, LOWER (20X20X6)

33652C09400J000

€ 2.50

9

D832291065
ref: 9

WASHER

€ 3.00

10

0932009009
ref: 10

CUSHION

€ 5.00

11

0918006262
ref: 11

SPACER(6.5X9X8.5)

€ 3.00

12

D211606205
ref: 12

SCREW

€ 1.00

13

3592701D30
ref: 13

BRACKET,LICENSE PLATE

€ 0.00

14

0932106026
ref: 14

CUSHION

€ 3.50

15

D211606165
ref: 15
D1507-0616B

SCREW

€ 1.00

16

D832291065
ref: 16

WASHER

€ 3.00

17

D831000065
ref: 17
08319-31067

NUT

€ 2.50

18

3597024D60
ref: 18

REFLECTOR ASSY,RR

€ 19.50

19

3597701D11
ref: 19

BRACKET,RR SIDE REFLECTOR

€ 5.50

20

0214205123
ref: 20
02142-0512A

SCREW 5X12

€ 1.50

21

0831000053
ref: 21
08310-0005A

NUT

€ 2.50

22

3597009EF0
ref: 22
35970-07F01

REFLECTOR REAR

€ 20.50

23

D831000055
ref: 23

NUT

€ 1.00

24

3597401D00
ref: 24

BRACKET,RR RR

€ 3.50

25

D211606125
ref: 25
01550-0610B

SCHRIOEF

€ 2.50

26

D831000065
ref: 26
08319-31067

NUT

€ 2.50
