SPEEDOMETER - TACHOMETER (GS500FK4/K5/K6)

GS500F 2004 (K4) USA (E03)

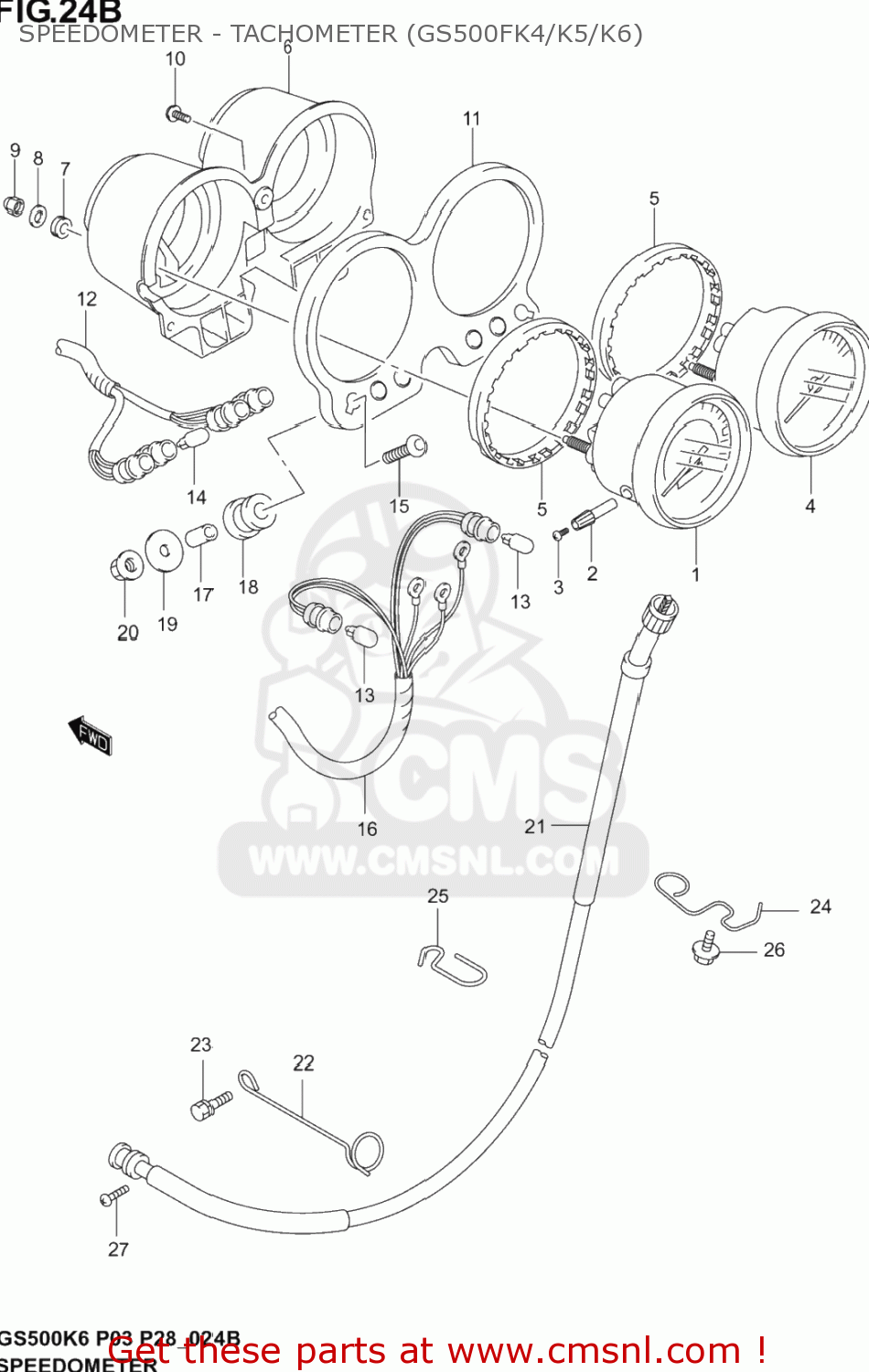

Speedometer - tachometer (gs500fk4/k5/k6) diagram GS500F 2004 (K4) USA (E03)

SPEEDOMETER - TACHOMETER (GS500FK4/K5/K6) GS500F 2004 (K4) USA (E03)

SPEEDOMETER - TACHOMETER (GS500FK4/K5/K6) GS500F 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3411001DB0
ref: 1-1

SPEEDOMETER AS

€ 110.00

1-2

3411001DA0
ref: 1-2

SPEEDOMETER

€ 121.50

2

3412401DA0
ref: 2

KNOB

€ 4.50

3

3498113A00
ref: 3
09139-02003

ROTOR,SPEED

€ 2.00

4

3421001DC0
ref: 4

TACHOMETER

€ 143.50

5

3428801DA0
ref: 5
34288-01D20

DAMPER

€ 7.00

6

3419301DC0
ref: 6

COVER

€ 34.50

7

3418901DA0
ref: 7

CUSHION

€ 6.50

8

3418145C10
ref: 8
09160-05013

WASHER

€ 1.50

9

0831311058
ref: 9
08313-1005A

NUT

€ 1.50

10

3414901D20
ref: 10
02112-3408A

SCREW

€ 2.00

11

3495001DA0
ref: 11

BRACKET METER

€ 58.50

12

3417001DC0
ref: 12

SOCK.&CORD,PIL

€ 26.50

13

0947112165
ref: 13

BULB(12V1.7W,T10)

€ 1.00

14

09471C12218J000
ref: 14
09471-12108-LC1

BULB (12V, 1.7W, T6.5)

€ 0.00

15

0910706003
ref: 15

BOLT(6X30)

€ 3.50

16

3417001DD0
ref: 16

SOCK.&CORD PIL

€ 18.00

17

0918006159
ref: 17

SPACER(6.4X9X17)

€ 3.50

18

3495631001
ref: 18

CUSHION,METER BRACKET

€ 4.50

19

0916006136
ref: 19

WASHER(6.5X28X1.6)

€ 2.50

20

D831610065
ref: 20
D8320-10065

NUT

€ 1.00

21

3491001D20
ref: 21

CABLE ASSY,SPEEDOMETER

€ 38.50

22

3493801D40E0N
ref: 22

GUIDE,CABLE NR

€ 4.50

23

D155706125
ref: 23
D1557-0612B

BOLT OIL LEVEL

€ 1.00

24

3493801D30E0N
ref: 24

GUIDE,CABLE NR

€ 3.50

25

3493801D20E0N
ref: 25

GUIDE,CABLE NR

€ 5.00

26

0211205163
ref: 26
02112-0516A

SCREW

€ 2.00
