FUEL TANK (NOT FOR U.S. MARKET)

GS500F 2004 (K4) USA (E03)

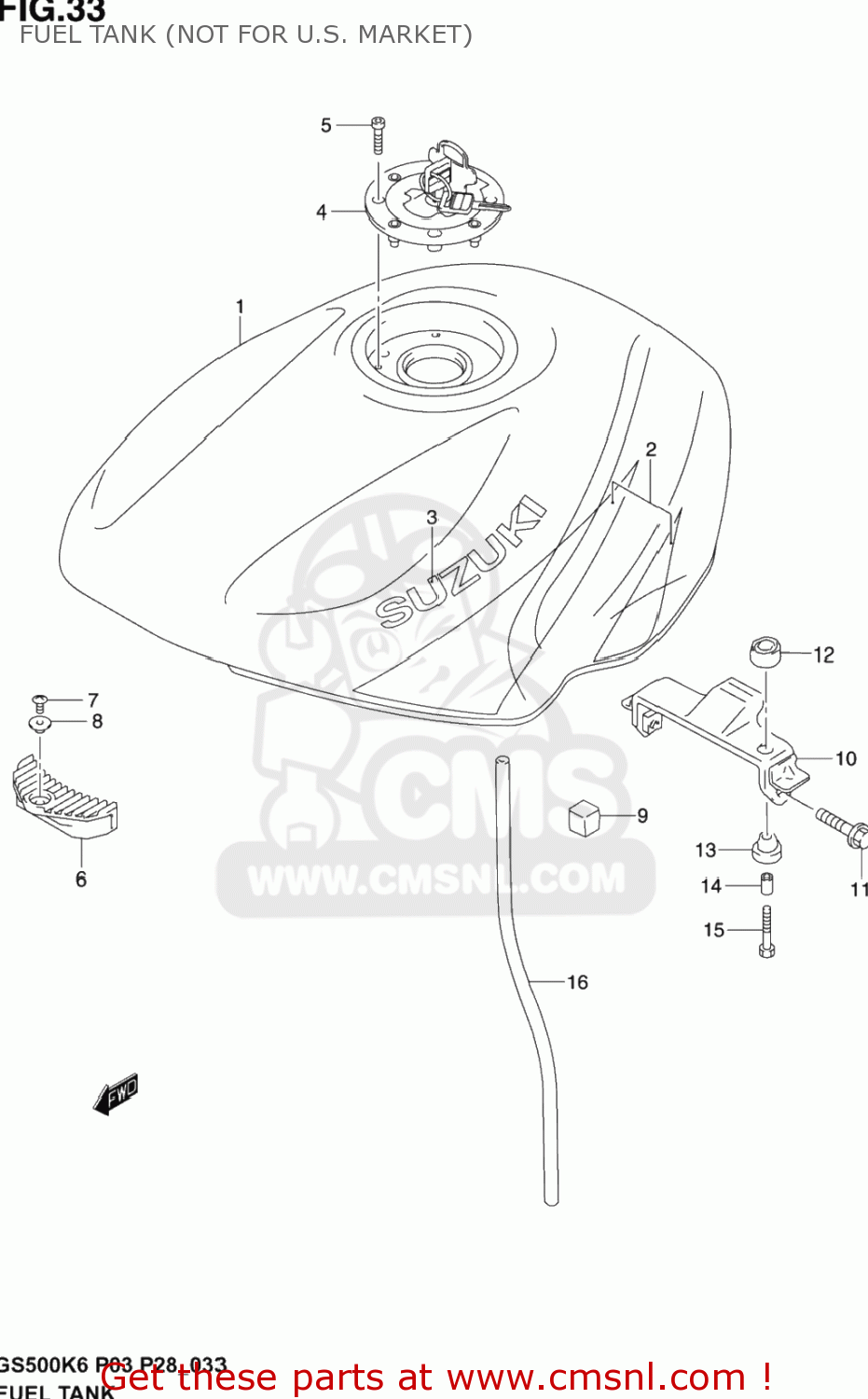

Fuel tank (not for u.s. market) diagram GS500F 2004 (K4) USA (E03)

FUEL TANK (NOT FOR U.S. MARKET) GS500F 2004 (K4) USA (E03)

FUEL TANK (NOT FOR U.S. MARKET) GS500F 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4410001DD0ZHX
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 467.00

1-2

4410001DD0YC2
ref: 1-2

TANK ASSY,FUEL(BLUE)

€ 540.50

1-3

4410001DP0ZHX
ref: 1-3

TANK ASSY, FUEL (BLACK) E33

€ 0.00

1-4

4410001DP0YC2
ref: 1-4

TANK ASSY, FUEL (BLUE) E33

€ 0.00

2-1

6811001DA0LU3
ref: 2-1

TAPE SET,FUEL TANK

€ 39.00

2-2

6811001DA0GZ8
ref: 2-2

TAPE SET,FUEL TANK

€ 61.00

2-3

6811142E200JW
ref: 2-3

EMBLEM(WHITE)

€ 15.00

4-1

4420133820
ref: 4-1

CAP SET,FUEL TANK

€ 234.50

4-2

4420033890
ref: 4-2

CAP ASSY,FUEL TANK FILLER

€ 0.00

5

0910605017
ref: 5

BOLT(5X20)

€ 3.00

6

4451127E00
ref: 6

CUSHION,FUEL TANK FR

€ 11.00

7

D211605105
ref: 7

SCREW

€ 1.00

8

0916905012
ref: 8

WASHER

€ 3.00

9

4454101D00
ref: 9

CUSHION,FUEL TANK SIDE

€ 6.00

10

445500BE00
ref: 10

BRACKET, REAR

€ 25.50

11

0155108403
ref: 11
01551-0840B

BOLT

€ 2.50

12

0932014017
ref: 12

CUSHION

€ 3.00

13

0932010038
ref: 13

CUSHION

€ 4.00

14

0918006271
ref: 14

SPACER(6.5X9X18)

€ 2.00

15

0911606172
ref: 15

BOLT(6X30)

€ 2.50

16

44423C0BE00J000
ref: 16
44423-01D00

HOSE, DRAIN

€ 0.00
