SPEEDOMETER - TACHOMETER (NOT FOR U.S. MARKET)

GS500F 2004 (K4) USA (E03)

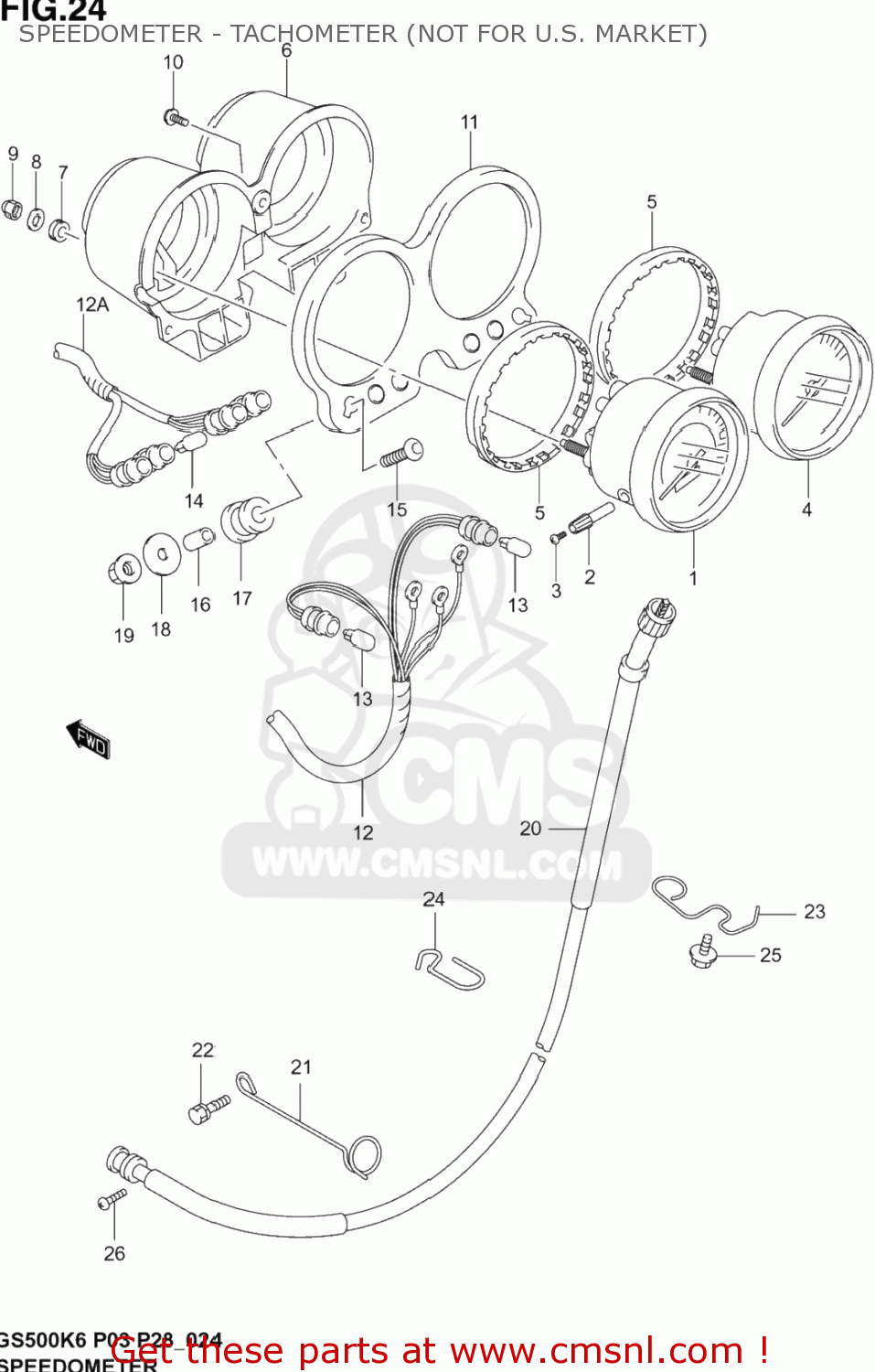

Speedometer - tachometer (not for u.s. market) diagram GS500F 2004 (K4) USA (E03)

SPEEDOMETER - TACHOMETER (NOT FOR U.S. MARKET) GS500F 2004 (K4) USA (E03)

SPEEDOMETER - TACHOMETER (NOT FOR U.S. MARKET) GS500F 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3411001DB0
ref: 1-1

SPEEDOMETER AS

€ 110.00

1-2

3411001DA0
ref: 1-2

SPEEDOMETER

€ 121.50

2

3412401DA0
ref: 2

KNOB

€ 4.50

3

0913902003
ref: 3

SCREW(2X6)

€ 2.00

4

3421001DA0
ref: 4

TACHOMETER

€ 149.50

5

3428801DA0
ref: 5
34288-01D20

DAMPER

€ 7.00

6

3419301DA0
ref: 6

COVER

€ 34.00

7

3418901D20
ref: 7

CUSHION

€ 6.00

8

0916005013
ref: 8

WASHER(5.2X16X1)

€ 1.50

9

0831310057
ref: 9
08313-1005A

NUT

€ 1.50

10

0211234083
ref: 10
02112-3408A

SCREW

€ 2.00

11

3495001DA0
ref: 11

BRACKET METER

€ 58.50

12

3417001DB0
ref: 12

SOCKET&CORD

€ 20.00

12A

3417001DA0
ref: 12A

SOCKETS&CORD

€ 18.50

13

0947112077
ref: 13

BULB(12V1.7W,T10,WB121)

€ 1.00

14

0947112165
ref: 14

BULB(12V1.7W,T10)

€ 1.00

15

0910706003
ref: 15

BOLT(6X30)

€ 3.50

16

0918006335
ref: 16

SPACER(6.5X10X16.5)

€ 3.00

17

3495631001
ref: 17

CUSHION,METER BRACKET

€ 4.50

18

0916006136
ref: 18

WASHER(6.5X28X1.6)

€ 2.50

19

D832010065
ref: 19

NUT

€ 1.00

20

3491001D10
ref: 20

CABLE ASSY,SPEEDOMETER

€ 36.50

21

3493845100
ref: 21

CLAMP,SPEEDOMETER CABLE

€ 14.50

22

D155706125
ref: 22
D1557-0612B

BOLT OIL LEVEL

€ 1.00

23

3493801D01
ref: 23

GUIDE,SPEEDOMETER CABLE NO.2

€ 11.50

24

3493801D10
ref: 24

GUIDE,SPEEDOMETER CABLE NO.3

€ 11.50

25

D155706125
ref: 25
D1557-0612B

BOLT OIL LEVEL

€ 1.00

26

0211205163
ref: 26
02112-0516A

SCREW

€ 2.00
