GS500F 2004 (K4) USA (E03)

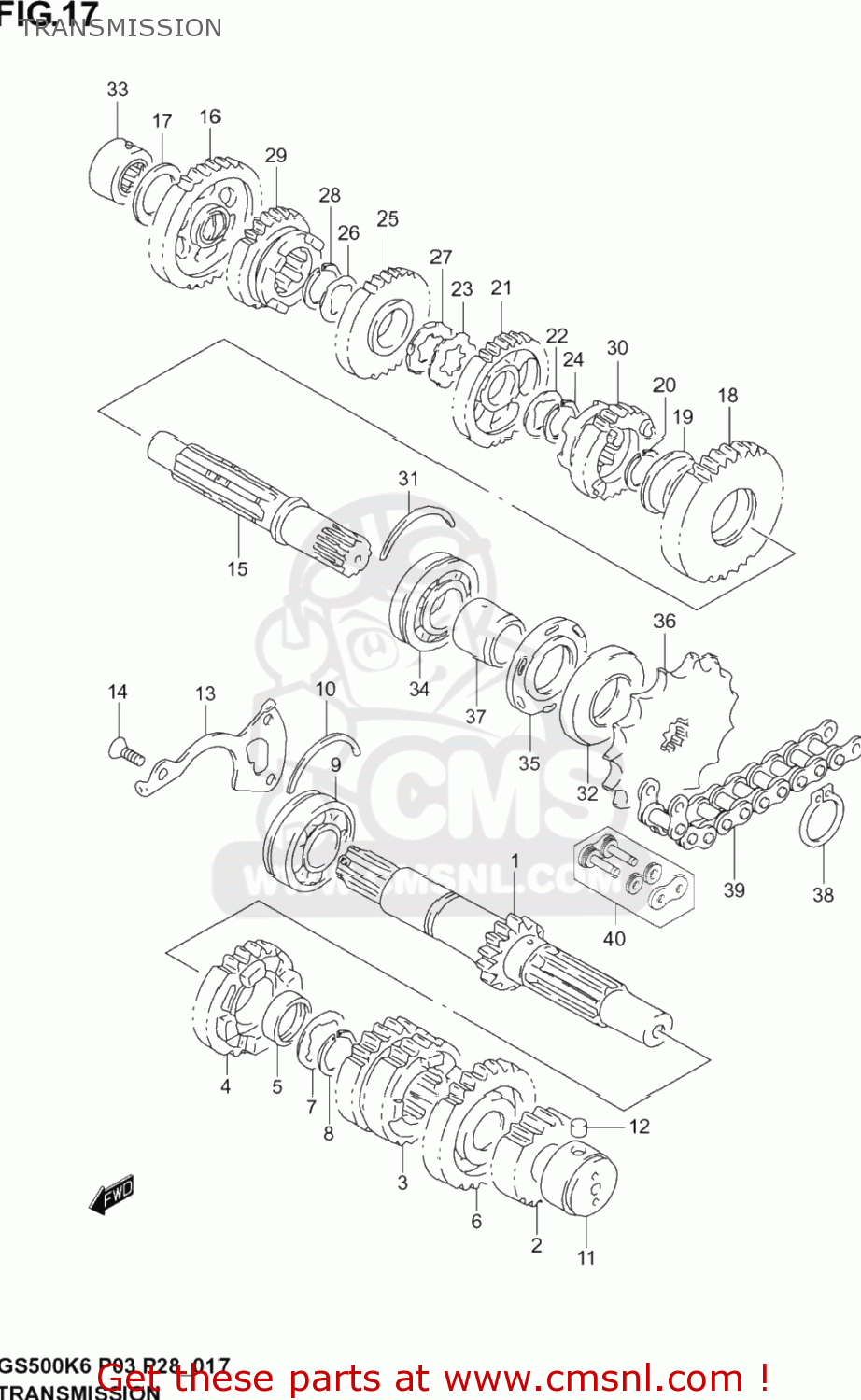

Transmission diagram GS500F 2004 (K4) USA (E03)
TRANSMISSION GS500F 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412101D01
ref: 1
SHAFT,COUNTER
€ 234.00
2
2422144001
ref: 2
GEAR,2ND DRIVE(NT:18)
€ 83.00
3
2423120F03
ref: 3
24231-20F10
GEAR,3RD & 4TH
€ 91.50
4
2425120F02
ref: 4
GEAR,5TH DRIVE(NT:26)
€ 78.50
5
2425219F00
ref: 5
BUSH
€ 9.50
6
2426001D01
ref: 6
GEAR,6TH DRIVE
€ 95.50
7
0918125167
ref: 7
SHIM(25X34X1)
€ 3.50
8
0938025010
ref: 8
CIRCLIP
€ 3.00
9
0926225051
ref: 9
09262-25105
BEARING(25X62X17)
€ 59.50
10
0939062012
ref: 10
C RING
€ 5.00
11
0926320025
ref: 11
BEARING(20X34X20)
€ 37.00
12
0422107129
ref: 12
PIN
€ 1.50
13
2474144102
ref: 13
PLATE,COUNTERSHAFT BEARING
€ 10.50
14
0912606014
ref: 14
SCREW(6X16)
€ 2.00
15
2413101D00
ref: 15
SHAFT,DRIVE
€ 207.00
16
2431044001
ref: 16
GEAR,1ST DRIVEN
€ 98.50
17
0918120251
ref: 17
SHIM(20X34X1)
€ 3.00
18
2432120F00
ref: 18
24321-20F01
GEAR,SECOND DRIVEN (NT:32)
€ 98.50
19
2432219F00
ref: 19
BUSH
€ 12.50
20
0938025010
ref: 20
CIRCLIP
€ 3.00
21
2433144003
ref: 21
GEAR,3RD DRIVEN
€ 89.50
22
0916725012
ref: 22
WASHER,LOCK
€ 3.50
23
0916725013
ref: 23
WASHER,LOCK
€ 2.50
24
0938025010
ref: 24
CIRCLIP
€ 3.00
25
2434144003
ref: 25
GEAR,4TH DRIVEN
€ 82.50
26
0916725012
ref: 26
WASHER,LOCK
€ 3.50
27
0916925001
ref: 27
WASHER
€ 2.00
28
0938025010
ref: 28
CIRCLIP
€ 3.00
29
2435144001
ref: 29
GEAR,5TH DRIVEN(NT:25)
€ 108.00
30
2436144010
ref: 30
GEAR,6TH DRIVEN(NT:23)
€ 121.00
31
0939062012
ref: 31
C RING
€ 5.00
32
0928332015
ref: 32
SEAL,OIL(32X62X7)
€ 15.50
33
0926320027
ref: 33
BEARING(20X34X17)
€ 34.00
34
0926225065
ref: 34
09262-25105
BALL BEARING 25X62X17
€ 59.50
35
0928232002
ref: 35
SEAL,OIL(32X62X5.5)
€ 11.50
36
2751101D01
ref: 36
SPROCKET,ENGINE(16T)
€ 27.50
37
2753101D10
ref: 37
SPACER,ENGINE SPROCKET
€ 20.00
38
0833131256
ref: 38
08331-3125A
CIRCLIP
€ 2.00
39
27600C01C10J110
ref: 39
27600-01C10-110
CHAIN, DRIVE (DID520VM, 110LE
€ 80.50
40
27620C01C10J000
ref: 40
27620-01C10
JOINSET, CHAIN
€ 5.50
