WIRING HARNESS (2) (NOT FOR U.S. MARKET)

GS500F 2004 (K4) USA (E03)

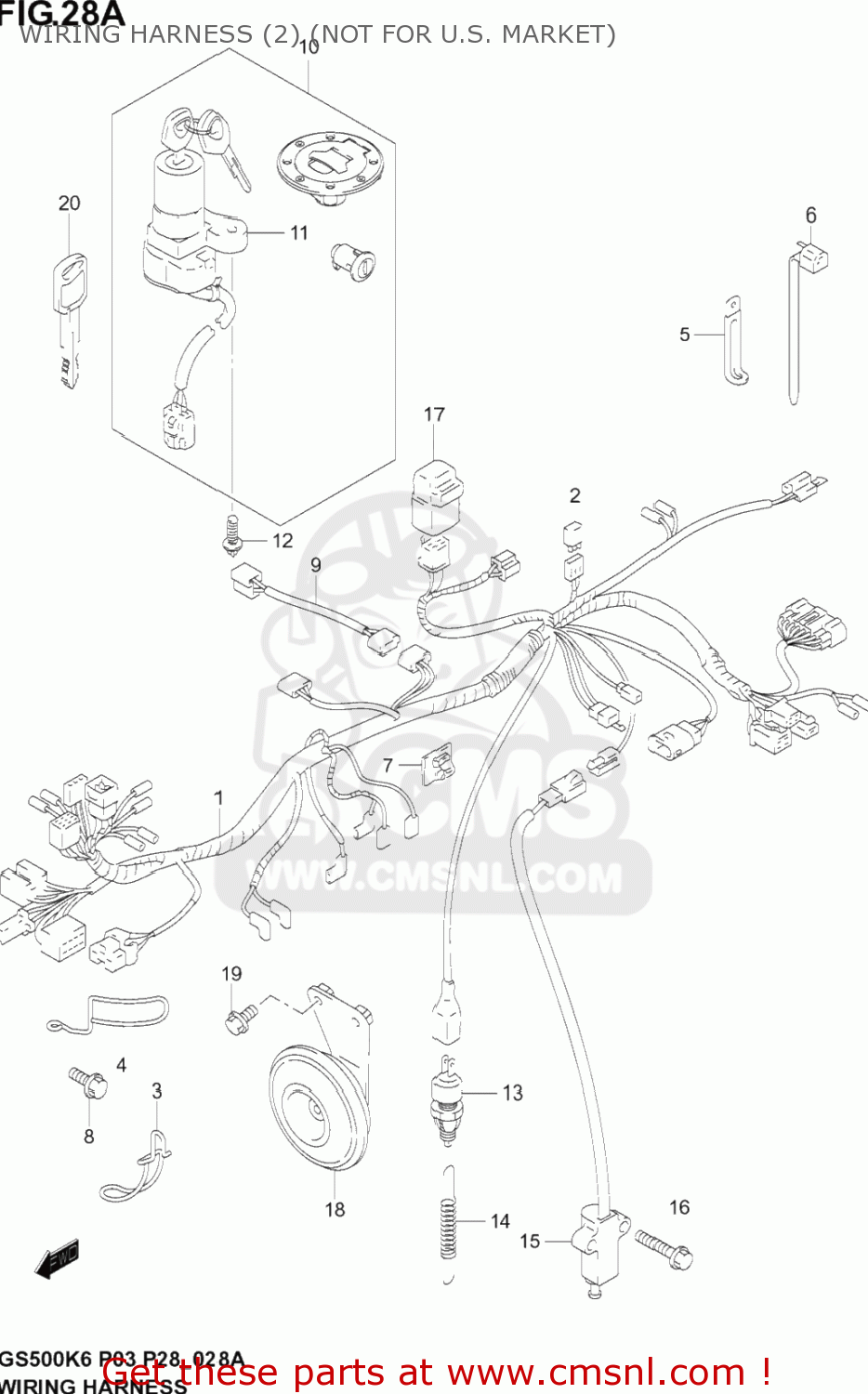

Wiring harness (2) (not for u.s. market) diagram GS500F 2004 (K4) USA (E03)

WIRING HARNESS (2) (NOT FOR U.S. MARKET) GS500F 2004 (K4) USA (E03)

WIRING HARNESS (2) (NOT FOR U.S. MARKET) GS500F 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

366100BEK0
ref: 1-1

HARNESS, WIRING

€ 0.00

1-2

36610C0BEP0J000
ref: 1-2

HARNESS, WIRING

€ 158.50

2

3661102E01
ref: 2

DIODE

€ 11.50

3

3661101D00
ref: 3

PROTECTOR

€ 11.50

4

3661101D10
ref: 4

PROTECTOR

€ 11.50

5-1

0940406429
ref: 5-1

CLAMP(L:45)

€ 2.50

5-2

0940406431
ref: 5-2
09404-06432

CLAMP(L:65)

€ 2.50

5-3

0940406434
ref: 5-3

CLAMP(L:80 T:1.0)

€ 3.00

5-4

0940408419
ref: 5-4

CLAMP(L:80)

€ 2.00

6-1

D943601425
ref: 6-1

CLAMP

€ 0.50

6-2

D944801885
ref: 6-2
D9448-02875

CLAMP

€ 1.00

6-3

0940719401
ref: 6-3

CLAMP(L:190)

€ 2.00

7

0940306310
ref: 7

CLAMP

€ 3.00

8

D155706165
ref: 8

BOLT

€ 1.00

9

3685201D40
ref: 9

WIRE,AIR SOLENOID

€ 10.00

10

3700001870
ref: 10

LOCK SET

€ 439.50

11

3710001D40
ref: 11

LOCK ASSY,STEERING

€ 107.50

12

0913906026
ref: 12

SCREW(6X18)

€ 2.50

13

3774024A00
ref: 13

SWITCH ASSY,STOP LAMP

€ 20.50

14

0944306042
ref: 14

SPRING

€ 3.00

15

3784026D00
ref: 15
37840-26X50

SWITCH ASSY,SI

€ 100.50

16

D155706305
ref: 16

BOLT

€ 1.00

17

3874024B00
ref: 17
38740-24X50

RELAY ASSEMBLY

€ 37.50

18

38500C01D20J000
ref: 18
38500-01D10

HORN ASSY

€ 19.00

19

D155706125
ref: 19
D1557-0612B

BOLT OIL LEVEL

€ 1.00

20

3714633E00
ref: 20

KEY,BLANK

€ 13.00
