FRONT MASTER CYLINDER (NOT FOR U.S. MARKET)

GS500F 2004 (K4) USA (E03)

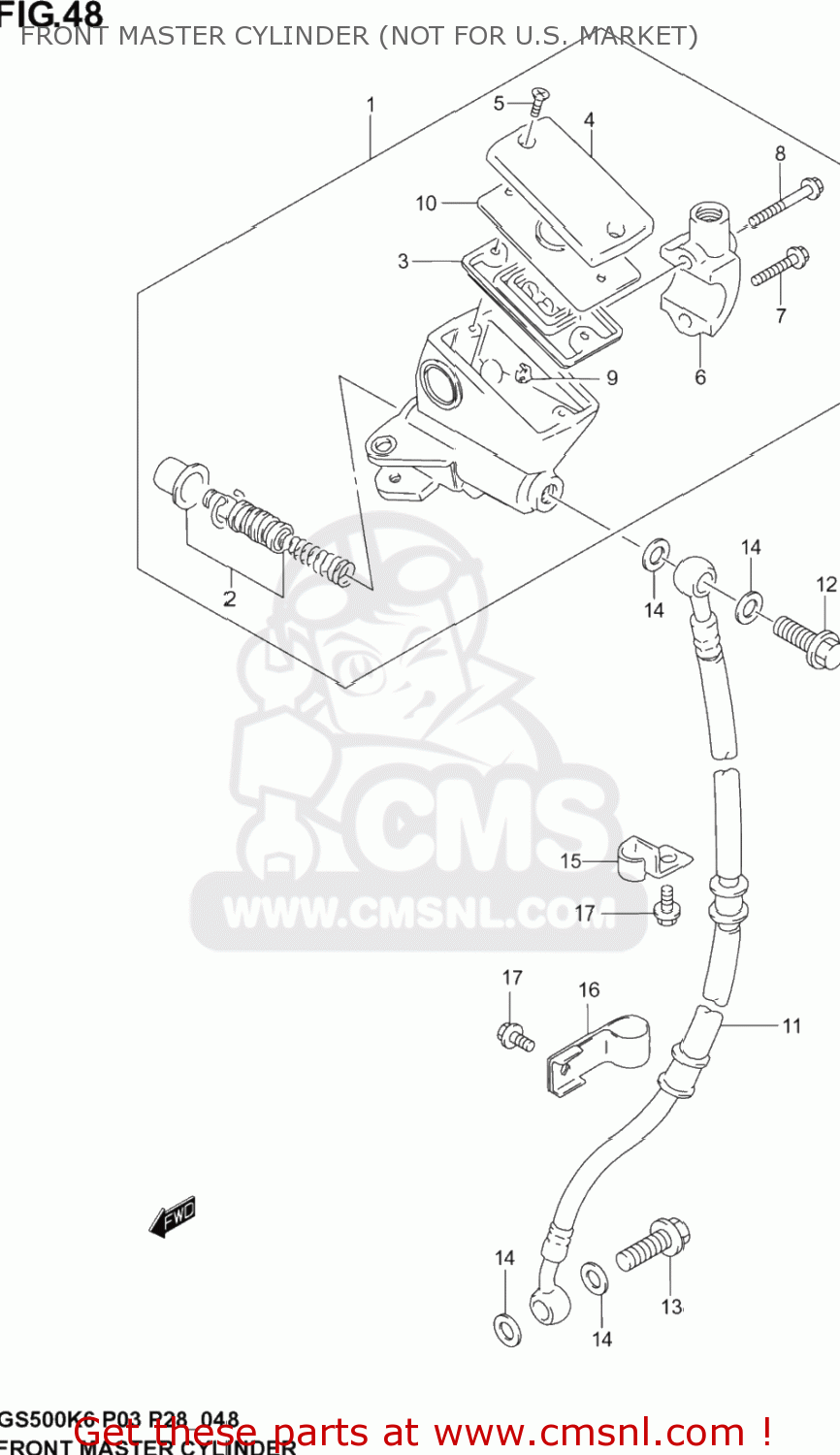

Front master cylinder (not for u.s. market) diagram GS500F 2004 (K4) USA (E03)

FRONT MASTER CYLINDER (NOT FOR U.S. MARKET) GS500F 2004 (K4) USA (E03)

FRONT MASTER CYLINDER (NOT FOR U.S. MARKET) GS500F 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

596000AEA0
ref: 1

CYLINDER ASSY

€ 241.00

2

596000AE00
ref: 2

PISTON/CUP SET

€ 54.00

3

596670AE00
ref: 3

DIAPHRAGM

€ 8.50

4

596690AE01
ref: 4

CAP

€ 30.00

5

6968949300
ref: 5

SCREW

€ 1.50

6

596710AE01
ref: 6

HOLDER

€ 14.50

7

D154706255
ref: 7

BOLT

€ 3.00

8

596750AE00
ref: 8
59675-19C10

BOLT UPPER

€ 4.00

9

5966435E50
ref: 9
59664-02E10

PROTECTOR

€ 1.00

10

596680AE00
ref: 10

PLATE

€ 8.00

11

5948001DA0
ref: 11

HOSE, FRONT BR

€ 61.50

12

0936010041
ref: 12
09360-10061

BOLT UNION

€ 6.50

13

0936010042
ref: 13
09360-10062

BOLT UNION

€ 5.00

14

09161C10009J000
ref: 14
09161-10009

WASHER

09161C10009J000

€ 2.00

15

5926801D01
ref: 15

CLAMP,FR BRAKE HOSE

€ 8.00

16

5926845D00
ref: 16

CLAMP,FR BRAKE HOSE NO.2

€ 9.00

17

D155706125
ref: 17
D1557-0612B

BOLT OIL LEVEL

€ 1.00
