REAR COMBINATION LAMP (MODEL K4/K5/K6)
GS500F 2004 (K4) USA (E03)

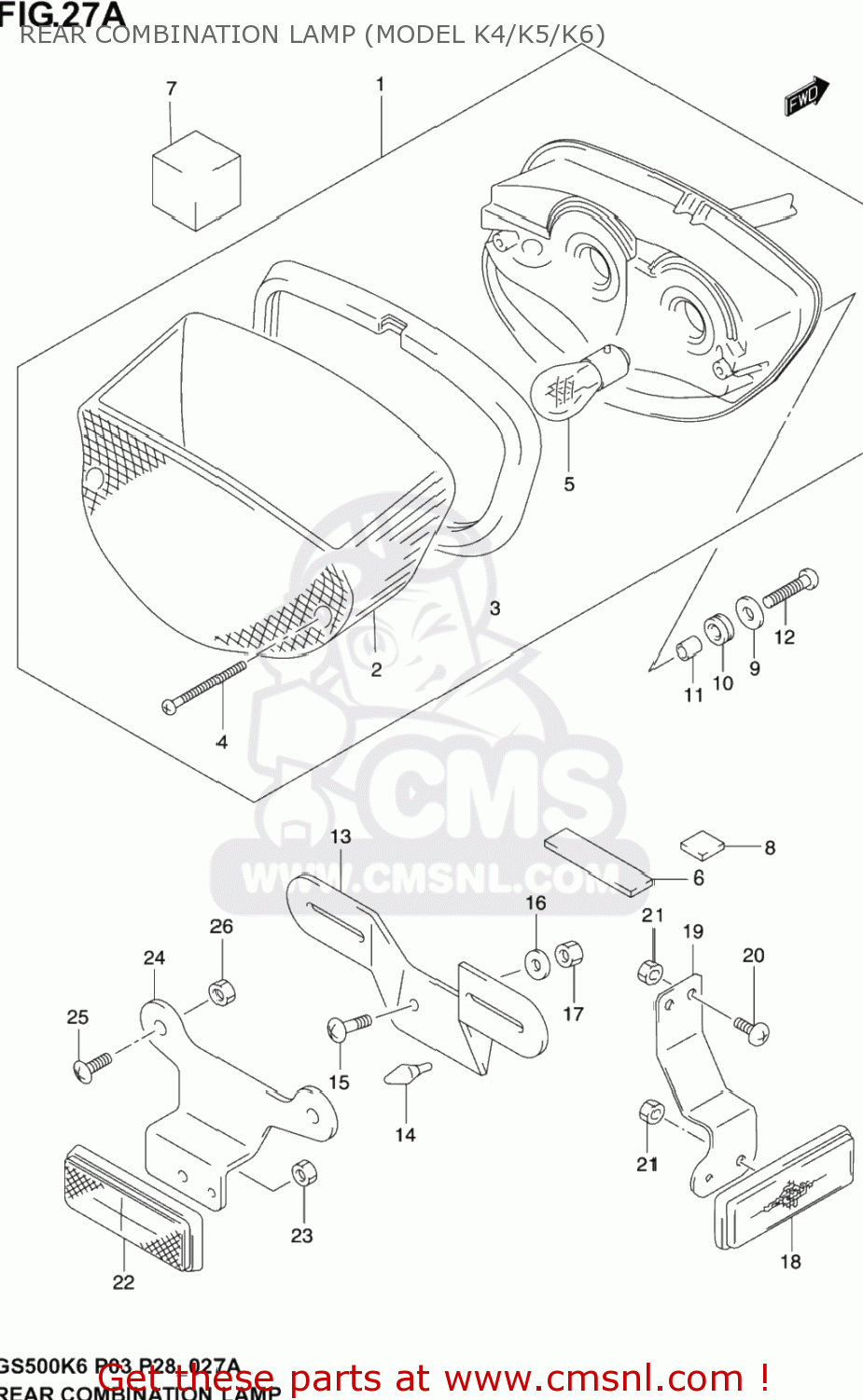

Rear combination lamp (model k4/k5/k6) diagram GS500F 2004 (K4) USA (E03)
REAR COMBINATION LAMP (MODEL K4/K5/K6) GS500F 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571001D30
ref: 1
LAMP ASSY,RR COMBINATION
€ 0.00
2
3571201D20
ref: 2
LENS
€ 55.50
3
3571301D20
ref: 3
GASKET,LENS (NAS)
€ 10.00
4
0351104403
ref: 4
SCREW
€ 2.00
5
0947112204
ref: 5
BULB(12V32/3CP)
€ 0.00
6
33652C01D10J000
ref: 6
33652-01D10
CUSHION (80X20X10)
€ 3.00
7
33652C01D20J000
ref: 7
33652-01D20
CUSHION, UPPER (40X40X38)
€ 3.00
8
33652C09400J000
ref: 8
33652-06C00
CUSHION, LOWER (20X20X6)
€ 2.50
9
D832291065
ref: 9
WASHER
€ 3.00
10
0932009009
ref: 10
CUSHION
€ 5.00
11
0918006262
ref: 11
SPACER(6.5X9X8.5)
€ 3.00
12
D211606205
ref: 12
SCREW
€ 1.00
13
3592701D30
ref: 13
BRACKET,LICENSE PLATE
€ 0.00
14
0932106026
ref: 14
CUSHION
€ 3.50
15
D211606165
ref: 15
D1507-0616B
SCREW
€ 1.00
16
D832291065
ref: 16
WASHER
€ 3.00
17
D831000065
ref: 17
08319-31067
NUT
€ 2.50
18
3597024D60
ref: 18
REFLECTOR ASSY,RR
€ 19.50
19
3597701D11
ref: 19
BRACKET,RR SIDE REFLECTOR
€ 5.50
20
0214205123
ref: 20
02142-0512A
SCREW 5X12
€ 1.50
21
0831000053
ref: 21
08310-0005A
NUT
€ 2.50
22
3597009EF0
ref: 22
35970-07F01
REFLECTOR REAR
€ 20.50
23
D831000055
ref: 23
NUT
€ 1.00
24
3597401D00
ref: 24
BRACKET,RR RR
€ 3.50
25
D211606125
ref: 25
01550-0610B
SCHRIOEF
€ 2.50
26
D831000065
ref: 26
08319-31067
NUT
€ 2.50
